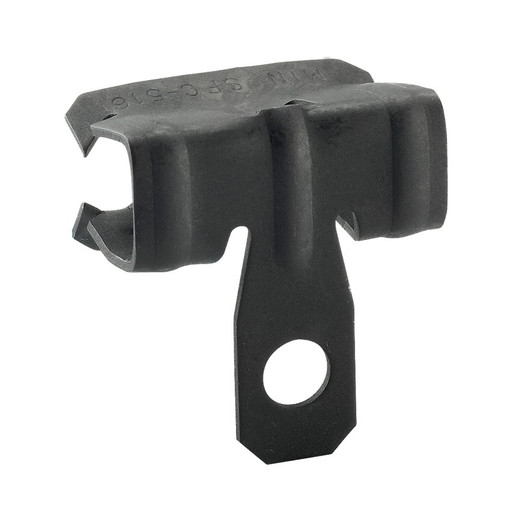

Panduit P4H24 Hammer-On Steel Beam Clamp

Panduit P4H24 StrongHold™ Beam Clamp

The Panduit P4H24 StrongHold™ beam clamp delivers tool-free overhead support for wire bundles, S-hooks, J-hooks, straps, and chain assemblies in commercial security, datacenter, and industrial installations. Designed for I-beam and C-channel flanges ranging from 1/8" to 1/4" thick, this hammer-on clamp eliminates the need for drilling, threading, or welding—critical when working in occupied spaces, around fire-rated assemblies, or on rental property where structural modification isn't permitted. The black powder-coated steel body handles the mechanical loads typical of plenum cable runs, overhead conduit drops, and equipment-hanger assemblies while maintaining RoHS compliance for spec-sensitive projects.

Key Features

• Hammer-on installation—no drilling, tapping, or beam prep required
• Fits 1/8" to 1/4" flange thickness (compatible with standard structural steel I-beams, wide-flange beams, and C-channels)
• Clearance hole accepts wire hangers, S-hooks, strap assemblies, and chain drops
• Powder-coated steel construction for corrosion resistance in mechanical rooms and above-ceiling environments
• RoHS compliant for projects requiring hazardous-substance documentation
• 100-unit contractor pack (600 per carton) for multi-floor or campus-wide deployments

The hammer-on design uses a spring-steel clip mechanism that wedges into the beam flange when struck with a standard framing hammer—no special tools, no access to the top flange, and no risk of shearing threads during seismic events or building settling. Once seated, the clamp resists vertical and lateral movement without marring the beam coating, a key consideration in retrofit installs where the building engineer prohibits penetrations or surface damage. The 1/8" to 1/4" flange range covers W-series wide-flange beams (W8, W10, W12 common in commercial construction), standard C-channels, and most mezzanine structural members. The clearance hole diameter accommodates 1/4" threaded rod, #12 S-hooks, and standard cable-support J-hooks, giving you flexibility to hang anything from Cat6A bundle trapeze systems to 3/4" EMT conduit drops using threaded rod and beam clamps as the anchor point.

Use the P4H24 in security control rooms for overhead wire management (keeping cable bundles off the floor and away from foot traffic), in datacenter hot/cold aisles for structured cable-tray support, in warehouse mezzanines for IP camera PTZ pendant mounts, and in parking structures where you need corrosion-resistant hardware for conduit and junction-box hangers. The black finish blends with painted structural steel in finished spaces; pair with black-coated threaded rod and J-hooks for a cohesive look in open-ceiling retail or industrial-chic office environments. Because the clamp doesn't require access to both sides of the flange, you can install it on beams tight against walls, in joist bays, or where the top flange is inaccessible due to decking or fireproofing spray. Common deployments: overhead pathways for access-control wiring in warehouses, support points for security-camera pendant tubes in atriums, and hanger assemblies for fiber-optic cable trays in co-location spaces.

Panduit ships the P4H24 in 100-unit contractor packs (UPC 07498363846), with 600 clamps per master carton for job-site logistics and bulk pricing on multi-building projects. RoHS compliance and the absence of cadmium or hexavalent chromium coatings make this clamp suitable for LEED documentation and California Title 24 projects. The StrongHold™ product line—spanning beam clamps, conduit hangers, and cable-tray supports—is engineered for integrators who need reliable overhead attachment points without the labor cost, permit delays, or structural-engineering sign-off that comes with welded or drilled anchors. When you're running 500 feet of overhead cable tray and every penetration adds ten minutes and a building-department inspection, the P4H24's hammer-on method turns a two-person, half-day task into a solo, two-hour job.
