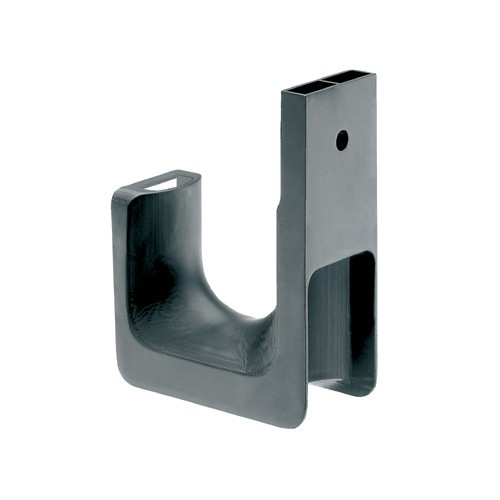

Panduit JP75W-L20 StrongHold J-Hook 50-Pack

Panduit JP75W-L20 StrongHold J-Hook Cable Support

The Panduit JP75W-L20 is a wall-mounted J-hook cable support engineered for high-performance structured cabling in plenum and air handling environments. Part of the StrongHold J-Pro series, this support features a patented geometry that enforces a full 1-inch (25.4 mm) bend radius control in both vertical and horizontal planes—eliminating cable pinch points that degrade Category 6A, fiber, and low-voltage performance. Molded from black polyamide 6-6 (nylon) and UL listed for air handling spaces, the JP75W-L20 ships in economical 50-unit packages for data center, enterprise campus, and commercial installation projects where code compliance and cable integrity are non-negotiable.

Key Features

• Patented 1" (25.4 mm) bend radius control prevents cable kinking and performance loss on Cat 6A, fiber, and multi-conductor bundles
• UL and cULus listed for use in air handling spaces; RoHS compliant for environmentally sensitive installations
• Polyamide 6-6 construction delivers high tensile strength, chemical resistance, and flame retardancy in plenum environments
• Smooth bearing surfaces eliminate cable jacket abrasion during installation and thermal expansion cycles
• Wall-mount design requires single 1/4" (M6) fastener (user-supplied); compatible with masonry anchors, timber joists, and steel channel
• 1.8" (45.7 mm) throat width accommodates cable bundles up to 19 mm outside diameter
• Bulk 50-pack packaging reduces per-drop cost on pathway builds and simplifies inventory for repeat installations

The StrongHold J-Pro geometry addresses a chronic problem in structured cabling: installers threading cables through traditional J-hooks often violate minimum bend radius specs at the hook lip, causing attenuation spikes, return loss failures, and fiber macrobending. Panduit's design incorporates a radiused throat and gradual transition angles that guide cables through the full 90° turn without exceeding ANSI/TIA-568 or ISO/IEC 11801 bend limits. The polyamide 6-6 formulation resists UV degradation, hydraulic oils, and cleaning solvents common in industrial and data center environments, while maintaining a UL 94 V-0 flame rating for plenum applications. Each hook supports bundles up to 19 mm diameter—roughly equivalent to twelve Cat 6A cables or a 144-fiber trunk—and the black finish matches standard cable jacket colors for a clean aesthetic in exposed-ceiling installations.

Typical deployments include horizontal pathways in office build-outs, vertical cable management in telecommunications rooms, and overhead routing in data centers where cable density and airflow management dictate structured support every 4–5 feet per TIA-569 guidelines. The wall-mount configuration works with threaded rod hangers, trapeze racks, and ladder-tray systems; a single 1/4-inch fastener through the integrated mounting tab provides pull-out resistance exceeding 50 pounds when properly anchored into concrete, wood, or steel substrates. Installers appreciate the snap-on installation—cables drop into the open throat without threading—and the smooth interior surfaces prevent jacket damage during adds-moves-changes. The JP75W-L20 cross-references to competitors' CAT12, CAT16HP, and ECAT12 series, offering equivalent or superior performance with the added assurance of UL listing and Panduit's global supply consistency.

For integrators managing multi-building campus networks, data center retrofits, or commercial tenant improvements where inspector sign-off depends on listed pathway components, the JP75W-L20 delivers code-compliant cable support with engineered bend protection that preserves the transmission performance you've already paid for in premium copper and fiber. The 50-unit pack aligns with typical floor-by-floor material staging, and the part number's direct correlation to Panduit's broader StrongHold ecosystem simplifies specification across projects.
