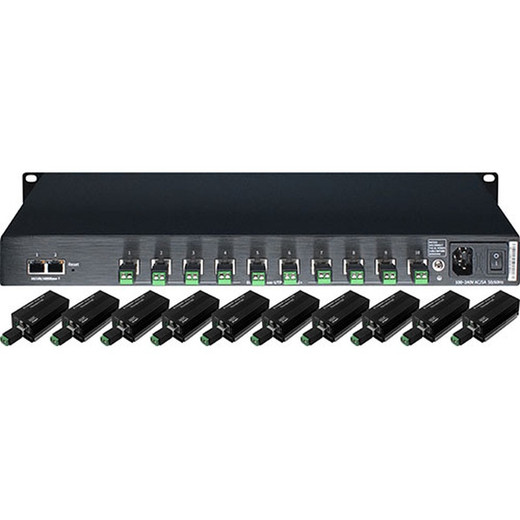

Aiphone IPW-10VC 10-STN 2-WIRE Adptr

Aiphone IPW-10VC 10-Station 2-Wire Adapter

Overview

The Aiphone IPW-10VC is a rack-mount Cat-5e/6 to 2-wire converter that bridges modern twisted-pair cabling infrastructure with legacy Aiphone intercom systems. This adapter expands the reach and capacity of existing 2-wire installations by converting 10 UTP ports into manageable LAN connectivity, making it the right choice when you're retrofitting older Aiphone networks into buildings where Cat-5e/6 is already run or when you need to extend station coverage beyond typical 2-wire distance limits.

Key Features

• 10 UTP Ports (RJ45): Converts 10 twisted-pair connections from Cat-5e or Cat-6 cabling into usable Aiphone endpoints. This means you can re-use existing cabling runs instead of pulling new 2-wire, saving labor and disruption in retrofit scenarios.
• Video Station Range up to 500 feet: Supports video intercom calls out to 500 feet from the adapter with up to 5 simultaneous answering stations. Useful for larger facilities (office parks, manufacturing floors, multi-building campuses) where a single central adapter serves multiple buildings or wings without requiring repeaters or additional infrastructure.
• Audio Station Range up to 1000 feet: Audio-only calls extend to 1000 feet with capacity for 7 answering stations. If video bandwidth or system load is a constraint, falling back to audio-only extends reach significantly and distributes load across more endpoints.
• Dual LAN Ports (RJ45): Two Ethernet connections allow you to integrate the adapter into your building network or create a dedicated Aiphone loop without competing for general IT infrastructure. Network redundancy or load-balancing is possible by intelligently routing traffic through both ports.
• Compact Rack Mount (1.75" H × 19" W × 11" D): Single rack-unit form factor fits neatly into standard network racks or equipment shelves. The shallow 11-inch depth is important in tight cabinets where space behind the equipment is minimal — no special depth adaptation needed.
• Wide Operating Temperature (-4°F to 158°F): Rated for freezing to hot environments without performance degradation. Deploy the IPW-10VC in unheated equipment rooms, outdoor weatherproof enclosures, or shipping/warehouse facilities without thermal management overhead.
• 100–240V AC Input, 260W Max Draw: Standard international AC supply with modest power consumption. The 260W ceiling means you won't overload small UPS systems or power distribution units, and it's low enough that a single standard 20A circuit can safely power multiple adapters with headroom.
• Cat-5e/6 to 2-Wire Conversion (15-foot run internally): The adapter internally handles the Cat-5e/6 to legacy 2-wire protocol conversion within a 15-foot distance spec. This is a fixed spec — if your 2-wire endpoints are more than 15 feet from the adapter chassis itself, you'll need to account for that in your physical layout or use intermediate repeaters.

Integration & Compatibility

The IPW-10VC (often searched as IPW 10VC) is purpose-built for Aiphone legacy and hybrid systems. It bridges the gap between modern Cat-5e/6 cabling standards and older 2-wire intercom topology, making it essential when you're upgrading building infrastructure without replacing the entire Aiphone system. The dual LAN ports integrate with standard network switching — no special management required. This adapter is ideal for facilities management in multi-tenant buildings, manufacturing plants with intercom needs across separate buildings, and large educational or government campuses where Cat-5e/6 has already been installed but older Aiphone hardware remains operational and cost-effective to keep in service.

What's in the Box

Package contents are not specified in the available evidence. Contact the manufacturer or a direct distributor for exact kit contents and included accessories.

Frequently Asked Questions

Q: Can I use the IPW-10VC with both video and audio stations simultaneously?

A: Yes, but capacity is governed by distance. Within 500 feet you can support 5 video stations, and within 1000 feet you can support up to 7 audio-only stations. Mixing video and audio on the same adapter counts toward the total calling capacity for that distance range, so plan accordingly.

Q: What cable gauge does the IPW-10VC accept on the UTP ports?

A: The adapter accepts Cat-5e and Cat-6 cabling (22–18 AWG wire gauge). Standard modern twisted-pair cabling fits directly into the RJ45 ports; no adapters or special connectors are needed.

Q: How much power does the IPW-10VC draw, and can I run it on a standard UPS?

A: The IPW-10VC draws a maximum of 260W at 100–240V AC input. A modest UPS rated for 500–750W continuous can safely power this adapter and several other small networking devices, giving you 10–20 minutes of runtime in the event of a power loss.

Q: Is the 15-foot Cat-5e/6 to 2-wire conversion distance a hard limit?

A: Yes, the internal conversion spec is 15 feet. If your 2-wire endpoints are located more than 15 feet from the physical adapter chassis, you will need to place the adapter closer to those endpoints or use Aiphone repeaters to extend the 2-wire reach.

Q: Can I daisy-chain multiple IPW-10VC adapters on the same network?

A: Multiple adapters can coexist on the same network via the dual LAN ports, but consult Aiphone documentation for proper addressing and loop avoidance. This is a configuration question best resolved with pre-sales engineering support or a working Aiphone integrator.

Marty Allison

I've spec'd the IPW-10VC into several large-footprint retrofit jobs — specifically campus intercom upgrades where the building already has Cat-5e backbone but the Aiphone 2-wire system is still delivering value. The model number matters here: the IPW-10VC is the 10-port variant, and that port count is the difference between a one-adapter solution and needing multiple units. The real win is the distance profile — video to 500 feet with 5 stations, audio to 1000 feet with 7 stations — because it directly influences how many adapters you actually need to deploy across a large site.

Technical Highlights:

• Dual LAN Ports + 10 UTP Endpoints: You get network redundancy and 10 discrete Aiphone endpoints in a single 1.75-inch rack unit. That's density — instead of daisy-chaining multiple smaller converters, one IPW-10VC can consolidate a building wing or warehouse section onto one network loop.
• 260W Maximum Draw: Low power consumption is overlooked until you're calculating UPS runtime across a rack. At 260W, you can safely pair the IPW-10VC with other network equipment on a single 500W UPS and still meet N+1 runtime specs (roughly 15–20 minutes during a power event). That matters when your SLA requires some level of intercom continuity.
• Internal 15-foot 2-Wire Conversion Boundary: This spec is a trap for the unwary. Your endpoints must be within 15 feet of the adapter chassis. If they're not, you're either moving the adapter or buying Aiphone repeaters. Get the layout right in pre-deployment planning.

Deployment Considerations:

• The IPW-10VC bridges legacy 2-wire and modern Cat-5e/6 — it's a conversion device, not a replacement. If your building has existing 2-wire endpoints in service, they stay in service; you're just extending or consolidating the system via new Cat-5e runs. Plan for both old and new cabling in the same rack area.
• The calling capacity drops significantly with distance: 5 video stations at 500 feet, but only 3 video stations at 1000 feet. Don't assume maximum reach on every port. Budget your channel allocation per distance zone, or you'll overload a single adapter in a sprawling facility.

The IPW-10VC is the right pick for warehouse or manufacturing retrofit scenarios where Cat-5e has already been installed, the existing Aiphone system is working, and you need to extend it or consolidate multiple physical 2-wire nodes into one managed network loop. It's not a replacement for full IP intercom; it's a pragmatic bridge that keeps your legacy Aiphone investment alive without a full rip-and-replace.
