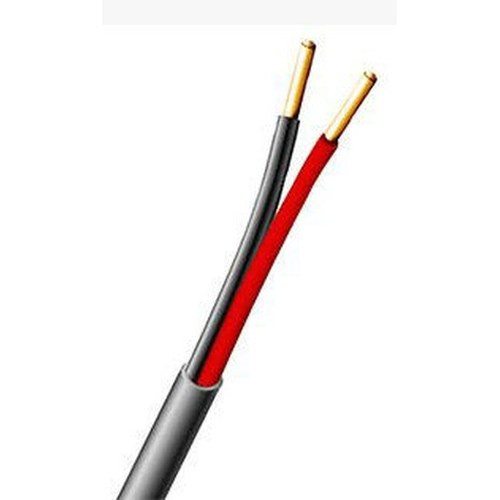

Aiphone 871802P10C 2-Conductor Plenum-Rated Intercom Cable
Overview
The Aiphone 871802P10C is a purpose-built 2-conductor, 18 AWG solid copper cable engineered for intercom and low-voltage control applications. Supplied in a 1,000-foot spool, this cable meets plenum fire-safety standards and delivers the low-capacitance characteristics required for clean signal transmission across extended runs. The model 871802P10C integrates seamlessly with Aiphone intercom and access control systems, backed by comprehensive regulatory compliance and technical matching to system specifications.
Key Features
- Plenum-Rated Construction: Meets CL3P, FPLP, and c(UL)us CMP FT-6 fire ratings for installation in air-handling plenums and return-air spaces—critical for commercial and institutional deployments.
- Low Capacitance Design: 13.0 pF/ft capacitance minimizes signal loss and crosstalk, ensuring reliable performance over the full 1,000-foot length.
- Solid Copper Conductors: 18 AWG solid core (not stranded) provides consistent impedance and reduced susceptibility to high-frequency interference.
- FEP Insulation with Plenum PVC Jacket: Superior dielectric performance and flame-retardant properties without halogen emissions.
- DC Resistance Specification: 6.39 Ω per 1,000 feet at 68°F, allowing integrators to calculate voltage drop across long runs with precision.
- UL and c(UL)us Listed: Certified to North American safety standards; regulatory compliance reduces project approval timelines.
- RoHS II and REACH Compliant: Meets international environmental and hazardous substance directives.
- Made in USA: Domestic manufacturing ensures supply continuity and quality control.
- Extended Warranty Coverage: One additional year of warranty included when cable is technically matched to designated Aiphone systems.
- Non-Shielded Configuration: Lighter gauge and lower cost compared to shielded variants; suitable for environments where EMI is not a primary concern.
Integration & Compatibility
The 871802P10C is technically matched to a broad range of Aiphone master stations, tenant stations, and door stations—including the JV-1MD, JV-1FD, JV-DVF, JV-DV, GT-1A, GT-1C7W, GT-1C7, GT-1D, GT-1M3, and GT-MKB-N models. System designers can reference Aiphone's component integration guides to confirm optimal cable selection for specific master-tenant configurations. The cable's low-capacitance profile supports both audio clarity and stable DC control signaling, making it suitable for mixed-use intercom and access control deployments.
Technical Specifications Summary
Electrical Performance: Capacitance 13.0 pF/ft; DC Resistance 6.39 Ω per 1,000' @ 68°F. Conductor: 2-conductor, 18 AWG, solid. Insulation: FEP. Jacket: Plenum-rated PVC. Cable Rating: UL CL3P, FPLP, c(UL)us CMP FT-6. Length: 1,000 feet per spool. Weight: 20 lbs. Compliance: RoHS II, REACH, UL, c(UL)us.
The Aiphone 871802P10C has become a standard choice in our multi-building intercom deployments. Its plenum rating eliminates the need for conduit in return-air spaces, and the low 13.0 pF/ft capacitance ensures clean 4-wire control signaling even when running parallel to power cables in shared raceways.
Technical Highlights:
- Plenum Fire Rating: CL3P/FPLP certification supports installation in HVAC plenums without conduit, reducing labor and material cost on institutional projects.
- Capacitance Management: At 13.0 pF/ft, the 871802P10C delivers predictable signal integrity across the full 1,000-foot spool, minimizing phantom signaling and button ghosting on long runs.
- DC Resistance Predictability: The published 6.39 Ω per 1,000' specification allows precise voltage-drop calculation for power-limited intercom systems operating on 12V or 24V supplies.
Deployment Considerations:
- Verify plenum vs. non-plenum requirements in local fire code before purchase; this cable is rated for plenum installation, but non-plenum spaces may accept lower-cost alternatives.
- Solid-core construction requires care during installation—avoid excessive bending or pinching to prevent conductor fracture; use appropriate pulling lubricant on longer runs.
- System warranty extension applies only when cable is formally matched to Aiphone master-tenant configurations; document compatibility during design phase.
For integrators standardizing on Aiphone ecosystems, the 871802P10C justifies inventory investment. The combination of plenum rating, low capacitance, and warranty alignment reduces specification variability and streamlines multi-site rollout planning.
