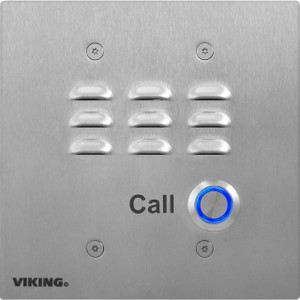

Viking E-32T-SS-IP-EWP IP66 Outdoor IP Intercom Secure SIP PoE

Viking Electronics E-32T-SS-IP-EWP IP Intercom with Enhanced Weather Protection and Secure SIP

Overview

The Viking Electronics E-32T-SS-IP-EWP is a ruggedized flush-mount IP intercom engineered for harsh outdoor access points — building entries, parking structures, industrial gates, and any location where weather, temperature swings, and vandal risk are daily concerns. The EWP designation means Viking has taken their standard E-32T platform and added gaskets and sealed connections to achieve IP66 ingress protection, meaning sustained water jets and dust won't compromise the unit — suitable for covered or exposed exterior installations where a standard IP54 intercom would eventually fail. It draws under 6.5 Watts on a standard 802.3af PoE port, eliminating any need for a local power supply or conduit run for power.

Key Features

• IP66 Enhanced Weather Protection: Gaskets and gel-filled butt connectors on every penetration seal the unit to IP66 — direct rain, pressure washing, and heavy dust environments are all within spec. The non-EWP sibling tolerates up to 95% non-condensing humidity; the E-32T-SS-IP-EWP handles up to 100%, making it the correct choice for covered car washes, coastal facilities, or anywhere condensation cycles are unavoidable.
• -40°F to 140°F Operating Range: Few intercoms survive the full range of a Minnesota winter and an Arizona summer without heater accessories. This unit does both natively, which simplifies the BOM for multi-site deployments spanning climate zones.
• 316 Stainless Steel Faceplate, 14 Gauge, #4 Brushed Finish: 316 SS resists chloride corrosion — the relevant spec for coastal, food processing, or pool/spa environments where 304 SS faceplates discolor and pit within a year or two.
• PoE Class 2 (<6.5W): Draws less than half the budget of a PoE+ port. On a 24-port 370W switch, you can power over 50 of these without approaching the power budget ceiling — no per-port calculations needed for typical deployments.
• 90 dB SPL at 1 Meter: Enough output for noisy loading docks or outdoor areas with ambient machinery. Plan speaker placement so the primary lobe faces the expected visitor — in a narrow vestibule, 90 dB is ample; in a wide-open yard, position accordingly.
• G.711u, G.711a, and G.722 Audio Codecs: G.722 delivers wideband audio (7kHz vs 3.4kHz for G.711) for noticeably cleaner two-way voice — useful at noisy entry points where intelligibility matters more than bandwidth savings.
• 2 Amp Relay Contacts: On-board relay handles most electric strikes and mag-lock control circuits directly, avoiding the cost of a separate relay module for single-door applications.
• SIP 2.0 (RFC3261) with Web UI Configuration: Standard SIP compatibility means this unit registers with virtually any IP PBX or SIP-capable access control platform. Remote programming via the built-in web interface eliminates truck rolls for dial plan changes.
• Dual-Gang Flush or Surface Mount: Fits a standard double-gang box for a clean architectural finish, or pairs with an optional VE-Series surface box where in-wall rough-in isn't possible.

Integration and Compatibility

The E-32T-SS-IP-EWP connects via a single RJ45 port supporting 100/1000Base-T and IEEE 802.3af PoE. SIP 2.0 RFC3261 compliance makes it compatible with enterprise IP PBXs, SIP-capable access control panels, and VoIP platforms that accept standard SIP registration. Three gel-filled butt connectors are provided for field wiring in wet locations. Dial-plan and network parameters are configured through the on-board web UI — no proprietary software required.

Frequently Asked Questions

Q: What does the EWP designation mean on the E-32T-SS-IP-EWP?

A: EWP stands for Enhanced Weather Protection. Viking adds gaskets and sealed connections to achieve IP66 ingress protection and raises the humidity tolerance to 100%, compared to 95% non-condensing on the standard model. It is the correct choice for exposed outdoor locations, coastal environments, or anywhere condensation is a regular condition.

Q: Does the E-32T-SS-IP-EWP require a separate power supply?

A: No. It draws under 6.5 Watts and is powered by a standard 802.3af (PoE Class 2) switch port. No separate power supply, injector, or power conduit is required as long as your switch supports 802.3af.

Q: What SIP standard does this intercom use, and will it register with a standard IP PBX?

A: It uses SIP 2.0 per RFC3261, the same standard used by enterprise IP PBXs and most SIP-capable access control platforms. It will register as a standard SIP endpoint on compatible systems.

Q: Can the E-32T-SS-IP-EWP control a door strike or mag-lock directly?

A: Yes. The unit includes on-board 2 Amp relay contacts that can directly drive most electric strikes and mag-lock circuits, eliminating the need for an external relay module in single-door applications.

Q: What mounting options are available?

A: The intercom is designed to flush mount in a standard double-gang electrical box. For surface installations where in-wall rough-in is not possible, it also mounts with an optional VE-Series surface mount box.

Q: What audio codecs does the intercom support?

A: It supports G.711u, G.711a, and G.722. G.722 is a wideband codec that delivers noticeably clearer voice quality compared to narrowband G.711 — a meaningful difference at noisy entry points.

Karl Wilson

The spec I keep coming back to on the E-32T-SS-IP-EWP is the -40°F to 140°F operating range combined with IP66 and 100% humidity tolerance. Most intercoms claim outdoor suitability but are really rated for covered, mild-climate installations. This unit is genuinely spec'd for the full punishment range — Minnesota winters and Gulf Coast summers on the same SKU, no heater kit required.

Technical Highlights:

• IP66 with 100% Humidity: Gel-filled butt connectors and full gasket sealing mean the wiring penetrations are sealed, not just the faceplate — this is the detail that separates a real IP66 rating from a marketing claim on most intercom faceplates.
• PoE Class 2 (<6.5W): At under 6.5W, this is one of the lowest-draw intercoms in its class. That matters on edge switches with tight power budgets — you can run it off the same 802.3af port as a standard IP camera without any power planning overhead.
• 316 Stainless Steel, 14 Gauge: 316 alloy is the spec to ask for in coastal or chemical-wash environments. 14 gauge is heavy enough to resist casual vandal attempts — not IK-rated, but meaningfully more durable than 18-gauge faceplates common on commercial intercoms.

Deployment Considerations:

• The three gel-filled butt connectors for field wiring are the right call for wet-location terminations, but factor in that your field tech needs to know how to use them correctly — a poorly crimped gel connector can let moisture wick up the conductor over time.
• The 90 dB SPL output is rated at 1 meter — plan for attenuation in open outdoor environments. For installations where visitors approach from more than 3-4 meters away or ambient noise exceeds 75 dB, consider supplementing with a separate horn speaker driven by the relay output.

This unit is the right call for food processing plant entries, coastal facility gates, covered parking access points, and industrial perimeters where the intercom is genuinely exposed — not just 'outdoor-rated' in the marketing sense but operationally tested against the full weather spectrum.
