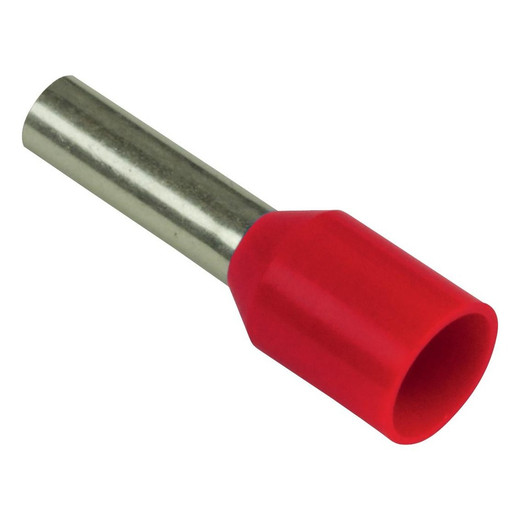

Panduit FSD78-8-2KD0 Insulated Ferrule - DIN Mount
Overview
The Panduit FSD78-8-2KD0 is an insulated ferrule designed for terminating stranded conductors in control panel wiring and industrial automation applications. It provides a clean, secure termination point for DIN rail mounted terminal blocks, preventing conductor splaying and ensuring reliable electrical contact. This ferrule is essential for maintaining signal integrity and preventing short circuits in dense wiring environments, specifically where DIN rail mounted components are utilized.
Compatibility
This ferrule is engineered for use with DIN rail mounted terminal blocks that accept 8 AWG conductors. It is compatible with Panduit's own DIN rail terminal block series and other brands utilizing standard 8 AWG terminal block interfaces. The ferrule's design ensures a snug fit within the terminal block's clamping mechanism, providing a robust connection for stranded wire.
Installation Notes
For optimal performance, use a Panduit crimping tool (e.g., CT-900) or an equivalent tool designed for 8 AWG ferrules to ensure a consistent and secure crimp. Apply the ferrule to the stripped end of the stranded conductor before inserting it into the terminal block. Ensure the ferrule is fully seated and crimped to the specified dimensions to prevent conductor pull-out and electrical arcing. The insulation on the ferrule prevents accidental contact with adjacent terminals or grounded surfaces.
What's in the Box
- 1x Panduit FSD78-8-2KD0 Insulated Ferrule
