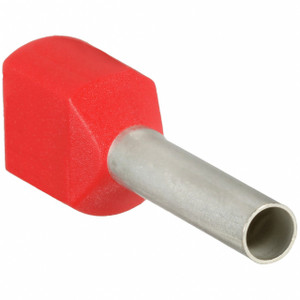

Panduit FSD74-8-D Insulated Ferrule

Overview

The Panduit FSD74-8-D is a 22 AWG insulated ferrule designed for terminating stranded wire in control panels, automation systems, and electrical enclosures. It provides a clean, secure termination point for wire ends, preventing fraying and ensuring reliable contact with terminal blocks and connectors. This specific 8mm length is optimized for applications where space is a consideration, offering a compact solution for wire management in dense installations. The FSD74-8-D is essential for professional installations requiring robust and code-compliant wiring practices.

Compatibility

This ferrule is specified for use with 22 AWG stranded copper wire. It is compatible with standard ferrule crimping tools and is suitable for termination into terminal blocks, connectors, and control devices commonly found in industrial automation, building management systems, and low-voltage electrical installations. While not specific to any single camera or NVR model, it is a foundational component for the wiring infrastructure supporting surveillance systems, particularly within control cabinets.

Installation Notes

For optimal performance, use a dedicated ferrule crimping tool designed for 22 AWG wire. Ensure the wire strands are fully captured within the ferrule and that the crimp is applied evenly. The insulated sleeve provides strain relief and prevents accidental short circuits if wires are in close proximity. The 8mm length is ideal for applications with limited terminal space.

What's in the Box

• 1x Panduit FSD74-8-D 22 AWG Insulated Ferrule, 8mm
