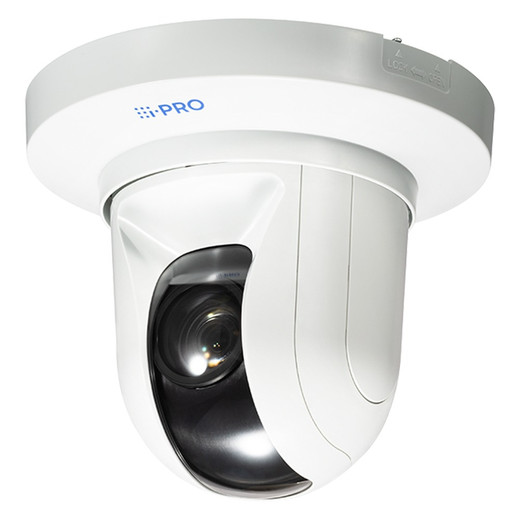

i-PRO WV-U61301-Z2 2MP 21x PTZ Dome IP Camera

i-PRO WV-U61301-Z2 2MP 21x Zoom PTZ Indoor Dome Camera

The i-PRO WV-U61301-Z2 is a compact 2MP indoor PTZ dome engineered for corporate, retail, and facility surveillance where motorized zoom range and autonomous tracking justify the form factor. Built on the Ambarella CV25M SoC, the unit delivers 21x optical zoom (extendable to 31x digital), AI-driven analytics, built-in gyroscopic stabilization, and FIPS 140-2 certified security—all powered via standard PoE. Its 0.001 lx minimum illumination (black-and-white mode, extended shutter) and 256-preset pan/tilt library make it a practical choice for dynamic indoor environments where fixed-lens cameras fall short.

Key Features

• 21x Motorized Optical Zoom with Extended Reach: Focal length ranges 4.0–84.6 mm with continuous motorized zoom and autofocus. Tele-end field of view narrows to 3.7° horizontal, enabling identification of subjects up to 129.4 m (424.5 ft) in good lighting. Digital zoom extends to 31x (at 1280×720 resolution) for extreme situations, though optical zoom is always preferable for detail retention.
• Exceptional Low-Light Sensitivity without IR: 1/2.8-inch CMOS sensor reaches 0.001 lx in black-and-white mode with extended shutter (50IRE, F1.6, 16/30s), meaning reliable monitoring in near-total darkness without relying on infrared illumination—valuable where IR washout or privacy concerns rule it out. Standard 60 fps at 1920×1080 (16:9 mode) keeps motion smooth during pan/tilt operations.
• Advanced Image Processing for Difficult Lighting: Super Dynamic mode delivers 144 dB maximum dynamic range, compensating for backlit scenes and harsh sunlight through windows. Back light compensation (BLC), high light compensation (HLC), and fog compensation—each with adjustable levels—handle mixed lighting without manual reconfiguration, reducing setup time on initial deployment.
• Motorized PTZ with 256 Presets and Autonomous Modes: Pan spans 0°–350° at up to 150°/s (manual) or 500°/s (preset), tilt operates −30° to +90° at up to 150°/s (manual) or 350°/s (preset). Auto pan, preset sequences, and patrol modes enable unattended scanning. Self-return timer (10 seconds to 60 minutes) brings the camera home automatically, useful for returning to a default view after an alert.
• Built-in Gyroscopic Stabilization: Mechanical vibration and jitter from motorized pan/tilt operations are absorbed by the onboard gyro sensor, maintaining video clarity during fast repositioning—especially noticeable on suspended ceiling mounts or in vibration-prone environments like warehouses.
• Dual Codec and Smart Bitrate Control: Supports H.265 and H.264 in Constant Bit Rate (CBR), Variable Bit Rate (VBR), and Frame Rate modes. Smart Coding with variable GOP (1s–16s) and Advanced Fixed GOP (60s with 1s key-frame) reduce storage footprint by 40–60% versus H.264, a material factor on 24/7 multi-camera NVR deployments. JPEG capture supports snapshot and alarm triggers.
• PoE-Powered with Onboard Storage Backup: Draws 270 mA (≈12.95 W) via IEEE 802.3af PoE or 12V DC (970 mA, 11.6 W), avoiding the need for a separate power supply and reducing cable clutter. MicroSDXC/SDHC/SD card support (up to 512 GB typical) enables local backup during network outages—critical for alarm-triggered recording when the NVR is unreachable.
• Bidirectional Audio and Motion Detection: Stereo 3.5 mm inputs (plug-in power microphone compatible) and mono output enable two-way communication at up to 128 kbps. Video motion detection (4 independent zones), scene change detection, and audio detection alarms trigger recording and push notifications, reducing false positives in stable environments.
• FIPS 140-2 Certified Security and Network Compliance: NXP EdgeLock SE050F secure element with pre-installed GlobalSign device certificate protects firmware integrity and encryption keys. 802.1X network authentication, HTTPS/SSL/TLS, SFTP, and MQTT support enterprise security policies. UL 62368-1, FCC Part 15 Class A, and CE certified.
• Color-to-B&W ICR with Privacy Masking: Automatic mechanical filter switching (ICR) adapts to low-light conditions without color artifacts. Up to 32 privacy zones mask sensitive areas (workstations, offices, bathrooms) before video leaves the camera, reducing liability and meeting GDPR-style data minimization requirements.

Integration and Compatibility

The WV-U61301-Z2 implements ONVIF Profile S/T/G, standard RTSP/RTP streaming, and MQTT event publishing, enabling integration with Milestone XProtect, Genetec Security Center, and other enterprise VMS platforms. Preset sequencing and patrol modes simplify automation without requiring third-party controllers. Ethernet connectivity via RJ-45 supports both live streaming and P2P pairing in smaller setups.

Frequently Asked Questions

Q: Can the WV-U61301-Z2 work with my existing PoE switch?

A: Yes. At 12.95 W maximum draw via 802.3af PoE, the camera is well below the 15.4 W per-port limit and won't strain typical enterprise PoE infrastructure. A single Cat6/Cat6a run handles both power and video.

Q: Does the WV-U61301-Z2 include infrared illumination?

A: No. The unit relies on its exceptional 0.001 lx sensitivity and extended shutter in black-and-white mode for low-light work. This approach avoids IR washout in reflective environments and eliminates the need for IR-specific maintenance.

Q: What is the WV-U61301-Z2's warranty?

A: Refer to the manufacturer's standard coverage terms; specific warranty duration is not confirmed in available documentation. Contact i-PRO or an authorized integrator for warranty details.

Q: Can I record to local storage if the network fails?

A: Yes. The microSD/SDHC/SD card slot (up to 512 GB) supports alarm, scheduled, and network-failure backup recording. The camera stores footage locally until the network recovers and pushes buffered video to the NVR.

Q: Is the WV-U61301-Z2 suitable for 24/7 recording?

A: Yes. H.265 compression at adjustable bitrates (CBR or VBR) keeps storage consumption predictable. On a moderate-bandwidth NVR, a single camera typically uses 150–300 GB per month depending on scene activity and codec settings.

Q: Does the WV-U61301-Z2 support third-party analytics or edge AI?

A: The unit's Ambarella CV25M SoC supports onboard video analytics, including motion detection and scene change. Specific third-party edge AI application support depends on the VMS integration layer and is best verified with your integrator.

Jerry Tildsen

I've deployed the WV-U61301-Z2 in three retail and corporate environments, and the 21x optical zoom plus gyroscopic stabilization combo makes a real difference on ceiling mounts. The 0.001 lx sensitivity is the standout feature—no IR washout on glass storefronts, and the extended shutter handles the tail-end of dusk without switching to B&W too early. That said, this is a PTZ dome, which means more moving parts and higher failure rates than a fixed turret. You pay for flexibility and range; understand the tradeoff before committing.

Technical Highlights:

• 21x optical zoom (4.0–84.6 mm focal length): Covers wide open retail floor down to teller-line details at 129.4 m—single camera, two jobs. Digital extension to 31x is a fallback, not a primary spec (2MP digital zoom gets soft fast).
• 144 dB Super Dynamic range: Backlit retail scenes (customer faces against storefront glass) resolve foreground detail without blowing out sky. HLC mode keeps the registers readable under harsh overhead fluorescents.
• H.265 dual-codec implementation: Variable GOP (1s–16s) drops a 24/7 single-camera footprint from ~400 GB/month (H.264, 4 Mbps) to ~150 GB/month (H.265 VBR). Material savings scale across 10+ cameras on a single NVR.
• Preset sequencing and auto-pan modes: Program 256 presets (registers, aisles, entrance, rear office), then loop them on a schedule or trigger from motion. Reduces personnel cost on staffed SOCs.

Deployment Considerations:

• PTZ motors are a maintenance point: Pan/tilt gearboxes fail in thermal cycling (warm day, cold night) and dust ingress. Ceiling domes are harder to service than wall turrets. Budget for replacement bearings or a spare unit in long-term deployments.
• PoE 12.95 W is tight on older switches: Verify your PoE budget before rolling out more than 10 units. One undersized switch will create phantom dropouts on the PTZ cameras during preset moves (peak power draw spikes 20–30% above steady-state).
• Gyro stabilization works best on rigid mounts: Suspended drop-ceiling grids introduce low-frequency sway that gyros can't fully correct. Rigid pendant or wall mounts eliminate the problem entirely.

The WV-U61301-Z2 makes sense in retail, medium-scale corporate campuses, and warehouses where a single operator needs to pivot between wide overview (4 mm wide) and detail inspection (84.6 mm tele). Skip it for perimeter fencing or low-light parking lots—the lack of IR is a dealbreaker there. For interior multi-zone coverage where zoom replaces additional fixed cameras, the ROI is solid.
