i-PRO WV-S8564LG 25MP Multi-Sensor Outdoor Dome

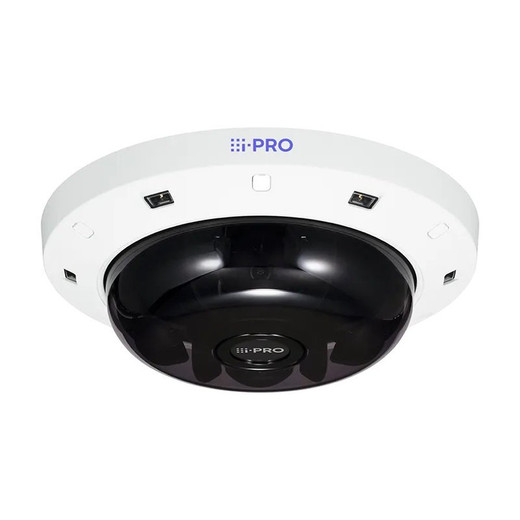

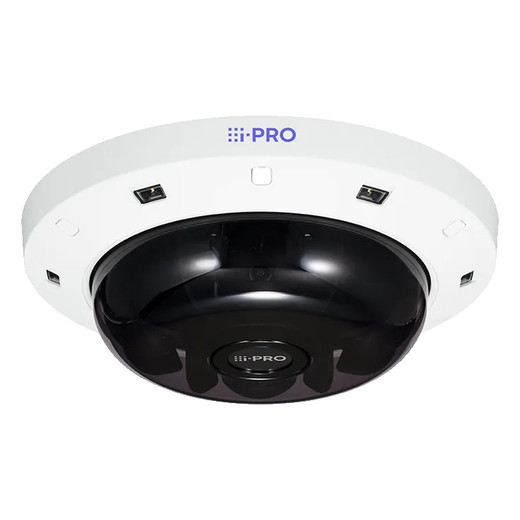

i-PRO WV-S8564LG 25MP Multi-Sensor Outdoor Dome Camera

The i-PRO WV-S8564LG is a premium 4-sensor, 25MP outdoor surveillance camera engineered for comprehensive 360° perimeter coverage through a single IP address and PoE+ connection. Built for security integrators and enterprise deployments requiring high-resolution omni-directional monitoring with embedded AI analytics, this vandal-resistant dome delivers intelligent threat detection without the complexity of managing multiple camera feeds.

Key Features

• 25MP Aggregate Resolution: Four 6MP sensors (3328x1872 each) capture full 360° panoramic coverage at 15 fps, eliminating multi-camera feed management
• AI Engine with Multi-App Support: Integrated processor executes intelligent object classification (people, vehicles) and AI sound classification simultaneously to reduce false alarms across diverse deployments
• Built-in 360° Color Night Vision: Full-spectrum IR LED illumination with 30m IR distance and color night vision capability at 0.084–0.12 lux ensures AI accuracy in complete darkness
• Super Dynamic 120dB WDR: Advanced Wide Dynamic Range processing handles extreme lighting transitions without sacrificing image clarity or analytics performance
• IK10 Vandal Resistance: Rugged dome design with IK10 rating withstands harsh outdoor environments and physical tampering attempts
• Motorized Tilt Adjustment: Flexible mounting on ceiling, wall, or pendant configurations with motorized angle adjustment for optimized field of view
• H.265 Video Compression: Efficient codec reduces bandwidth and storage requirements while maintaining image fidelity
• Enterprise-Grade Security: FIPS 140-2 Level 3 Secure Element (NXP EdgeLock SE050F), third-party digital certificates (GlobalSign), HTTPS encryption, and signed firmware

Technical Specifications

• Resolution: 4x6MP (25MP total); 3328x1872 per sensor
• Frame Rate: 15 fps
• Compression: H.265, H.264, MJPEG
• Min Illumination: 0.084–0.12 lux (color night vision)
• IR Distance: 30m with 360° built-in LED
• Power: PoE+ (Class 4)
• Connectivity: Ethernet, Wi-Fi, USB
• IP Rating: IP67, NEMA 4X
• Vandal Rating: IK10
• Lens Focal Length: 3.1mm
• Storage: microSD card support
• Compatibility: ONVIF compliant

Ideal Applications

• 360° perimeter surveillance for retail, warehouses, and distribution centers
• Enterprise campus and parking structure monitoring
• Critical infrastructure and public venue security
• Deployments requiring consolidated multi-sensor feeds into unified intelligence platform

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S8564LG addresses a critical gap in outdoor surveillance: delivering comprehensive 360° coverage without the operational overhead of four separate cameras. The quad-sensor design consolidates feeds into a single IP address, significantly reducing network bandwidth, PoE infrastructure costs, and VMS licensing complexity. The integrated AI Engine distinguishes this platform from passive dome alternatives—simultaneous multi-app analytics (object classification, sound detection, scene change) enable proactive threat detection rather than reactive event review.

For integrators, the motorized tilt adjustment and flexible mount options reduce deployment complexity. Enterprise security features (FIPS 140-2 compliance, signed firmware, certificate validation) position this camera for regulated environments and zero-trust network architectures. The 120dB WDR combined with color night vision at 0.084 lux ensures reliable AI performance across lighting extremes—critical for outdoor analytics accuracy.

PoE+ power eliminates auxiliary power runs, and H.265 compression reduces bandwidth demand for 25MP aggregate resolution. This camera is investment-grade for integrators targeting high-value accounts requiring both comprehensive coverage and intelligent automation.
