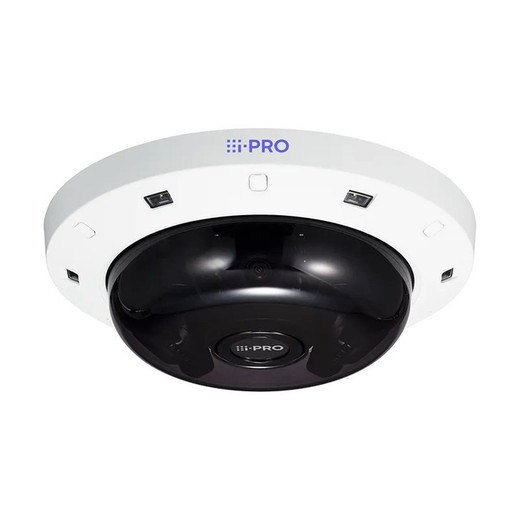

i-PRO WV-S8543LG 12MP Multi-Sensor Outdoor Dome

i-PRO WV-S8543LG 12MP Multi-Sensor Outdoor Dome Camera

The i-PRO WV-S8543LG is a premium outdoor multi-sensor network camera designed for comprehensive perimeter security and wide-area surveillance. Featuring three independent 4MP sensors with 12MP total resolution, this compact dome delivers 270° panoramic coverage through a single IP address, eliminating the complexity and cost of deploying multiple cameras. Built with enterprise-grade security and AI-driven intelligence, the WV-S8543LG is engineered for mission-critical outdoor applications requiring robust detection accuracy and minimal false alarms.

Key Features

• 3x4MP Multi-Sensor Array: Each sensor captures 4MP at 2688x1520 resolution at 30 fps, delivering exceptional detail across 270° of panoramic coverage while optimizing bandwidth with H.265 Smart Coding compression
• Integrated AI Engine: Supports up to 4 simultaneous AI applications including people and vehicle detection, AI sound classification, and facial recognition to reduce false alarms and enable intelligent event filtering
• 360° Color Night Vision: Built-in IR LED illumination with color night vision capability at 0.21–0.3 lux extends AI detection accuracy during low-light and nighttime conditions, critical for perimeter intrusion monitoring
• Exceptional Durability: IK10 vandal rating and IP67/NEMA 4X environmental sealing ensure reliable outdoor performance in harsh weather and high-risk security environments
• Enterprise Security: FIPS 140-2 Level 3 Compliant Secure Element with EdgeLock® SE050F (NXP® Semiconductors) and third-party digital certificates (GlobalSign®) provide military-grade encryption and firmware integrity verification
• Flexible Connectivity: PoE+ (Class 4) power over Ethernet, plus Wi-Fi and USB connectivity for flexible deployment in environments where traditional wiring is impractical
• Remote Zoom & Focus: Motorized 2.5x optical zoom and remote focus with wide-range tilt adjustment for precise target framing without physical access
• Super Dynamic WDR: 108dB Wide Dynamic Range ensures clear imagery in mixed-light environments with simultaneous bright and dark areas

Technical Specifications

• Resolution: 3x4MP (2688x1520 per sensor); 12MP total
• Frame Rate: 30 fps per sensor
• Video Compression: H.265, H.264, MJPEG
• Night Vision: Color with 360° IR LED; 0.21–0.3 lux minimum illumination
• Optical Zoom: 2.5x motorized zoom and focus
• Power: PoE+ (Class 4)
• Connectivity: Ethernet, Wi-Fi, USB
• Environmental Rating: IP67, NEMA 4X; IK10 vandal rating
• Storage: microSD card support
• Audio: Audio detection and AI sound classification
• Analytics: Motion Detection (VMD), Scene Change Detection (SCD), people/vehicle detection, facial recognition
• Compliance: ONVIF Profile compliant; HTTPS encryption; signed firmware

Applications

• Perimeter security and intrusion detection at critical infrastructure
• Campus and facility-wide surveillance with minimal camera deployments
• Parking lot and outdoor asset monitoring
• Border and maritime security applications
• High-security environments requiring FIPS 140-2 compliance

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S8543LG stands out in the outdoor multi-sensor category through its combination of panoramic coverage efficiency and AI-driven intelligence. By consolidating three 4MP sensors into a single IP address, organizations reduce network bandwidth overhead, simplify VMS integration via ONVIF compliance, and lower total cost of ownership compared to deploying three separate cameras. The FIPS 140-2 Level 3 Secure Element addresses the growing need for cryptographic protection in critical infrastructure, while the 108dB Super Dynamic WDR and color night vision ensure detection performance regardless of lighting conditions.

The inclusion of facial recognition alongside people/vehicle detection and sound classification makes this camera suitable for environments requiring both perimeter alerting and identity verification. The 2.5x motorized zoom provides operational flexibility without additional hardware, and PoE+ power delivery simplifies installation in outdoor locations. For organizations prioritizing wide-area coverage with minimal camera count and enterprise-grade security posture, this multi-sensor dome represents a strategic investment in scalable surveillance infrastructure.
