i-PRO WV-S8544LG 4x4MP Multi-Sensor Outdoor Camera

i-PRO WV-S8544LG 4x4MP Multi-Sensor Outdoor Camera

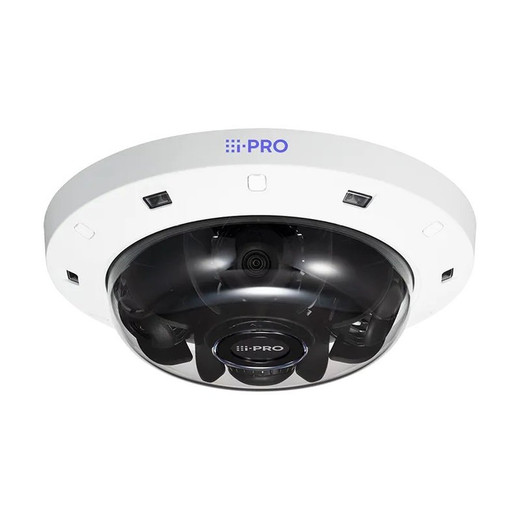

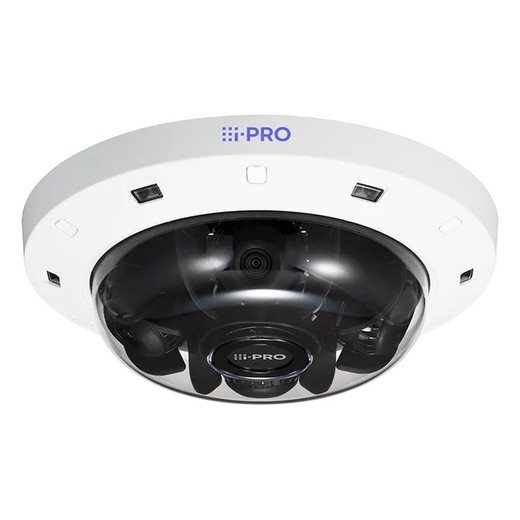

The i-PRO WV-S8544LG is a compact, ultra-durable 4x4MP multi-sensor dome camera designed for comprehensive 360° surveillance through a single IP address. With four 4MP sensors delivering 16MP total resolution, this outdoor-rated camera eliminates blind spots while reducing deployment complexity and infrastructure costs. Enterprise-grade FIPS 140-2 Level 3 security, integrated AI analytics, and advanced low-light performance make it ideal for perimeter security, facility access points, and high-security outdoor installations.

Key Features

• 4x4MP Multi-Sensor Array (16MP Total) — Four 4MP sensors at 2688×1520 resolution each, 30 fps, providing seamless 360° coverage without dead zones
• Built-in 360° Color Night Vision — Full-spectrum IR LED with color night vision at 0.21–0.3 lux; IR-only mode at 0 lux for reliable low-light detection
• Super Dynamic 108dB WDR — Advanced wide dynamic range with backlight and high-light compensation for challenging outdoor lighting conditions
• H.265/H.264 Video Compression — Dual codec support with AI-driven Smart Coding optimizes bandwidth and storage without compromising forensic image quality
• AI Engine with Object Classification — Built-in AI processor for people and vehicle detection, motion detection (VMD), scene change detection (SCD), audio detection, and AI sound classification
• IK10 Vandal Resistance — Rugged outdoor dome design with IK10 impact protection and IP67/NEMA 4X weather sealing
• Enterprise Security — FIPS 140-2 Level 3 EdgeLock® SE050F secure element; GlobalSign® digital certificates; HTTPS encryption; signed firmware
• PoE+ Powered — PoE Class 4 support with Ethernet, Wi-Fi, and USB connectivity; ONVIF compatible for seamless VMS integration
• Motorized Zoom and Focus — 2.5× optical zoom with remote motorized zoom/focus and wide-range tilt adjustment mechanism
• Audio and Storage — Integrated audio support with microSD storage capability

Technical Highlights

The WV-S8544LG combines compact form factor with industrial durability. Its four independent 4MP sensors operate on a single IP address, eliminating the need for multiple cameras and streamlining network configuration. The Super Dynamic 108dB wide dynamic range and 0.21–0.3 lux color night vision ensure reliable detection across day/night transitions and high-contrast outdoor scenes. H.265 codec with AI-optimized compression reduces bandwidth overhead while maintaining forensic detail. FIPS 140-2 Level 3 compliance and secure element cryptography meet stringent enterprise and government security requirements.

Ideal Applications

• Perimeter security and intrusion detection
• High-security facility entrances and access control zones
• Campus and parking lot surveillance
• Critical infrastructure monitoring
• Outdoor retail and logistics environments

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S8544LG represents a significant advancement in outdoor multi-sensor camera design. By consolidating four 4MP sensors into a single dome housing, i-PRO delivers true 360° coverage without the provisioning overhead of multiple discrete cameras. The integrated AI engine—supporting object classification, motion detection, and audio analytics—enables edge-level intelligence that reduces false alerts and post-event review time.

Color night vision at 0.21–0.3 lux outperforms standard IR-only systems, allowing accurate object classification even in near-darkness. The IK10 vandal rating combined with IP67/NEMA 4X sealing makes this unit suitable for hostile outdoor environments. Enterprise security features (FIPS 140-2 Level 3, signed firmware, HTTPS) position it for government, financial services, and critical infrastructure deployments where compliance and supply-chain provenance are non-negotiable.

PoE+ Class 4 powering reduces installation cost on existing infrastructure, while ONVIF compatibility ensures vendor-neutral VMS integration.
