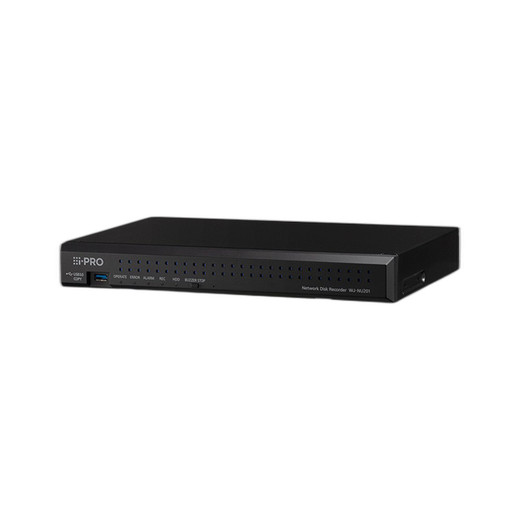

i-PRO NVR-RL-1-8TB-V7 Rack-Mount NVR Server
Overview
The NVR-RL-1-8TB-V7 is a 1U rack-mount network video recorder built for professional surveillance installations where you need integrated storage, processing, and video management in a single enclosure. This unit arrives with 8TB of onboard storage (expandable to 40TB via four additional 8TB drives), a 6-core/12-thread Intel Xeon processor, and 32GB RAM—enough to handle sustained multi-stream recording and real-time playback without dropped frames. Windows 11 Pro is pre-installed, eliminating OS configuration overhead at deployment time. Dual gigabit Ethernet ports support redundant network paths or segregated management traffic. VGA output (640x480) feeds a local monitor for on-site administration, and the included rack rails, keyboard, and mouse simplify installation into standard 19-inch racks.
Compatibility
The NVR-RL-1-8TB-V7 integrates with professional IP camera systems using standard ONVIF protocols and major video management platforms. It functions as a standalone appliance in multi-camera deployments where you need centralized recording without external dependencies. The dual 10/100/1000Base-T ports allow daisy-chaining to existing network infrastructure or direct connection to managed switches for PoE camera feeds. Rack-mount design pairs with enterprise infrastructure—compatible with standard 19-inch four-post racks and compatible with security server cabinets.
Installation Notes
The unit requires 120/240V AC power and a standard IEC C14 power inlet. Position in a climate-controlled rack environment (typical server room thermal range). The included rack rails support both two-post and four-post configurations; verify mounting depth against your rack layout before installation. Network cabling should follow CAT6 or better standards for gigabit performance. TPM 2.0 onboard provides encrypted data at rest—no additional security modules needed. Plug-and-Play boot sequence minimizes first-power commissioning time.
What's in the Box
- 1x NVR-RL-1-8TB-V7 server unit with 8TB HDD
- 1x set of rack mount rails
- 1x keyboard
- 1x mouse
