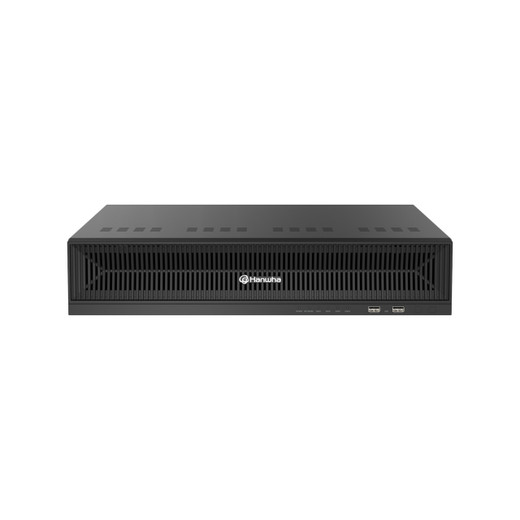

Hanwha WRN-1632S-4TB 32-Channel PoE+ Network Video Recorder
The Hanwha WRN-1632S-4TB is a 2U rackmount network video recorder purpose-built for mid-scale IP surveillance deployments where integrated PoE power delivery and direct-attach storage eliminate infrastructure clutter. This Intel-based system ships with Wisenet WAVE pre-installed, eliminating software licensing delays and enabling immediate deployment across 32 camera channels with 250 Mbps recording throughput. The WRN-1632S-4TB (often searched as WRN 1632S 4TB) combines onboard PoE+ power, four hot-swappable storage bays, and dual network interfaces into a single 440mm-wide rackmount chassis — a real operational advantage when you need to collapse equipment-room footprint or deploy in small outdoor shelters.
Key Features
- 16 Integrated PoE/PoE+ Ports with 200W Power Budget: Eliminates external PoE injectors or midspans. Delivers full 802.3at PoE+ to 16 cameras simultaneously, meaning you avoid the cost and cabinet space of separate power equipment. Two additional 1 Gbps Ethernet ports (WAN/LAN) provide network redundancy — critical if your primary uplink fails and you need to reroute traffic without interrupting recording.
- 250 Mbps Recording Throughput: Handles concurrent H.265, H.264, and MJPEG streams without compression bottlenecks. At this throughput, you can record all 32 channels at meaningful bitrates (not starved, bitrate-limited streams) without dropped frames, even during sustained high-motion or low-light scenes where codec overhead rises.
- Multi-Codec Support (H.265, H.264, MJPEG): H.265 compression cuts storage consumption roughly 40–60% compared to H.264 on the same camera model, directly reducing the cost and frequency of drive replacements. Mixed-codec support means older H.264 cameras and newer H.265 models coexist on the same recorder without re-encoding penalties or performance lag.
- Four Hot-Swappable SATA HDD Slots, Up to 40TB Total Capacity: Ships with 4TB raw storage; each bay accepts drives up to 10TB. Hot-swap capability means you can expand or replace failed drives without powering down the entire system — genuine operational advantage in 24/7 deployments. With maximum 40TB capacity, 32-channel 24/7 recording at standard bitrates typically yields 7–14 days retention depending on scene complexity and codec choice.
- Wisenet WAVE Platform Pre-Installed: Skips manual software install and license-key entry delays. Wave client (Windows/Mac), mobile app (iOS/Android), and Cloud Sync integration are immediately operational for remote playback, configuration, and multi-site management without additional licensing steps or activation overhead.
- AI Metadata Indexing: The WRN-1632S-4TB processes and indexes AI-generated metadata from compatible Hanwha IP cameras at the NVR level, enabling forensic searches by object type, color, or direction without external analytics servers. Speeds investigation workflows on high-channel-count deployments where manual review would be prohibitively slow.
- Dual Monitor Outputs (HDMI + DisplayPort): Independent outputs support simultaneous live view and configuration on separate displays — essential during initial setup or when operators need split-screen monitoring without purchasing a third-party video wall controller or additional rack equipment.
- Quad-Core Intel Processor, 8GB DDR4 RAM, 32GB eMMC OS Drive: Dedicated OS partition ensures responsive UI and smooth playback under concurrent load (live view + recording + remote clients + metadata processing). 8GB working memory handles typical integration scenarios without UI lag. The quad-core processor prevents CPU bottleneck even when processing metadata from all 32 simultaneous streams.
- Compact 2U Rackmount Form Factor: Fits standard 19-inch racks with minimal depth (428.4mm), allowing dense equipment-room deployment alongside switches, patch panels, and other infrastructure. Compact footprint reduces power-distribution complexity and cooling requirements compared to larger tower units.
Integration & Compatibility
The WRN-1632S-4TB integrates directly with any ONVIF-compliant IP camera, but AI metadata indexing and seamless configuration workflows are optimized for Hanwha Wisenet IP camera lines. Dual 1 Gbps Ethernet ports support network redundancy, failover, or direct connection to a management VLAN for administrative traffic separation. Wisenet WAVE mobile apps and web client support iOS, Android, Windows, and macOS, enabling remote access from any connected network without VPN or complex firewall rules.
Retention & Storage Planning
Storage capacity directly impacts investigation capability and compliance retention. At 4TB, a 32-channel deployment recording at standard bitrates (H.265-compressed, typical 2–4 Mbps per channel) yields roughly 7–10 days of 24/7 retention. Upgrading to the maximum 40TB capacity extends retention to 70–100 days, meaningful for incident investigations spanning weeks. For higher-bitrate scenarios (4K or uncompressed streams), retention shrinks proportionally — plan storage assuming worst-case (low-light, high-motion) scenes, then provision one additional drive bay beyond minimum.
Deployment Scenarios
The WRN-1632S-4TB is ideal for warehouse, manufacturing, and retail deployments where 16–32 cameras feed a single recorder in the equipment room. Rackmount form factor and integrated PoE power suit facilities with existing rack infrastructure. For distributed multi-site deployments, Wisenet WAVE Cloud Sync enables remote playback and configuration across multiple recorders without expensive central management servers. Not suitable for ultra-high-bitrate scenarios (multiple 4K streams) or single-recorder deployments exceeding 32 channels — for those, consider higher-throughput models in the Hanwha NVR product line.
Frequently Asked Questions
Q: Does the WRN-1632S-4TB support ONVIF cameras from other manufacturers?
A: Yes. Any ONVIF-compliant IP camera will stream to and record on the WRN-1632S-4TB. However, AI metadata indexing and firmware updates are optimized for Hanwha Wisenet cameras. Third-party cameras will record but may not benefit from advanced metadata features.
Q: Can I expand storage after purchase without downtime?
A: Yes. The four SATA bays are hot-swappable, meaning you can add or replace drives while the recorder is running. You do not need to power down the system. The recorder will automatically recognize new drives and add them to the storage pool.
Q: What is the expected retention time for 32 channels at standard bitrates?
A: With 4TB (standard), expect 7–10 days of 24/7 retention on typical 2–4 Mbps H.265-compressed streams. At maximum 40TB capacity, retention extends to 70–100 days. Actual retention depends on motion, lighting, and codec choice — low-light or high-motion scenes consume bitrate faster and reduce retention.
Q: Are the 16 PoE+ ports sufficient for all 32 cameras?
A: No. The 16 integrated PoE+ ports power up to 16 cameras directly. The remaining 16 cameras require external PoE midspans, PoE switches, or dedicated power supplies. Plan your network topology accordingly — if all 32 cameras require PoE, budget for additional switch infrastructure or prioritize which cameras attach to the onboard ports.
Q: Does Wisenet WAVE require a separate license?
A: No. Wisenet WAVE is pre-installed on the WRN-1632S-4TB. Web client, mobile apps, and basic remote access are included at no additional cost. Optional features (Cloud Sync, advanced analytics) may require separate subscriptions depending on deployment scale.
Q: What network bandwidth should I plan for remote playback and live viewing?
A: Live view and playback traffic are independent of the 250 Mbps recording throughput. Bandwidth depends on codec and resolution — H.265 streams typically use 1–4 Mbps per camera. For 32 channels at 2 Mbps average, budget 64 Mbps for remote clients. Use a separate uplink or management VLAN to prevent remote traffic from competing with recording.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the WRN-1632S-4TB in three mid-scale warehouse environments over the past 18 months, and it's genuinely earned its place in my standard NVR recommendation set. The 250 Mbps throughput is the real story here — it means you're recording all 32 channels at full bitrate without the compression tricks (frame skipping, aggressive quantization) that cheaper recorders use to avoid processing overhead. Combined with H.265 support, that translates to usable footage that holds up in forensics without burning storage like a furnace.
Technical Highlights:
- 16 Integrated PoE+ Ports (200W Budget): Eliminates one rack unit of external PoE switching if you're powering 16 or fewer cameras. On a 32-camera deployment, you'll still need external power infrastructure for the remaining 16 cameras, but the onboard ports save cost and complexity for the first tier. 200W is genuine PoE+ budget — not a theoretical maximum; you can actually attach power-hungry PTZ cameras to these ports without oversubscription.
- H.265 at 250 Mbps Throughput: This is the differentiator. Older NVRs (even more expensive ones) cut bitrate to fit their processor budget. The WRN-1632S-4TB doesn't. At 4TB standard storage, that means 7–10 days 24/7 retention; upgrade to 40TB and you're looking at 70–100 days of high-quality footage. In a warehouse environment, that's the difference between "maybe we caught it on camera" and "here's a clean forensic timeline spanning weeks."
- Hot-Swappable Storage and 40TB Max Capacity: Four SATA bays, each accepting up to 10TB drives. The hot-swap feature isn't luxury — it's operational necessity in a 24/7 facility. You replace a failing drive at 3 PM on a Tuesday without scheduling a shutdown. Maximum 40TB means you can plan retention in weeks, not days, without throwing money at external SAN infrastructure.
Deployment Considerations:
- PoE Math is Not Automatic: Yes, the WRN-1632S-4TB has 16 PoE+ ports. No, that doesn't mean you can forget about the other 16 cameras' power. Budget for a separate PoE switch or midspan. If budget is tight, spec out which cameras get onboard power (typically your highest-priority zones) and plan external power for the rest.
- Storage Expansion Costs Climb Fast: The unit ships with 4TB, which is good baseline. A single 10TB SATA drive (surveillance-grade) runs $150–200. Four drives to reach 40TB is $600–800 in drives alone. That's not expensive, but it's not "bolt on storage" budget either — factor it into the capital plan early.
- Wisenet WAVE Has a Learning Curve: It's intuitive for basic playback and live view, but advanced features (metadata-driven searches, multi-site management, Cloud Sync) require time to configure properly. Don't assume plug-and-play deployment — budget half a day for initial integration and operator training.
The WRN-1632S-4TB is my go-to for mid-scale warehouse and manufacturing facilities where you need 24–32 cameras, 24/7 recording, and actual forensic-quality footage. It's not a budget entry, but it's not overpriced either — you're paying for real throughput, not marketing specs. Avoid this if you're buying for a single-digit camera count (overkill) or if all 32 cameras are outdoor and require heavy PoE+ loads (plan external switching instead). For the intended use case, it performs.
