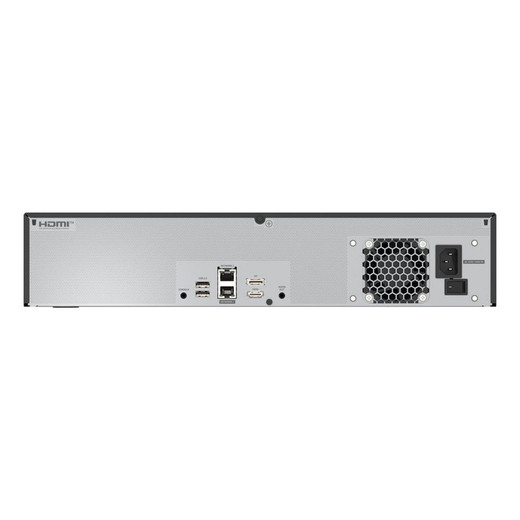

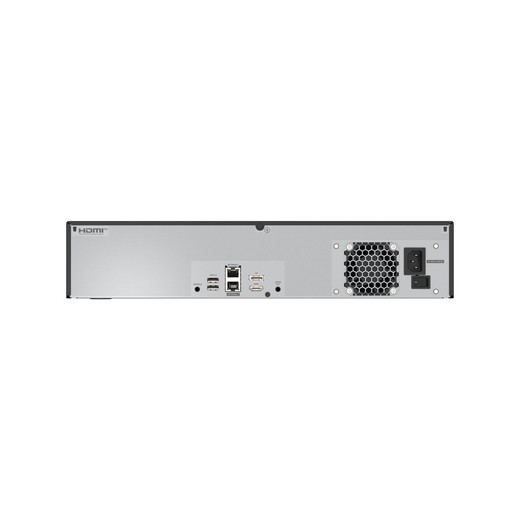

Hanwha WRN-1632-4TB 32-Channel 2U Rack Network Video Recorder
The Hanwha WRN-1632-4TB is a 2U Intel-based network video recorder purpose-built for professional surveillance deployments requiring centralized recording, AI metadata processing, and field-scalable storage. This NVR runs Wisenet WAVE software pre-installed and accommodates up to 32 concurrent IP camera channels with 250 Mbps sustained recording bandwidth. It's the backbone for small-to-medium enterprise and integrator installations where reliable video archival and intelligent search are non-negotiable.
Key Features
- 32-Channel IP Camera Support: Accepts up to 32 simultaneous camera streams via dual 1 Gigabit Ethernet ports (WAN + LAN separated). This network architecture eliminates the need for external switching infrastructure in basic deployments and provides true network segmentation—critical for isolating surveillance traffic from production systems in data centers and corporate networks.
- 250 Mbps Sustained Recording Throughput: Handles the bandwidth required for mixed-resolution HD and 4K deployments. At this throughput level, you can record approximately 16–20 simultaneous 4K streams at 30 fps or 25–30 HD streams, depending on bitrate and codec selection. This flexibility means you won't spend cycles micromanaging bitrate allocation across a diverse camera fleet.
- H.265 Native Codec with Wisestream Technology: The WRN-1632-4TB natively supports H.265, H.264, and MJPEG with Hanwha's Wisestream adaptive bitrate engine. H.265 cuts file sizes 40–60% compared to H.264—a meaningful difference on 24/7 recording across 20+ cameras. Lower bitrates also reduce WAN bandwidth consumption when transmitting clips to remote analysis centers or cloud archives.
- Four-Bay Hot-Swappable Storage Architecture: Four internal SATA HDD bays accommodate drives up to 10 TB each (40 TB raw maximum). The WRN-1632-4TB ships with 4TB base capacity; drives are field-upgradeable without powering down the system. Essential for integrator and data center deployments where maintenance windows are costly or unavailable.
- AI Metadata Processing Engine: Integrated analytics framework processes AI-derived metadata—object detection, classification, motion zones—within Wisenet WAVE software. Advanced search and automated alerting reduce manual review time from hours to minutes when investigating security events or compliance audits.
- Dual 1 Gbps Ethernet with Redundancy Support: Two separate 1 Gigabit network interfaces enable WAN/LAN isolation, failover configuration, and multi-site replication. In branch office or campus deployments, you can separate management traffic from recording streams, protecting video integrity if the office network experiences congestion or packet loss.
- Two-Way Audio and Intercom: Built-in audio input/output support enables two-way intercom with Wisenet-enabled client devices and event-triggered audio alerts. Useful for retail loss prevention, access control coordination, or facility announcements without additional audio hardware.
- ONVIF Compliance for Multi-Vendor Integration: Full ONVIF Profile S support means you can mix cameras from any manufacturer—Hanwha, Axis, Hikvision, Uniview, or others—without firmware hacks or middleware layers. This prevents vendor lock-in and lets integrators deploy the optimal camera mix for each site.
Storage & Retention Planning
The WRN-1632-4TB provides 4 TB base storage, expandable to 40 TB with three additional SATA drives. At 250 Mbps sustained throughput and H.265 compression, a fully loaded 40 TB system delivers approximately 15–25 days of continuous 32-channel recording at mixed resolution. Exact retention depends on average bitrate and scene complexity (static scenes compress far better than high-motion retail floors). For compliance environments—retail, healthcare, education—this typically covers 2–3 weeks of 24/7 operation, suitable for incident review and regulatory holds. Longer retention requires external tiered storage, cloud archival, or redundant NVR deployments.
Integration & Compatibility
The WRN-1632-4TB integrates with Wisenet WAVE VMS for advanced search, playback, and event management. Its dual 1 Gbps NICs support failover and multi-site replication, critical for enterprise deployments with geographic redundancy. ONVIF compliance ensures compatibility with third-party IP cameras and VMS platforms. Audio I/O and two-way intercom enable coordination with Hanwha IP intercoms and access control systems. For storage planning, consult a network video recorder sizing guide to calculate exact retention based on your camera mix and local codec settings.
Frequently Asked Questions
Q: What's the maximum storage capacity of the WRN-1632-4TB?
A: The unit ships with 4TB internal storage and supports up to four SATA HDD bays, each accepting drives up to 10TB. Maximum raw storage is 40TB. Drives are hot-swappable, so you can upgrade without powering down the system.
Q: Can I use the WRN-1632-4TB with non-Hanwha cameras?
A: Yes. The NVR is ONVIF Profile S compliant, so it accepts IP camera streams from any manufacturer—Axis, Hikvision, Uniview, and others. You're not locked into a single vendor.
Q: What recording retention do I get with 40TB of storage?
A: Retention depends on bitrate and codec. At 250 Mbps sustained throughput with H.265 compression, a full 40TB system typically provides 15–25 days of continuous 32-channel recording at mixed resolution. Static scenes (parking lots, hallways) compress better and extend retention. For exact retention, calculate based on your average per-camera bitrate and frame rate.
Q: Does the WRN-1632-4TB support AI analytics?
A: Yes. The unit includes an integrated AI metadata processing engine that runs within Wisenet WAVE. It handles object detection, classification, and motion zone analytics. Advanced search and automated alerting reduce manual review time significantly.
Q: What are the network requirements?
A: The WRN-1632-4TB has two separate 1 Gigabit Ethernet ports (WAN and LAN). For 32 simultaneous camera streams at 250 Mbps throughput, you'll need sufficient bandwidth on your network. Dual NIC support allows network segmentation and failover configuration in multi-site deployments.
Q: Can I record audio with the WRN-1632-4TB?
A: Yes. The NVR includes built-in audio input and output, enabling two-way intercom with Wisenet client devices and event-triggered audio alerts. No separate audio interface is required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WRN-1632-4TB hits a practical sweet spot for integrators managing 20–32 camera deployments without the complexity (or cost) of a full distributed edge-recording strategy. That 250 Mbps throughput ceiling and dual 1 Gbps NIC design tell you upfront what this box does well: stable, centralized, multi-vendor recording for mixed-resolution fleets in offices, retail, and light industrial settings. H.265 with Wisestream is the real cost driver here—cutting storage by 40–60% is not theoretical; it directly shrinks your HDD footprint or extends retention without adding drives.
Technical Highlights:
- 250 Mbps Sustained Throughput: Sufficient for 16–20 concurrent 4K 30fps streams or 25–30 HD streams. Means you won't hit ceiling limits on typical mixed-resolution deployments, but don't expect to max out all 32 channels at simultaneous 4K 60fps—that would require 400+ Mbps. Plan your camera mix accordingly.
- H.265 + Wisestream Compression: 40–60% file-size reduction vs. H.264 is material on 24/7 systems. A 40 TB system at H.265 routinely delivers 3+ weeks retention for mixed-res fleets; same system on H.264 drops to 10–15 days. That's a real operational difference for incident hold windows.
- Four-Bay SATA Architecture: Hot-swap capability without powering down the NVR is rare in this price band and invaluable in production environments. You can age out a 4TB drive and drop in 10TB without scheduling downtime. Capacity scale from 4TB to 40TB is clean and non-disruptive.
Deployment Considerations:
- The dual 1 Gbps Ethernet design is smart for network segmentation (WAN/LAN isolation) but it's not a bottleneck fix. At 250 Mbps sustained, you're consuming ~31% of a single 1 Gbps link under full load. Gigabit switches are cheap; network planning is still required, especially if you're replicating to a second site or pulling historical clips over WAN.
- ONVIF compliance is genuine—no vendor lock-in—but Hanwha's Wisenet WAVE software is where you unlock AI analytics and advanced search. Standalone ONVIF playback works, but you lose the metadata engine and alerting if you use a third-party VMS. Budget for Wisenet licensing if analytics matter to your customer.
- Watch the sustained throughput spec: 250 Mbps is the continuous recording limit, not a burst limit. If you're mixing high-bitrate 4K cameras with lower-res side cameras, your average bitrate per camera needs to stay within budget. Wisestream helps here by dynamically reducing bitrate on static scenes, but it's not magic—calculate expected bitrate first.
Position the WRN-1632-4TB for mid-market integrator rollouts and enterprise branch offices where you need centralized recording, multi-vendor camera support, and reasonable retention without exotic storage. It's not a 24/7 high-motion datacenter box (that's a 10 Gbps appliance), and it's not a 4-camera edge device. It's built for the 20–32 camera, 2–4 week retention, network-isolated surveillance sweet spot.
