i-PRO M-WM-JB-MINI-V2 Wall Mount with Junction Box

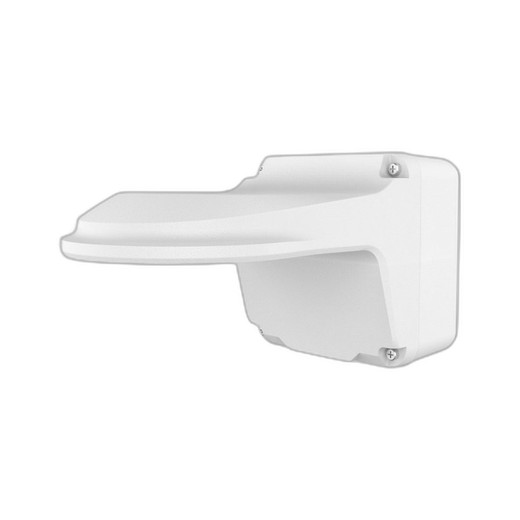

i-PRO M-WM-JB-MINI-V2 Wall Mount with Integrated Junction Box

The M-WM-JB-MINI-V2 is a purpose-built wall-mounting bracket engineered for i-PRO dome IP cameras. It combines die-cast aluminum construction with an integrated junction box to consolidate power, signal, and ground connections at the mounting point—eliminating field splicing work and reducing installation labor on multi-camera deployments. At 1.94 lbs, the compact profile suits both interior and exterior applications without overloading standard wall surfaces.

Key Features

• Die-cast aluminum with powder-coated white finish: Resists corrosion and UV degradation in coastal, humid, and high-contamination environments—meaning you won't need frequent repainting or finish restoration on outdoor surveillance builds. The white color maintains visual consistency with standard architectural schemes, eliminating custom paint orders on campus or institutional rollouts.
• Integrated junction box: Accepts pre-terminated RJ-45 connectors and industry-standard field-terminated power leads, allowing cables to route cleanly into the enclosure rather than splicing at the wall surface. This cuts installation time per camera by consolidating connections in one weatherproofed location.
• Multi-surface anchor support: Fastens securely to concrete, masonry, steel, and wood-frame construction without custom drilling adapters. Critical for retrofit surveillance into mixed building materials—warehouses, older institutional buildings, industrial facilities—where you're retrofitting into whatever wall structure exists.
• Lightweight 1.94 lb design: Installs on drywall studs and light structural supports without reinforcement plates or additional backing. Lowers per-camera installation cost on large rollouts, particularly relevant when deploying 50+ cameras across multiple sites.
• Setback arm geometry: Extends the camera away from the mounting surface, providing optimal lens clearance and minimizing infrared reflection bounce-back—a real problem in dome installations where internal IR LEDs bounce off nearby surfaces and degrade contrast in low-light scenes.
• Compact form factor: At 1.94 lbs with a minimal footprint, the M-WM-JB-MINI-V2 integrates cleanly into tight spaces—soffit mounting, corner installations, or dense multi-camera arrays where larger brackets create visual clutter or mounting conflicts.

Integration and Compatibility

The M-WM-JB-MINI-V2 is engineered specifically for i-PRO dome-form-factor cameras. Verify camera-specific adapter plate compatibility against your camera's installation guide before ordering—different dome models may require different mounting adapters. The integrated junction box accommodates standard RJ-45 connectors and field-terminated power leads, integrating with standard NVR and PoE switch infrastructure without custom adapters. Mounting hardware and fasteners are included; consult local building codes before installation in seismic zones or high-wind regions to verify anchor bolt sizes and load ratings match structural requirements.

Deployment Considerations

This mount is rated for standard commercial wall mounting. For overhead or pendant installations, verify that your camera's weight distribution does not exceed the bracket's horizontal cantilevered load rating—consult the product datasheet for specific carrying capacity limits. The white powder-coated finish will require periodic cleaning in dusty environments (grain facilities, manufacturing plants) to maintain visual consistency. In extreme UV or salt-air environments (coastal industrial sites, marine applications), consider supplemental UV-resistant coating to extend finish life beyond five years of outdoor exposure.

When to Choose a Different Model

If your dome cameras require flush ceiling mounting rather than wall installation, explore recessed ceiling mounts from the i-PRO portfolio. For applications requiring pan-and-tilt repositioning or adjustable-angle installation without re-drilling anchors, consider directional wall-mount brackets designed for post-installation aiming.

Frequently Asked Questions

Q: Is the M-WM-JB-MINI-V2 compatible with all i-PRO dome cameras?

A: The mount is designed for i-PRO dome form factors, but specific camera models may require different adapter plates. Always verify compatibility against your camera's installation documentation before ordering.

Q: What is the maximum camera weight this mount can support?

A: Consult the product datasheet for rated horizontal cantilevered load limits. The bracket's carrying capacity varies based on mounting orientation and anchor type (concrete vs. wood-frame).

Q: Can I mount the M-WM-JB-MINI-V2 on drywall without studs?

A: The 1.94 lb weight allows mounting on drywall studs, but drywall alone without backing will not provide adequate support. Always anchor into solid structure—studs, blocking, or reinforcement plates—per local building codes.

Q: Does the junction box weatherproof the cable connections?

A: The integrated junction box protects connections from direct rain and dust, but it is not hermetically sealed. In extremely wet environments (direct rainfall, high humidity), use standard weatherproof cable glands and silicone sealant around entry points.

Q: What fastener sizes are included?

A: Mounting hardware is included. Verify specific bolt dimensions and anchor types in the product datasheet, as fastener selection depends on the wall material (concrete anchors, wood screws, or steel bolts).

Q: Will the white finish match my building's wall color?

A: The white powder-coat finish is designed for standard architectural compatibility, but exact color match depends on your wall paint specification. Field touch-up paint is available from i-PRO or general suppliers if precise matching is critical.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The M-WM-JB-MINI-V2 is a solid retrofit fit when you're consolidating dome camera cabling at the wall. The integrated junction box eliminates the typical field-splicing mess—no more stripping connectors in the middle of installation. At 1.94 lbs, it's light enough to deploy on drywall studs without reinforcement, which matters when you're rolling out 50+ cameras across multiple sites and labor cost per mount adds up.

Technical Highlights:

• Die-cast aluminum with powder-coated finish: Real corrosion resistance in coastal or wet environments. Outdoor dome mounts degrade fast without proper material—this one holds up without frequent repainting. The white finish also solves the common problem of matching architectural aesthetics without custom paint orders.
• Integrated junction box consolidation: Eliminates field splicing by accepting pre-terminated RJ-45 and power leads in one weatherproofed enclosure. This cuts installation time per camera on large deployments, which is measurable when you're managing labor across 100+ cameras.
• Multi-surface anchor support (concrete, masonry, steel, wood-frame): Real flexibility for retrofit work. You don't need custom drilling adapters or specialist fasteners—bolt it into whatever wall structure you have. Critical for mixed-material buildings (older institutional, industrial, warehouse retrofits) where you can't assume uniform construction.

Deployment Considerations:

• Verify camera-specific adapter compatibility before ordering—different i-PRO dome models use different mounting plates. This is an easy miss that stalls installation.
• The junction box is rain-resistant but not hermetically sealed. In high-humidity or direct-rain exposures, supplement with weatherproof cable glands and silicone sealant around entry points. Don't assume the box alone handles salt-air environments—coastal industrial sites should add supplemental UV-resistant coating to extend finish life beyond five years.
• Wall mounting only—do not use for overhead or pendant installations without verifying the camera's weight against the bracket's horizontal cantilevered load rating. Consult the datasheet for limits.

Deploy the M-WM-JB-MINI-V2 for multi-camera indoor and outdoor retrofit surveillance where you need lightweight, multi-surface mounting, simplified cabling, and fast installation labor. Campus buildings, warehouse perimeter, industrial facility upgrades—anywhere the junction box consolidation saves time and the compact weight eliminates reinforcement overhead.
