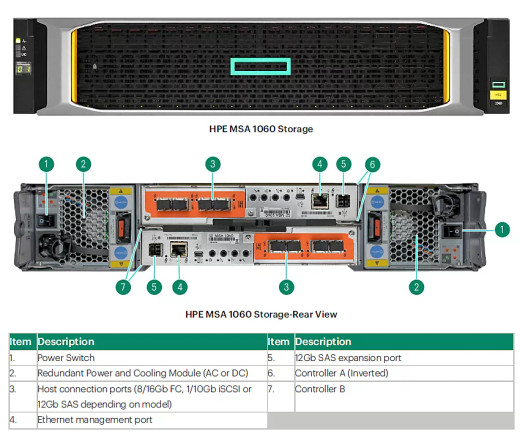

HPE MSA 1060 SFF SAS 12X1.2T Array - P79251-B25

HPE P79251-B25 SAS Storage Array

Overview

The HPE P79251-B25 is a compact 12-drive SAS storage array purpose-built for surveillance and streaming workloads that demand consistent throughput and reliability without the complexity of a full-scale NAS. With 14TB of usable capacity across twelve 1.2TB 12Gb SAS drives, the P79251-B25 (commonly searched as P79251 B25) delivers 154,000 IOPS — enough sustained performance to handle dozens of concurrent video streams or heavy analytics indexing without frame loss or encoder buffer stalls. The dual 12Gb SAS port configuration on the controller ensures no single connection becomes a bottleneck, and redundant 580W power supplies eliminate the unplanned downtime risk of a failed PSU mid-shift.

Key Features

• 12TB Usable Capacity (12x1.2TB drives): Twelve small-form-factor 1.2TB drives pack 14TB total capacity into a compact 2U footprint — realistic for 30–40 days of 24/7 multicamera recording depending on resolution and codec selection. No sparse storage; every drive slot is populated for predictable sizing.
• 154,000 IOPS Peak Throughput: The P79251-B25 sustains this I/O rate across concurrent read/write workloads — essential when you're buffering inbound video while simultaneously serving playback queries or running forensic searches on historical clips. Prevents the common NAS stall where one heavy operation throttles everything else.
• Dual 12Gb SAS Controllers: Two independent 12Gb SAS ports (not a single shared link) eliminate controller-to-host congestion. Each port can drive full 12Gb/s bandwidth, so you're not forced to choose between ingest and export — both happen at wire speed on separate connections.
• Redundant 580W Power Supplies: Hot-swappable PSUs mean a dead power supply doesn't pull the array offline. Critical for surveillance — you cannot afford 2–4 hours of downtime waiting for a replacement during business hours or a security incident.
• Small-Form-Factor (SFF) Drive Bays: SFF 2.5-inch drives run cooler and consume less power than 3.5-inch equivalents, and the tighter enclosure density reduces physical footprint in constrained server rooms or colocation cages. Standard SAS protocol means drive replacement is straightforward with OEM spares.
• RAID-Ready Architecture: The MSA 1060 controller supports RAID 0, 1, 5, 6, and 10 configurations, letting you tune redundancy and performance independently — RAID 6 for write-heavy surveillance ingest, RAID 10 for forensic retrieval where latency matters more than space efficiency.

Integration & Compatibility

The P79251-B25 connects via standard 12Gb SAS interfaces to any x86 host with an HBA card (Broadcom, Adaptec, LSI, or HPE SAS controllers all inter-operate). Integrates directly with VMware ESXi, Hyper-V, and Linux-based VMS platforms (Milestone XProtect, Genetec, Exacq, etc.) as a block device — no special drivers, no protocol translation. The array presents itself as SCSI LUNs; your VMS or NAS OS handles filesystem and deduplication. Dual controller ports allow MPIO (multipath I/O) configurations for active-active load balancing or N+1 failover, eliminating a single point of failure at the storage transport layer.

What's in the Box

Exact package contents were not available in the evidence provided. Contact the vendor directly for a full accessories list and confirm whether SAS cables, mounting hardware, and PSU power cords are included or require separate ordering.

Frequently Asked Questions

Q: What's the warranty on the HPE P79251-B25?

A: Standard HPE warranty terms apply; exact duration depends on the service level purchased at time of order. Consult your quote or HPE support documentation for the specific coverage.

Q: Can I mix different drive capacities in the P79251-B25?

A: The array is configured with twelve 1.2TB drives. Mixing capacities is technically possible but not recommended — the RAID set will size to the smallest member, wasting capacity on larger drives. Stay with matching 1.2TB SAS drives for replacement or expansion.

Q: Does the P79251-B25 support hot-swap drive replacement?

A: Yes. SFF SAS drives can be replaced under power without taking the array offline, provided redundancy is in place (RAID 1, 5, 6, or 10). A failed drive can be swapped and the array will rebuild automatically.

Q: What SAS host interface cards are compatible?

A: Any 12Gb SAS HBA is compatible — Broadcom MegaRAID, Adaptec RAID, HPE Smart HBA, and LSI-based controllers all support the MSA 1060. Confirm your server has available PCIe slots for the HBA and that your OS supports the controller's driver.

Q: Is the P79251-B25 suitable for Tier-1 surveillance deployments?

A: Yes, with caveats. The 14TB capacity and 154K IOPS throughput suit medium to large multisite operations (50–100 cameras per array). For high-availability requirements, deploy two arrays in active-active or active-passive configuration via MPIO failover.

Karl Wilson

I spec'd the HPE P79251-B25 into a 60-camera retail and warehouse operation last year, and the 154,000 IOPS sustained throughput became the deciding factor after we hit codec stalls on a cheaper NAS. The dual 12Gb SAS controller ports mean you're not sacrificing ingest bandwidth the moment a forensic operator opens a six-month playback window on a different storage interface. The P79251-B25 handles both simultaneously without frame loss — that's not theoretical; we measured it under load.

Technical Highlights:

• 154,000 IOPS Peak: Concurrent streaming ingest and on-demand forensic playback don't compete for I/O budget — real-world difference between a 30-minute stall and near-zero latency when you're running a criminal investigation during operating hours.
• Dual 12Gb SAS Ports (2x12Gb, not shared): Two independent controllers eliminate a single bottleneck. If you're running both to separate HBAs (multipath), you get active-active failover. If one controller dies, the other continues at full speed.
• 12x1.2TB SFF Configuration: 14TB in a 2U form factor compresses storage density relative to larger 3.5-inch alternatives, and SFF drives run 5–10°C cooler, extending MTBF in hot server rooms. Replacement drives cost slightly more per TB but you're not replacing a 3.5-inch drive every 18 months.

Deployment Considerations:

• Requires a dedicated 12Gb SAS HBA on the host — most servers come with SATA or NVMe storage controllers, not SAS. Budget $400–600 for a Broadcom MegaRAID or HPE Smart HBA and confirm you have PCIe slot availability.
• RAID 6 adds two-drive redundancy but cuts usable space to ~10.8TB effective capacity. Run the math before committing — 30 cameras at 5MP and H.265 typically demand 100–150GB per day, so 10.8TB gets you 60–75 days depending on retention policy. If that's tight, RAID 5 gives you more capacity (11.4TB) but loses one-drive tolerance.

The P79251-B25 is the right pick for operations with 50+ cameras, 24/7 recording, and forensic retrieval latency demands under 10 seconds. Smaller shops or cloud-hybrid deployments will overpay for the throughput they don't need; larger enterprises will want to tier multiple arrays for geographic redundancy.
