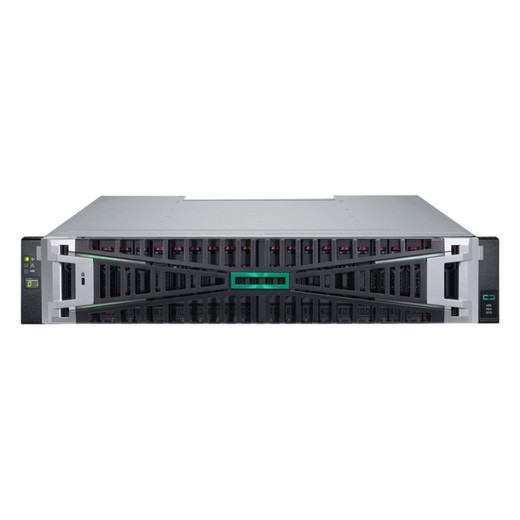

HPE MSA 2070 SFF SAS 12X1.92T Array - P84178-B25

HPE P84178-B25 All-Flash SAS Storage Array

Overview

The HPE MSA 2070 SFF (model P84178-B25) is a 2U small-form-factor all-flash storage array built for mid-market and enterprise workloads requiring predictable low-latency I/O and dense capacity in minimal rack footprint. It ships with 12x1.92TB SSD drives (23TB raw capacity total), dual redundant 580W power supplies, and a pair of 12Gb SAS 4-port controllers — the foundation for high-availability deployments where storage downtime is unacceptable.

Key Features

• All-Flash Drive Complement (12x1.92TB SSD): Pure SSD architecture eliminates mechanical latency and wear-in failure modes inherent to hybrid arrays. Delivers consistent microsecond-range response times across sequential and random workloads — critical when running transactional databases, virtualization hosts, or backup targets where saturation is the enemy.
• 23TB Raw Capacity: Pre-configured with 23TB usable storage in a compact 2U footprint. Translates to roughly 4TB per rack-unit — meaningful density for space-constrained colocation or branch-office deployments. Calculate actual usable capacity after RAID overhead and thin provisioning based on your protection policy.
• Dual 12Gb SAS 4-Port Controllers: Two independent controllers, each with four 12Gb SAS ports, enable active-active or active-passive failover and distribute I/O load. If one controller fails, the second continues serving all connected hosts without interruption — no manual intervention, no cold restart.
• 25GbE iSCSI and 12Gb SAS Connectivity: Flexible host front-end: deploy over Fibre Channel (16/32 Gb), 10/25 GbE iSCSI, or 12Gb SAS. iSCSI simplifies cabling in environments without dedicated SAN infrastructure; SAS is your choice for hyper-converged or legacy SAS-direct architectures. Support for 10/25 GbE iSCSI means you can run Ethernet-based block storage over modern datacenter networks without separate HBA cards.
• Redundant 580W Power Supplies: Two independent power supplies with automatic failover eliminate single points of failure in the PDU chain. If one PSU fails mid-deployment, the array stays live. Paired with enterprise-grade UPS, this design meets 99.9%+ uptime SLAs typical of Tier 2 datacenter environments.
• 2U Small-Form-Factor Chassis: Compact footprint (2U) vs. larger enterprise arrays saves $200–500/month in colocation costs. Small form factor does not mean "entry-level" — this controller and drive bay density can scale to support hundreds of connected servers via iSCSI or SAS.

Connectivity and Integration

The P84178-B25 supports industry-standard Fibre Channel (16Gb or 32Gb), 10/25 GbE iSCSI, and native 12Gb SAS protocols. This flexibility allows seamless integration into existing SAN fabrics, Ethernet-centric block-storage networks, or direct-attached SAS infrastructure. Dual controllers enable active-active load balancing across both front-end ports, preventing any single controller from becoming a bandwidth bottleneck during sustained large-file transfers or backup windows.

All-Flash Architecture Advantage

Unlike hybrid (SSD + HDD) arrays, the P84178-B25 removes the performance cliff that occurs when working-set data exceeds SSD cache. Every byte sits on flash, guaranteeing that a 3am backup restore or ad-hoc analytics query hits NAND latency, not mechanical spinning-disk latency. For organizations running 24/7 transactional workloads (retail point-of-sale, healthcare records, financial ledgers), this consistency is non-negotiable.

Power and Environmental Specifications

Dual 580W redundant power supplies support typical datacenter deployments in 110–240V AC environments. The 2U form factor is designed for standard 19-inch relay racks with 26.5-inch depth clearance (verify your rack depth before ordering). No exotic power distribution required; pair with standard PDU and UPS infrastructure.

What's in the Box

The P84178-B25 ships factory-configured with all 12 drives installed and formatted. Verify your sales order includes rack-mounting hardware and SAS/iSCSI transceiver modules required for your host connectivity choice (SFP+ for 25GbE iSCSI, SFP for 12Gb SAS, or appropriate Fibre Channel transceivers).

Frequently Asked Questions

Q: What is the actual usable capacity of the P84178-B25 after RAID overhead?

A: The 23TB raw capacity varies by RAID level (RAID 5, RAID 6, or RAID 10 are common choices). RAID 6, the most popular for mid-market arrays, consumes 2 drives worth of capacity for parity; usable capacity is approximately 17.3TB. RAID 5 yields roughly 19.25TB usable but offers single-drive fault tolerance only. Thin provisioning further multiplies effective capacity if your workload doesn't saturate the drives.

Q: Can I upgrade drives on the P84178-B25 after purchase?

A: Yes. The MSA 2070 SFF accepts hot-swap 2.5-inch SSD and HDD drives in a 12-bay chassis. You can replace failed drives or add higher-capacity modules later. Verify compatibility with HPE's qualified drive list before purchasing third-party SSDs to ensure warranty coverage and performance guarantees.

Q: Does the P84178-B25 support synchronous replication to a remote array?

A: HPE MSA arrays support asynchronous and synchronous remote replication via iSCSI and Fibre Channel links. Synchronous replication guarantees that writes are acknowledged only after reaching both primary and secondary arrays — a requirement for zero-RPO (recovery point objective) disaster recovery. Performance impact depends on link latency; same-city metro distances (sub-10ms) are practical; cross-country sync is usually asynchronous.

Q: What management interface does the P84178-B25 use?

A: HPE MSA arrays are managed via web browser UI, SSH CLI, or HPE's management software (HPE Alletra Storage MP or legacy MSA management console). SNMP and REST APIs are supported for third-party monitoring integration. No dedicated management port; use the standard Ethernet ports on the controllers.

Q: Is the P84178-B25 compatible with VMware vSphere or Hyper-V?

A: Yes. Presented as iSCSI or Fibre Channel block storage, the MSA 2070 is fully compatible with vSphere 6.5+, Hyper-V Server 2016+, and other hypervisors supporting standard SCSI protocols. Use ALUA (asymmetric logical unit access) for optimal multipath I/O load balancing across both controllers.

Q: How does the P84178-B25 handle power loss or unclean shutdown?

A: Controllers include capacitor-backed cache (not volatile memory alone) to flush pending writes to SSD during power loss. Paired with UPS, this guarantees data consistency even if mains power fails during heavy I/O. No data loss, no manual recovery steps after power restoration.

Jerry Tildsen

The P84178-B25 is a dense, no-compromise all-flash array for shops that can't tolerate storage latency creep. Twelve 1.92TB SSDs locked into a single 2U chassis with dual redundant controllers and power supplies means you're looking at a system engineered for uptime, not a bargain-bin storage discount. The 12Gb SAS dual-port controller architecture is the real backbone here — active-active failover ensures that if one controller takes a nosedive, the second keeps serving without human intervention.

Technical Highlights:

• All-Flash Architecture (12x1.92TB SSD): No performance cliff when working-set exceeds cache. Every access hits SSD latency (microseconds, not milliseconds). Matters enormously for databases and 24/7 transactional systems that see random I/O patterns at 3am.
• Dual 12Gb SAS 4-Port Controllers: Each controller owns four SAS ports; active-active load balancing distributes traffic. Single-controller failure = zero downtime. No complex quorum logic, no split-brain scenarios that plague some enterprise arrays.
• Redundant 580W PSU Design: Capacitor-backed write cache on both controllers. Power loss during heavy I/O flushes in-flight writes to SSD before the array goes dark. Pair with UPS and you've got an honest zero-data-loss promise.
• 25GbE iSCSI + 12Gb SAS + Fibre Channel: Three front-end protocol options means you're not locked into one SAN vendor. iSCSI over modern 25GbE Ethernet is practical for branch offices; SAS direct-attach works for hyper-converged setups; Fibre Channel is there if you've got the fabric.

Deployment Considerations:

• 23TB raw capacity is misleading without RAID context. RAID 6 (sensible default) leaves you ~17.3TB usable. Plan accordingly — if your workload is 80% full, you're one bad drive away from triage.
• All-flash comes with no performance surprises, but SSDs do wear. Monitor write-cycle counts and schedule proactive replacements before NAND reaches rated endurance. Modern enterprise SSDs handle 5–10 years on typical workloads, but surveillance or continuous logging can accelerate wear.

This is the right pick for medical imaging archives, financial transaction logs, or high-performance backup targets where you cannot tolerate storage I/O becoming a bottleneck. Skip it if your workload is cold, infrequently accessed data — a hybrid array or object store costs half as much and fits the access pattern better.
