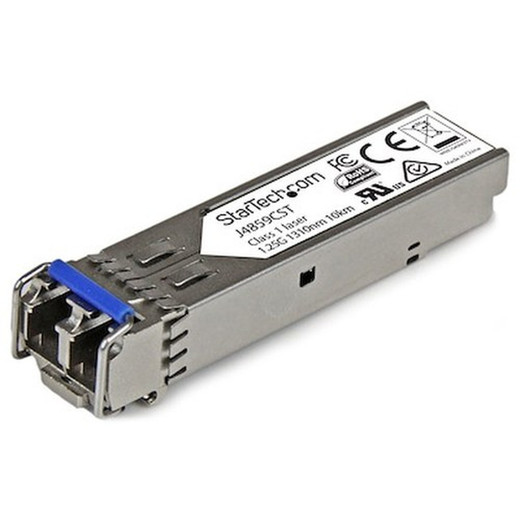

StarTech J4859CST HPE-Compatible 1000BASE-LX SFP Gigabit Fiber Module

Overview

The StarTech J4859CST is a 1000BASE-LX SFP transceiver engineered as a drop-in compatible replacement for HPE J4859C, delivering 1.25 Gbps full-duplex Gigabit Ethernet over both single mode and multimode fiber. If you're expanding an HPE-based switching infrastructure and need to avoid vendor-locked OEM pricing without sacrificing compatibility, this module is worth a close look. It supports LC connections, operates at 1310nm, and draws under 1 watt — fitting cleanly into power-conscious switch port budgets. For IT architects managing network switches in campus, data center, or commercial security backbones, the J4859CST offers a straightforward path to extending fiber links without pulling new cable or respecifying existing HPE gear.

Key Features

• Dual Fiber Mode Support (SM and MM): The J4859CST runs up to 10 km (6.2 miles) on single mode fiber and up to 1 km (0.6 miles) on multimode — meaning you can use one part number whether you're connecting buildings across a campus on OS2 SMF or spanning floors on OM1/OM2 MMF. Fewer SKUs to manage in your spares inventory.
• 1.25 Gbps Full-Duplex Throughput: Runs the full IEEE 802.3z 1000BASE-LX standard at line rate. No negotiated half-duplex fallback — both directions carry simultaneous 1Gbps traffic, which matters on uplinks where asymmetric throughput creates latency spikes on VoIP or live video feeds.
• 1310nm Wavelength: The 1310nm transmit wavelength is the standard for 1000BASE-LX deployments. It's compatible with single mode patch cables already installed in the vast majority of structured cabling environments, so you're not repatching anything to make this work.
• Sub-1W Power Consumption: At under 1 watt per port, this module won't meaningfully impact your switch's thermal envelope or PoE power budget. On a 48-port chassis fully populated with SFP uplinks, aggregate transceiver draw stays well below what most power supplies account for in headroom calculations.
• 3.3V DC Operating Voltage: Compatible with standard SFP cage power rails found in HPE ProCurve and Aruba switch families. No voltage conversion required — plug in and the module draws what it needs directly from the host switch.
• MTBF of 3,092,408 Hours: That works out to over 353 years of theoretical mean time between failures. In practice, this spec signals component-level quality discipline — relevant if you're deploying in unmanned IDF closets or remote surveillance network nodes where a failed uplink transceiver means a truck roll.
• Operating Temperature 0°C to 70°C (32°F to 158°F): Covers standard commercial and enterprise environments including telecom closets and wiring rooms. If you're deploying in outdoor enclosures or unheated facilities that drop below freezing, verify your installation environment stays within this range — this is a commercial-grade, not industrial-grade, thermal rating.
• LC Connector Interface: LC duplex is the dominant connector type in modern enterprise fiber installations. No adapters needed in most deployments — connect directly to your fiber patch panel or structured cabling plant.

Integration & Compatibility

The J4859CST is designed to be compatible with HPE networking equipment that accepts J4859C SFP modules, including HPE ProCurve and Aruba switch families that support 1000BASE-LX transceivers. It conforms to IEEE 802.3z 1000BASE-LX standards, which is the baseline specification for interoperability. For security integrators deploying IP cameras over fiber backbone links, this module fits the uplink side of the switching layer — pairing it with a PoE switch on the access layer is the standard architecture for fiber-fed camera distribution. Review your network infrastructure documentation to confirm SFP cage compatibility with your specific HPE switch model before ordering. The module operates in full-duplex mode only, consistent with 1000BASE-LX standard behavior. Storage temperature tolerance of -40°C to 85°C means the module survives shipping and warehousing in extreme climates without risk of cold-soak damage before installation.

Frequently Asked Questions

Q: What is the maximum fiber distance supported by the J4859CST?

A: Up to 10 km (6.2 miles) on single mode fiber and up to 1 km (0.6 miles) on multimode fiber, using an LC duplex connector at 1310nm wavelength.

Q: Is the J4859CST compatible with HPE ProCurve and Aruba switches that use the J4859C SFP?

A: The J4859CST is designed as a compatible replacement for the HPE J4859C. It meets IEEE 802.3z 1000BASE-LX specifications. Confirm your specific switch model accepts third-party SFP transceivers before deployment, as some HPE firmware versions may require configuration to enable non-OEM modules.

Q: Does the J4859CST support half-duplex operation?

A: No. The J4859CST operates in full-duplex mode only, consistent with the 1000BASE-LX standard. Half-duplex is not supported at gigabit speeds under IEEE 802.3z.

Q: What fiber type should I use with this module?

A: Single mode fiber (OS1/OS2) for runs up to 10 km; multimode fiber (OM1/OM2) for runs up to 1 km. The LC duplex connector mates with standard LC-LC fiber patch cables used in most enterprise structured cabling installations.

Q: What is the operating temperature range of the J4859CST?

A: 0°C to 70°C (32°F to 158°F) operating, -40°C to 85°C (-40°F to 185°F) storage. This is a commercial-grade thermal rating, suitable for conditioned equipment rooms and standard IDF closets.

Q: How much power does the J4859CST consume?

A: Under 1 watt at 3.3V DC. Power draw is negligible relative to switch power supply capacity and will not impact PoE budget calculations for the host switch.

Marty Allison

The spec I always point integrators to first on the J4859CST is the MTBF: 3,092,408 hours. That's not a marketing number — it reflects component selection and burn-in discipline that matters when you're dropping transceivers into IDF closets or remote fiber aggregation nodes that nobody physically visits unless something breaks. If your architecture depends on a reliable fiber uplink and a failed SFP means a site going dark, that MTBF figure is the one to put in front of your customer.

Technical Highlights:

• Dual-Mode Fiber Support: 10 km on single mode, 1 km on multimode — one SKU covers both campus backbone runs and in-building riser segments without sourcing two different transceivers.
• Sub-1W Power Draw at 3.3V DC: Insignificant thermal and electrical load on the host switch. On a fully loaded 48-port chassis, total SFP transceiver draw stays well within standard power supply headroom.
• Full-Duplex 1.25 Gbps: Line-rate gigabit in both directions simultaneously — no negotiation artifacts that can introduce jitter on real-time traffic like live video streams from IP cameras feeding through fiber uplinks.

Deployment Considerations:

• Verify your HPE switch firmware allows third-party SFP modules — some HPE ProCurve and Aruba firmware versions log warnings or require a CLI override (no-check) to activate non-OEM transceivers. Test one port before deploying across a full chassis.
• Operating temperature ceiling is 70°C — appropriate for conditioned IDF closets, but not for outdoor enclosures or unheated spaces in cold climates without supplemental heating. Storage tolerance goes to 85°C, but that doesn't extend the operating envelope.

The J4859CST is the right call for HPE-based enterprise switching infrastructure where you need cost-effective fiber uplinks on 1000BASE-LX runs — particularly in multi-building campus deployments where single mode runs span distances that copper can't touch and OEM transceiver costs add up fast across dozens of switch uplinks.
