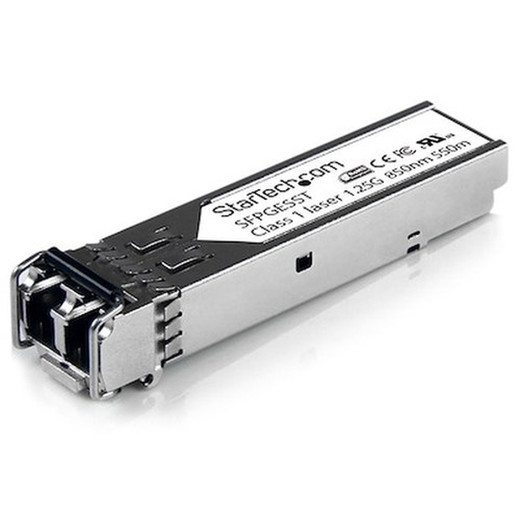

StarTech SFPGESST Cisco-Compatible 1000BASE-SX Multimode SFP Module

Overview

The StarTech SFPGESST is a Cisco SFP-GE-S compatible 1000BASE-SX gigabit SFP transceiver engineered for multimode fiber deployments where swapping in a third-party module needs to be a non-event. It runs at 1.25 Gbps over OM1, OM2, or OM3 multimode fiber and reaches 550 meters — enough to span most campus buildings, warehouse floors, or multi-floor security head-end runs without an intermediate switch. If your Cisco infrastructure has open SFP slots and you need to extend fiber-based gigabit connectivity without paying OEM pricing on every port, this is a practical, standards-compliant option to consider.

Key Features

• 1.25 Gbps over 1000BASE-SX (IEEE 802.3z): Full gigabit throughput on multimode fiber — enough headroom for aggregating multiple IP camera streams, NVR uplinks, or access control backhaul without saturating the link under normal multi-device load.
• 550m (1,804 ft) reach on multimode fiber: Covers the distance between most IDF closets and MDF head-ends in mid-size commercial buildings without requiring single-mode infrastructure. If your runs are pre-existing OM1 or OM2 plant, this transceiver will work on them.
• 850nm wavelength, LC duplex connector: The 850nm shortwave specification is the universal multimode standard — compatible with the LC patch panels already installed in the majority of enterprise and commercial buildings. No adapter sleeves, no connector conversions needed.
• Half and full-duplex operation: Full-duplex at gigabit speeds is the expected mode for switch-to-switch and switch-to-NVR links, but half-duplex fallback is available if the connected device negotiates it. In practice, every modern security appliance runs full-duplex.
• Under 1W power draw: Draws less than 1W from the host switch's SFP slot — essentially invisible to any PoE or power budget calculation. Even a fully populated 24-port switch sees negligible added load from this transceiver.
• 3.3V DC operating voltage: Matches the standard SFP electrical interface spec, so no voltage mismatch or compatibility concern with properly manufactured Cisco-compatible slots.
• MTBF of 3,381,761 hours: That works out to roughly 386 years of theoretical mean-time-between-failures — a reliability figure that reflects the simplicity of passive optical transceivers. Real-world failure rates on fiber SFPs are low; the MTBF here is consistent with that.
• Operating temperature 0°C to 70°C (32°F to 158°F): Covers standard commercial and data-center environments. Note: this is a commercial-grade temperature rating, not an industrial extended-temp module. If the SFP slot is in a wiring closet that regularly exceeds 70°C, consider airflow improvements before deploying any commercial-grade transceiver here.
• Compact form factor — 60mm × 12mm × 10mm, 17g: Standard SFP footprint slots directly into any Cisco SFP-GE-S-compatible port. No modification, no bracket, no tools beyond what you'd use for any SFP.

Integration and Compatibility

The SFPGESST is designed as a drop-in replacement for the Cisco SFP-GE-S transceiver in Cisco Catalyst, Nexus, ASR, and ISR platforms that accept standard 1000BASE-SX SFP modules. The module identifies itself to the host switch using the standard SFP MSA EEPROM coding expected by Cisco IOS and IOS-XE — in most deployments, the switch accepts it without error. That said, some Cisco platforms enforce DOM (Digital Optical Monitoring) checks or strict OUI vendor validation at the firmware level; on those platforms, a non-Cisco module may generate a syslog warning or, in rare cases, require the service unsupported-transceiver CLI command to be enabled. This is a known Cisco behavior — not a defect in the module. Confirm your platform's transceiver policy before deploying across a large install.

For network switches sourcing and related SFP-compatible infrastructure, third-party transceivers like the SFPGESST are a common cost management strategy when OEM pricing is a factor on high-port-count deployments. Pair with appropriate multimode fiber patch cables terminated with LC connectors on both ends. Review your fiber plant's modal bandwidth rating — OM1 supports 550m at 1G, OM2 and OM3 exceed that rating comfortably.

Frequently Asked Questions

Q: Will the SFPGESST work in a Cisco Catalyst switch without generating compatibility warnings?

A: In most cases yes, but some Cisco IOS versions enforce OEM transceiver checks and will log a warning when a non-Cisco SFP is inserted. You may need to issue the service unsupported-transceiver command on those platforms. The module itself is IEEE 802.3z 1000BASE-SX compliant and electrically compatible.

Q: What fiber type does the SFPGESST require?

A: It requires multimode fiber with LC duplex connectors. The 850nm wavelength and 550m maximum reach are optimized for OM1, OM2, and OM3 multimode fiber. It is not compatible with single-mode fiber.

Q: What is the maximum transmission distance of the SFPGESST?

A: 550 meters (1,804 feet) over multimode fiber at 1 Gbps, per the IEEE 802.3z 1000BASE-SX specification.

Q: How much power does the SFPGESST consume?

A: Less than 1W from the host switch's SFP slot at 3.3V DC — well within the power budget of any standard SFP port.

Q: Is the SFPGESST hot-swappable?

A: Standard SFP modules are designed for hot-swap insertion and removal per the SFP MSA specification. Confirm your specific switch platform supports hot-swap before removing a live port in production.

Q: What operating temperature range does the SFPGESST support?

A: 0°C to 70°C (32°F to 158°F) during operation. Storage temperature extends from -40°C to 85°C (-40°F to 185°F).

Marty Allison

The SFPGESST comes up regularly in multi-building security deployments where the fiber plant is already in and the Cisco switch infrastructure is already in place — the only question is whether to pay OEM transceiver pricing on every open port. With an MTBF of 3,381,761 hours and sub-1W power draw, this module is not a reliability gamble; it is a straightforward 1000BASE-SX transceiver that meets IEEE 802.3z and fits the electrical spec of a Cisco SFP-GE-S slot.

Technical Highlights:

• 550m multimode reach: At 850nm over OM1 or better fiber, 550m covers the span between most IDF wiring closets and central head-ends in commercial buildings — no repeater needed for typical campus security backhaul runs.
• Sub-1W power consumption at 3.3V DC: On a 24-port switch with a full SFP population, total transceiver overhead stays under 24W — negligible in any realistic power budget discussion with a facilities team.
• Commercial operating range 0°C to 70°C: Appropriate for conditioned equipment rooms and standard data closets. This is not an industrial-temp module — flag it for your team if the closet lacks climate control and runs hot in summer.

Deployment Considerations:

• On Cisco platforms with strict SFP validation (common on newer IOS-XE releases), issue service unsupported-transceiver before insertion to avoid port shutdown. This is a one-time CLI step per switch, not a per-port workaround.
• Verify fiber terminations are LC duplex — not SC or ST — before staging. Incorrect connector type is the most common physical incompatibility on mixed-vintage fiber plants.

The SFPGESST is a practical fit for security integrators populating Cisco switches in multi-building campus deployments where multimode fiber runs to IDF closets are already in place and OEM transceiver cost per port is a real line-item on the project budget.
