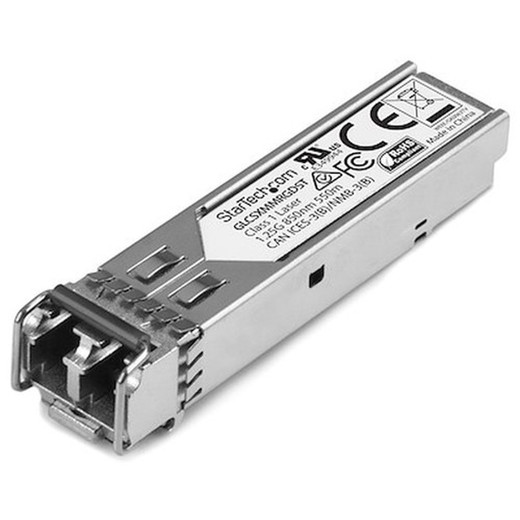

StarTech GLCSXMMRGDST Cisco-Compatible 1000BASE-SX SFP Transceiver Module

Overview

The StarTech GLCSXMMRGDST is a Cisco GLC-SX-MM-RGD compatible 1000BASE-SX SFP transceiver designed for multimode fiber links at 1 Gbps. If you're building or expanding a Gigabit Ethernet backbone using Cisco switching infrastructure and need a proven, field-tested alternative to an OEM module, this is a direct-fit replacement that meets the same IEEE 802.3z specification at a predictable cost. It operates at 850 nm wavelength over multimode fiber with LC connectors — the standard pairing for in-building horizontal runs and campus backbone segments where distances stay under 550 m. The GLCSXMMRGDST is a particularly useful choice in environments where temperatures swing hard: an extended operating range of -40°C to 85°C makes it viable in industrial switch enclosures, outdoor-rated cabinets, and any closet where HVAC is inconsistent or absent.

Key Features

• 1.25 Gbps Maximum Data Rate: Runs full 1000BASE-SX Gigabit Ethernet with headroom above the 1 Gbps network rate — the 1.25 Gbps physical layer rate accounts for 8b/10b line encoding overhead, so your actual traffic throughput is a clean 1 Gbps without any rate compromise.
• 550 m Maximum Transfer Distance: Covers the full length of most in-building multimode runs. A standard OM2 or better 50 µm multimode cable between your IDF and MDF comfortably falls within this range. If your fiber runs exceed 550 m, you'll need a single-mode alternative — multimode physics won't stretch further reliably.
• 850 nm Wavelength, LC Connector: The 850 nm short-wavelength VCSEL source is the industry default for multimode SX links and pairs directly with any standard LC-to-LC OM1/OM2/OM3/OM4 patch cord. No special fiber type or polished connector required — whatever duplex LC infrastructure is already in place will work.
• -40°C to 85°C Operating Temperature: Most data-center-grade SFPs are only rated to 70°C at the module. This extended industrial range means the GLCSXMMRGDST holds specification in switch rooms without climate control, rooftop enclosures, or warehouse distribution environments where ambient temperatures regularly push past the 70°C ceiling of standard modules.
• Full-Duplex Operation: Simultaneous transmit and receive on separate fiber strands — required for 1000BASE-SX. There is no half-duplex mode to misconfigure, which simplifies deployment in managed switch environments where port negotiation errors can cause hard-to-diagnose throughput drops.
• Under 1 W Power Consumption: At sub-1 W draw from a 3.3 V DC supply, this module adds negligible load to your switch's SFP power budget. In a 48-port chassis with all SFP slots populated, the aggregate thermal and power impact from these transceivers is minimal — a real consideration when you're calculating switch power budgets for PoE-heavy deployments.
• MTBF of 3,381,761 Hours: That's roughly 386 years of calculated mean time between failures. In practice, MTBF is a statistical reliability indicator rather than a service life guarantee, but this figure indicates the module is engineered for continuous 24/7 operation without scheduled replacement cycles — appropriate for backbone links in surveillance NVR rooms, access control head-end closets, and similar always-on infrastructure.
• IEEE 802.3z 1000BASE-SX Compliance: Conformance to the 802.3z standard ensures interoperability with any 802.3z-compliant switch port — not limited to Cisco. While this module is specifically coded and tested as a GLC-SX-MM-RGD compatible for Cisco equipment, the underlying standard compliance means it's relevant across multi-vendor environments where Cisco is the dominant brand.

Integration and Compatibility

The GLCSXMMRGDST is coded specifically for compatibility with Cisco switches and routers that accept the GLC-SX-MM-RGD SFP form factor. This includes Cisco Catalyst, Nexus, and ISR platforms that perform transceiver vendor validation at boot — the module is programmed to pass that check. On non-Cisco equipment, behavior depends on whether the switch enforces vendor locking; in most open-standard environments the physical 1000BASE-SX link will establish normally. The LC duplex interface connects to standard 50 µm or 62.5 µm multimode fiber infrastructure — 50 µm OM3 or OM4 is recommended if you're targeting the full 550 m distance. For network designs involving PoE switch deployments where uplink slots are at a premium, this module slots into any standard SFP cage without requiring a dedicated uplink license on most Cisco platforms. If your deployment involves IP security cameras or other bandwidth-intensive edge devices aggregating to a Gigabit core, a 1 Gbps fiber uplink via this SFP provides isolation from copper-length limitations and eliminates ground-loop interference between buildings. For longer campus runs or single-mode fiber plant, consider a 1000BASE-LX/LH SFP instead — the SX variant's 550 m ceiling is a hard physics boundary on multimode, not a configuration limit. See our SFP modules catalog for single-mode and long-reach alternatives.

Frequently Asked Questions

Q: Is the GLCSXMMRGDST compatible with Cisco Catalyst switches that enforce GLC-SX-MM-RGD vendor ID checking?

A: Yes. The GLCSXMMRGDST is programmed to present the Cisco GLC-SX-MM-RGD compatible vendor ID and EEPROM data, so it passes Cisco's transceiver validation on platforms that enforce it. Always verify against your specific Cisco IOS or NX-OS version requirements for your switch model.

Q: What fiber type and maximum distance does the GLCSXMMRGDST support?

A: The module operates over multimode fiber (OM1 through OM4) using duplex LC connectors at 850 nm. Maximum transfer distance is 550 m — achievable on OM2 50/125 µm or better. On OM1 62.5 µm fiber, maximum reliable distance is typically shorter (around 220 m per IEEE 802.3z). If your run exceeds 550 m or you have a single-mode plant, you need a 1000BASE-LX SFP instead.

Q: What is the operating temperature range of the GLCSXMMRGDST?

A: The GLCSXMMRGDST is rated -40°C to 85°C operating temperature. This extended industrial range sets it apart from standard commercial SFPs (typically 0°C to 70°C) and makes it suitable for uncontrolled environments such as industrial switch cabinets, outdoor-rated enclosures, and warehouse infrastructure where temperature extremes are common.

Q: Does the GLCSXMMRGDST work in non-Cisco switches?

A: The module is coded and marketed specifically as a Cisco GLC-SX-MM-RGD compatible replacement. On switches that do not enforce vendor locking, the underlying 1000BASE-SX / IEEE 802.3z compliance means the optical link will generally establish normally. However, compatibility with specific non-Cisco platforms is not guaranteed and should be verified before deployment.

Q: How much power does the GLCSXMMRGDST draw, and what voltage does it require?

A: The module consumes less than 1 W and operates at 3.3 V DC, supplied directly by the host switch's SFP cage. No external power is needed, and the sub-1 W draw means minimal impact on switch power budgets even in fully populated chassis.

Q: What is the MTBF rating of the GLCSXMMRGDST?

A: The published MTBF is 3,381,761 hours — a statistical reliability figure indicating the module is engineered for continuous 24/7 operation. This supports deployment in backbone and infrastructure roles where unplanned downtime is costly.

Karl Wilson

The spec that drives most of my recommendations for the GLCSXMMRGDST is that -40°C to 85°C extended temperature rating. Standard commercial SFPs top out at 70°C, which sounds like enough until you're dealing with a Cisco Catalyst in an unventilated IDF closet during a summer heat event or a wall-mount enclosure in a loading dock. The GLCSXMMRGDST holds its 1000BASE-SX performance across that full extended range — no derating, no link instability at high ambient temperatures.

Technical Highlights:

• Extended Temperature Range (-40°C to 85°C): 15°C of thermal headroom beyond standard commercial modules — directly relevant in industrial, warehouse, and outdoor-cabinet deployments where closet temperatures aren't controlled.
• MTBF 3,381,761 Hours: Statistical reliability figure supporting 24/7 backbone duty; means no planned replacement cycles in typical infrastructure lifecycle windows of 5–7 years.
• Sub-1W Power at 3.3V DC: In a fully populated 48-port chassis with multiple SFP uplinks, aggregate thermal load from transceivers matters. Under 1 W per module keeps the math clean when sizing chassis cooling and PDU capacity.

Deployment Considerations:

• The 550 m distance ceiling is a hard limit on multimode fiber — if your campus backbone runs are longer, you need a 1000BASE-LX SFP over single-mode fiber, not this module. Measure your fiber runs before ordering.
• While the GLCSXMMRGDST is coded for Cisco GLC-SX-MM-RGD compatibility, Cisco periodically updates IOS and NX-OS to tighten third-party transceiver validation. Confirm your switch firmware version accepts compatible SFPs before deploying at scale.

For a physical security network where Cisco switching feeds a network video recorder room via in-building multimode fiber runs under 550 m, and that switch room sees variable or elevated ambient temperatures, the GLCSXMMRGDST delivers the right combination of Cisco compatibility and industrial thermal tolerance without paying OEM pricing for every uplink port.
