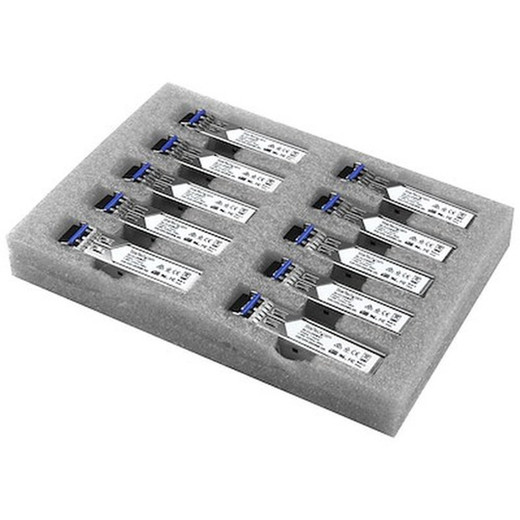

StarTech GLCLHSM10PST Cisco-Compatible 1000BASE-LX/LH SFP Fiber Module

Overview

The StarTech GLCLHSM10PST is a 1.25 Gbps SFP transceiver designed as a drop-in compatible replacement for Cisco's GLC-LH-SM, supporting 1000BASE-LX/LH operation over single-mode fiber at up to 10 km (6.2 mi). It operates at 1310nm wavelength in full-duplex mode over an LC duplex connector interface — making it a practical choice for campus backbone runs, inter-building fiber links, and IP surveillance infrastructure where you need to bridge distance between a core switch and a remote network switch or NVR closet without running copper.

At under 1W power draw, this module won't meaningfully affect your switch's power budget. The form factor is standard SFP — 2.2 in long, 0.5 in wide, 0.9 oz — so it slots into any cage-style SFP port without clearance concerns. MTBF of 3,092,408 hours means the reliability math is squarely in your favor for long-term installations.

Key Features

• 10 km Single-Mode Reach: Covers inter-building fiber runs up to 10 km (6.2 mi) on standard single-mode fiber — enough headroom for most campus-scale deployments. If your link is shorter than 550m and you're pulling multi-mode, this module handles that too, giving you flexibility when fiber plant types are mixed.
• 1310nm Wavelength, 1.25 Gbps Throughput: The 1310nm operating wavelength is the standard for 1000BASE-LX/LH runs on single-mode. Full 1.25 Gbps throughput on a gigabit link means you're not leaving bandwidth on the table — relevant when aggregating multiple IP camera streams or high-bitrate NVR feeds over a single fiber uplink.
• Full-Duplex Operation: Simultaneous transmit and receive at full line rate — no half-duplex collisions, no throughput degradation under bidirectional traffic load. This matters on links carrying both video ingest and management traffic.
• Sub-1W Power Consumption: Drawing under 1W, the GLCLHSM10PST imposes negligible thermal and power load on the host switch. In a dense chassis or stack with many occupied SFP ports, this adds up to real savings in aggregate power draw and cooling.
• LC Duplex Connector: LC duplex is the dominant connector type on modern single-mode fiber plant and patch panels. No adapter required in the vast majority of enterprise and commercial installations.
• Wide Operating Temperature Range: Rated 0°C to 70°C (32°F to 158°F) operating and -40°C to 85°C (-40°F to 185°F) storage. The operating range covers standard indoor data closets and IT rooms; the wide storage range means units can be warehoused through seasonal temperature swings without degradation.
• 3,092,408-Hour MTBF: That figure translates to roughly 353 years of theoretical mean time between failures — a number that reflects optical transceiver reliability at this power and distance class. For long-haul inter-building links where a transceiver swap means a truck roll or ladder climb, high MTBF matters.
• IEEE 802.3z Compliant: Built to the 1000BASE-LX/LH standard, so interoperability with standards-compliant switches and media converters is not a guessing game. The standard compliance also simplifies procurement approvals in environments with strict vendor-neutral policy.

Integration and Compatibility

The GLCLHSM10PST is engineered for Cisco switch compatibility, functioning as a coded replacement for the Cisco GLC-LH-SM. This is the key compatibility claim to verify for your specific chassis — Cisco platforms that enforce SFP coding will recognize this module. For non-Cisco gear, the module is IEEE 802.3z compliant and will operate in any standards-compliant SFP slot, but the primary design target is Cisco infrastructure.

This module operates on both single-mode and multi-mode fiber. Single-mode delivers the full 10 km range. On multi-mode, reach is significantly shorter — verify your fiber plant type before assuming maximum distance. It integrates naturally into managed PoE switches with SFP uplink ports, making it straightforward to extend IP camera network segments across long fiber runs without adding a separate media converter. For security integrators building out fiber-connected surveillance backbones, pairing this module with a compatible network video recorder uplink saves a device in the rack. Review the network design guide for fiber uplink planning considerations in multi-building deployments.

Frequently Asked Questions

Q: Is the GLCLHSM10PST compatible with Cisco switches that enforce SFP coding?

A: Yes — the GLCLHSM10PST is specifically designed as a Cisco GLC-LH-SM compatible module and is coded for recognition in Cisco platforms that enforce transceiver coding. Verify compatibility with your specific Cisco chassis model before ordering.

Q: What is the maximum fiber distance for the GLCLHSM10PST?

A: Up to 10 km (6.2 mi) on single-mode fiber operating at 1310nm. On multi-mode fiber, reach is substantially shorter — this module supports both fiber types but the 10 km spec applies to single-mode only.

Q: What connector type does the GLCLHSM10PST use?

A: LC duplex fiber optic connector — the standard for single-mode fiber infrastructure in commercial and enterprise environments.

Q: How much power does this SFP module consume?

A: Under 1W. This has minimal impact on a switch's per-port power budget and generates negligible heat even in densely populated SFP chassis.

Q: What are the operating temperature limits for the GLCLHSM10PST?

A: Operating range is 0°C to 70°C (32°F to 158°F), suitable for standard indoor data closets and equipment rooms. Storage temperature range is -40°C to 85°C (-40°F to 185°F).

Q: What industry standard does the GLCLHSM10PST conform to?

A: IEEE 802.3z 1000BASE-LX/LH, the governing standard for 1 Gbps fiber transmission. This ensures interoperability with any standards-compliant SFP-capable network device.

Karl Wilson

When I look at the GLCLHSM10PST, the spec that stands out operationally is the 3,092,408-hour MTBF. On inter-building fiber links in a multi-site surveillance deployment, you're not swapping transceivers frequently — but when one does fail at the wrong moment, it's a real problem. That reliability number, combined with the sub-1W draw, makes this a module you install and largely forget about.

Technical Highlights:

• 10 km Single-Mode Range: Full 10 km reach at 1310nm on single-mode fiber — sufficient for most campus-to-building or building-to-building surveillance backbone runs without adding optical amplification.
• 1.25 Gbps Full-Duplex Throughput: Saturates a gigabit link in both directions simultaneously, which is the correct operating mode for aggregating high-bitrate camera streams while carrying return management traffic on the same fiber pair.
• Sub-1W Power: At under 1W, this module is essentially invisible to a switch's power budget — an important consideration when a chassis has 24+ SFP ports populated.

Deployment Considerations:

• Verify Cisco chassis model compatibility before ordering — while the GLCLHSM10PST is coded for Cisco GLC-LH-SM compatibility, not every Cisco platform or IOS version handles third-party SFP modules identically. Test in a non-production slot first if your chassis has strict transceiver enforcement policies.
• The 0°C to 70°C operating range covers standard IDF/MDF closets, but if your fiber termination point is in an unheated outdoor enclosure in a cold climate, this module is not rated for it — you'd need an extended-temperature variant.

This module is well-suited for security integrators running single-mode fiber backbone between a central head-end switch and remote IDF closets in large commercial buildings, warehouses, or multi-building campuses — specifically in environments already standardized on Cisco switching infrastructure where GLC-LH-SM compatibility is a procurement requirement.
