HPE DL380 GEN11 12EDSFF CPU1/2 CBL KIT - P52153-B21

HPE P52153-B21 Cable Kit

Overview

The HPE P52153-B21 is a specific cable kit designed for integrating 12 EDSFF (Enterprise and Data Center Storage Form Factor) drives within the CPU1 and CPU2 zones of select HPE ProLiant DL380 Gen11 servers. This kit provides the necessary cabling to connect these high-density storage devices, ensuring proper power and data transmission for demanding enterprise workloads. It is a critical component for expanding storage capacity in a compact server footprint.

Compatibility

This cable kit is explicitly designed for the HPE ProLiant DL380 Gen11 server platform, specifically for configurations utilizing 12 EDSFF drives across the CPU1 and CPU2 internal bays. It is not compatible with other HPE server models or different drive form factors like 2.5-inch or 3.5-inch SAS/SATA drives.

Installation Notes

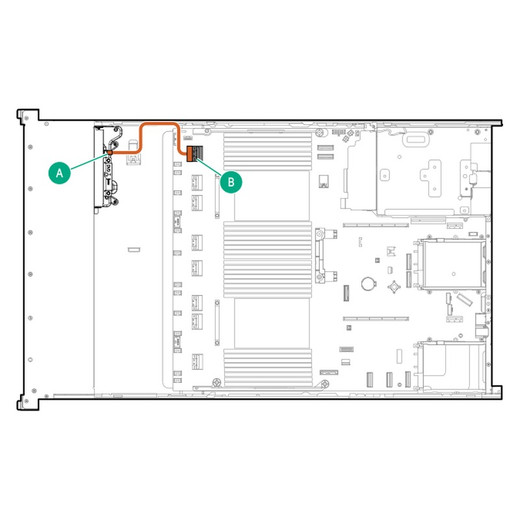

Installation requires opening the server chassis and carefully routing the provided cables from the motherboard/backplane to the EDSFF drive bays. Refer to the HPE ProLiant DL380 Gen11 server documentation for precise cable management and connection points. Proper installation is crucial to avoid data errors or power delivery issues. The kit's weight is 0.41 lb, indicating its lightweight nature for integration.

What's in the Box

• 1x HPE P52153-B21 Cable Kit
