HPE P65415-B21 OCP Cable Kit Concise Descriptor

Overview

The HPE DL20 Gen11 2SFF OCP CBL KIT, model P65415-B21, is a specialized cabling solution designed to facilitate the integration of OCP (Open Compute Project) network adapters into specific HPE ProLiant DL20 Gen11 server configurations. This kit provides the necessary internal cabling to connect compatible OCP network interface cards (NICs) to the server's motherboard and backplane, ensuring proper power and data connectivity for enhanced networking capabilities within a compact server footprint.

Compatibility

This cable kit is specifically designed for the HPE ProLiant DL20 Gen11 server platform when equipped with the 2 Small Form Factor (2SFF) drive bay configuration. It is intended for use with HPE-validated OCP network adapters that conform to the OCP Specification. Consult HPE's QuickSpecs for the DL20 Gen11 server to verify compatibility with specific OCP NIC models before purchase.

Installation Notes

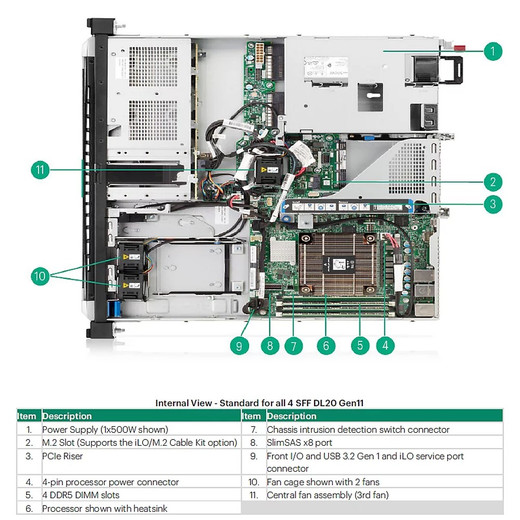

Installation requires opening the server chassis and carefully routing the provided cables from the OCP adapter to the designated connectors on the DL20 Gen11 motherboard and potentially the drive cage backplane. Ensure all connections are secure and that cables are not pinched or stressed. Refer to the HPE ProLiant DL20 Gen11 server documentation for detailed installation procedures and connector locations. This kit does not include the OCP adapter itself.
