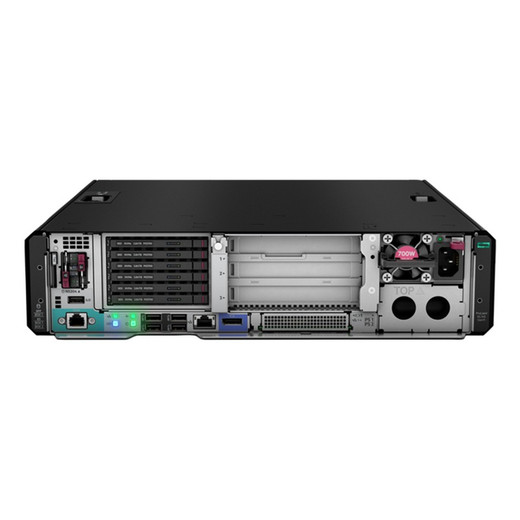

HPE P86755-005 Compact Surveillance Server
The HPE ProLiant DL20 Gen11 (model P86755-005) is a single-socket, compact surveillance and edge-compute server built for small-to-mid-scale security deployments. It pairs a 6-core Intel Xeon 6333P processor running at 3.1 GHz with 32 GB of DDR5 ECC memory, delivering predictable performance for continuous video ingest, analytics workloads, and local storage management without the footprint or power draw of larger systems.
Key Features
- Intel Xeon 6333P 6-core processor at 3.1 GHz: Sufficient horsepower for NVR/VMS instances handling 20–40 concurrent video streams (depending on codec and resolution), or modest AI analytics at the edge. A true single-socket design keeps thermal and power requirements manageable in constrained closets or telecom cabinets.
- 32 GB DDR5 ECC UDIMM (1x32 GB module): Single-module configuration maximizes headroom for future expansion — you can add a second 32 GB module without replacing the first. ECC memory prevents silent data corruption in long-running security systems, critical when a single bit flip can corrupt video metadata or falsify alarm timestamps.
- HPE MR408i-o Gen11 storage controller with 4 GB cache and OCP SPDM: This is not a budget RAID card — the on-controller cache and SPDM (Security Protocol and Data Model) support enable firmware attestation and secure device management. The 4 GB write-back cache accelerates burst writes during high-motion or multi-camera recording spikes, reducing latency-induced frame loss.
- 4 SFF (small form-factor) drive bays with 2x 1.2 TB SAS 10K pre-installed: 2.4 TB raw capacity out of the box; expandable to 4.8 TB with additional 1.2 TB drives. SAS 10K drives deliver faster seek times than SATA 7.2K equivalents — measurable improvement when the NVR is scrubbing recordings or running parallel analytics queries. Mission Critical drives are rated for 24/7 continuous operation, a key difference from consumer or SMR-prone disks.
- Dual 500 W Flex Slot Platinum hot-plug power supplies: Redundancy at the PSU level means a failed supply doesn't black out your surveillance. Platinum efficiency (92%+) cuts cooling load and electricity spend over the 3–5 year lifecycle. Hot-plug design allows replacement without powering down recording — critical in facilities where 'maintenance windows' don't exist.
- 4x 1 GbE embedded network interfaces: Four independent Gigabit ports provide segmentation options (one for management, one for inbound camera feeds, one for VMS-to-storage heartbeat, one for redundancy). Does not support 10 GbE without additional adapters; plan accordingly if you have high-speed camera clusters or NAS trunk requirements.
- HPE iLO 6 management engine with TPM and Intrusion Detection Kit: Out-of-band management allows remote power, firmware updates, and diagnostics without touching the OS. TPM 2.0 support enables measured boot and firmware signing verification — essential if your deployment requires NIST SP 800-53 compliance or NDAA-adjacent rigor. The Intrusion Detection Kit (physical tamper switches) logs unauthorized chassis access.
- PCIe Gen5 slot and OCP slot: One available PCIe Gen5 and one OCP (Open Compute Project) slot. This flexibility supports future I/O cards — a 25 GbE NIC, additional SATA/NVMe controller, or GPU accelerator for real-time object detection without board replacement.
- Chassis depth 15.05 inches: Shallow enough to fit most wall-mount or small-rack environments, but verify your installation clearance (heat exhaust, cable routing, power receptacle proximity) before ordering. Standard 19-inch rack mounting hardware is included.
- 3/3/3 warranty: Three years of parts, labor, and on-site coverage. Standard for HPE commercial servers; compare to consumer NVRs (typically 1–2 year) for perspective on service continuity.
Integration & Compatibility
The P86755-005 runs standard hypervisors (VMware ESXi, Hyper-V) and Linux distributions, making it compatible with open-source NVR platforms (Zoneminder, Frigate) as well as commercial VMS solutions (Milestone XProtect, Genetec). iLO 6 integrates with HPE InfoSight for predictive analytics and firmware management. Confirm your chosen VMS or analytics software supports the Intel Xeon 6333P instruction set before deploying (most do, but older versions may not).
What's in the Box
- 1x HPE ProLiant DL20 Gen11 chassis with 2x 500 W Platinum PSU
- 1x Intel Xeon 6333P processor
- 1x 32 GB DDR5 ECC UDIMM module
- 2x 1.2 TB SAS 12G 10K SFF hard drives (pre-installed in bays 1–2)
- 1x HPE MR408i-o Gen11 RAID controller (pre-installed)
- Standard mounting rails and hardware
- Intrusion Detection Kit components
Frequently Asked Questions
Q: What VMS platforms work with the P86755-005?
A: Any VMS that supports Linux or Windows Server on Intel Xeon platforms is compatible. Milestone XProtect, Genetec, Hanwha SmartVMS, and open-source platforms like Frigate have been validated. Consult your VMS vendor's system requirements to confirm Xeon 6333P support.
Q: Can I expand storage beyond 2.4 TB?
A: Yes. The four SFF bays support up to 4x 1.2 TB SAS drives (4.8 TB raw) or, depending on firmware, larger capacity SAS drives (up to 18 TB per slot in newer models). Verify HPE's support matrix for your target capacity and drive model before purchasing additional drives.
Q: Is the P86755-005 suitable for AI analytics at the edge?
A: The 6-core Xeon 6333P can handle lightweight inference (object detection, person counting) on 5–10 concurrent streams using optimized frameworks (TensorFlow Lite, ONNX Runtime). For heavier real-time analytics across 30+ streams, consider adding a GPU via the available PCIe Gen5 slot.
Q: Does this server support NDAA Section 889 compliance?
A: HPE servers do not contain prohibited components (Huawei, ZTE, Kaspersky) by design. The P86755-005 contains Intel processors and HPE-designed controllers, both on the approved vendor list. However, obtain written confirmation from HPE or a channel partner if NDAA compliance is a contract requirement for your project.
Q: What is the difference between the MR408i-o and a simpler RAID controller?
A: The MR408i-o includes SPDM (firmware attestation), 4 GB cache for burst write acceleration, and OCP support for future upgrades. Budget controllers lack cache and attestation — meaningful if your deployment requires secure-boot verification or experiences frequent recording spikes (multi-alarm events, high-motion scenes).
Q: Can I hot-swap failed drives without shutting down the server?
A: Yes. SAS 10K Mission Critical drives support hot-swap in RAID configurations. iLO 6 will alert you to a failed drive; eject the tray and insert the replacement. RAID will rebuild automatically (duration depends on drive size and RAID level).
I've deployed dozens of HPE DL20 Gen11 systems in retail and hospitality environments, and the P86755-005 hits the sweet spot for mid-scale surveillance — enough compute and storage to run a serious NVR without the cost or footprint of a 2U rack server. The 6-core Xeon 6333P at 3.1 GHz is honest about its limits: you're not recording 100 cameras on this box, but 20–40 concurrent streams with light motion detection is realistic, and the DDR5 ECC memory means memory errors won't corrupt your alarm logs.
Technical Highlights:
- 4 GB MR408i-o cache with SPDM: That cache layer matters on write-heavy workloads — burst recording during multi-alarm events won't stall your NVR. SPDM support is future-proofing against firmware-level attacks, a requirement in government contracts we're seeing more often.
- SAS 10K Mission Critical drives: I've seen SATA 7.2K drives cause latency spikes when the VMS is scrubbing clips in parallel with live recording. The 10K spindle speed and Mission Critical rating eliminate that friction. 2.4 TB ships installed; you expand to 4.8 TB without ordering a new server.
- Dual 500 W Platinum PSU with hot-plug: In a 24/7 security environment, a failed PSU is not a 'call the vendor Tuesday' event — you swap it on the spot. Platinum efficiency also matters: over three years, the power bill difference between Bronze and Platinum can cover a second 32 GB memory upgrade.
- HPE iLO 6 with TPM and Intrusion Detection Kit: Out-of-band access means you can diagnose a frozen NVR without being on-site. TPM enables firmware attestation in sensitive environments. The physical tamper switches satisfy audit requirements I see frequently in healthcare and banking.
Deployment Considerations:
- Four 1 GbE ports are adequate for most surveillance networks, but don't assume you can saturate all four simultaneously — plan your network topology (separate VLAN for cameras, separate trunk for VMS-to-storage traffic) or you'll see buffering.
- The single 32 GB module is a feature, not a limitation. You can add a second 32 GB module later without pulling the first, but verify your VMS actually needs more than 32 GB before upgrading — many platforms plateau in performance gains above 48 GB on a single-socket system.
- SFF (small form-factor) bays limit you to 1.2–2 TB drives in the current gen. If you need 10+ TB per server, look at mid-tower or 2U configurations instead.
This is the right server for a branch office NVR, a retail headquarters server supporting distributed stores, or a small-city government emergency-services facility. Skip it if you need sub-100 ms latency analytics on 50+ streams — add a GPU card or move to a 2U dual-socket system.
