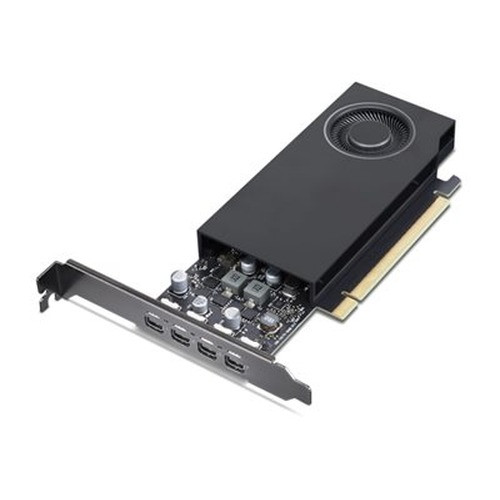

HP Inc 6E3Y8AA Intel ARC PRO A40 6GB 4MDP GFX

HP Inc 6E3Y8AA Intel Arc Pro A40 6GB 4-Output Professional Graphics Card

Overview

The HP Inc 6E3Y8AA is a professional-grade discrete graphics card built around Intel's Arc Pro A40 architecture with 6GB of dedicated video memory and four Mini DisplayPort outputs. It targets workstation environments where multi-display output and commercial-grade GPU compute are the primary requirements — think CAD workstations, digital signage controllers, video wall deployments, or operator consoles driving multiple monitors simultaneously. At 167.7mm in length and approximately 1 lb, this is a compact, low-profile-friendly card designed to fit in space-constrained enterprise systems without the bulk of consumer gaming GPUs.

Key Features

• 6GB Dedicated VRAM: 6GB of onboard video memory gives you enough headroom to run four simultaneous display pipelines at standard commercial resolutions without taxing host system RAM — important when the workstation is also handling other compute tasks alongside display output.
• 4x Mini DisplayPort Outputs: Four Mini DisplayPort connections in a single-slot or low-profile form factor means you can drive a full four-screen operator console or video wall from a single card, eliminating the need for a secondary GPU or external display splitter in most multi-monitor commercial deployments.
• Intel Arc Pro A40 Architecture: The Arc Pro designation signals workstation-class driver certification and support priorities — stability and long-term driver branches suited to commercial deployments, not the consumer gaming update cadence. This matters in environments where display reliability and uptime take precedence over gaming benchmark performance.
• Compact 167.7mm Form Factor: At 167.7mm card length, the 6E3Y8AA fits in mid-range tower workstations and many small-form-factor commercial chassis where full-length cards are excluded — useful when deploying into existing workstation fleets without chassis upgrades.
• HP Inc Commercial Sourcing: Sourced through HP Inc's commercial distribution channel, factory-new, no grey-market, no parallel imports. HP's commercial GPU line targets integrators and enterprise buyers who need consistent SKU availability and commercial support pathways.

Integration and Compatibility

The Mini DisplayPort outputs are compatible with standard DP-to-HDMI and DP-to-DVI active adapters, giving flexibility when connecting to legacy or mixed-standard display infrastructure. The Intel Arc Pro A40 supports hardware-accelerated media decode and encode pipelines relevant to video surveillance operator workstations, digital signage controllers, and multi-stream video review environments. Confirm your target workstation chassis has a compatible PCIe slot and adequate power delivery before specifying — verify chassis clearance against the 167.7mm card length. For multi-GPU deployments driving eight or more displays, two units can be combined in systems with sufficient PCIe bandwidth and slot spacing.

Frequently Asked Questions

Q: How many monitors can the HP Inc 6E3Y8AA drive simultaneously?

A: The 6E3Y8AA has four Mini DisplayPort outputs, supporting up to four monitors simultaneously from a single card.

Q: What is the card length of the 6E3Y8AA?

A: The card measures 167.7mm (approximately 6.6 inches) in length, making it compatible with most mid-tower and many small-form-factor commercial workstation chassis.

Q: Does the 6E3Y8AA use Mini DisplayPort or full-size DisplayPort?

A: The 6E3Y8AA uses Mini DisplayPort (Mini DP) connectors. Standard Mini DP to full-size DP or HDMI active adapters are widely available for connecting to standard commercial displays.

Q: Where is the HP Inc 6E3Y8AA manufactured?

A: The 6E3Y8AA is manufactured in China (Country of Origin: CN) and sourced through HP Inc's commercial distribution channel.

Q: What type of workloads is the Arc Pro A40 suited for?

A: The Intel Arc Pro A40 targets professional workstation use cases: multi-display output, CAD visualization, digital signage, video surveillance operator consoles, and hardware-accelerated media decode — not gaming or consumer graphics workloads.

Jerry Tildsen

When I look at the 6E3Y8AA, the spec that immediately matters in a commercial context is the four Mini DisplayPort outputs on a card with only 167.7mm of physical length — that combination of output density and compact footprint is the reason you'd specify this over a longer, heavier workstation GPU in a space-constrained console deployment.

Technical Highlights:

• 4x Mini DisplayPort: Four discrete display outputs from a single PCIe slot means a four-screen security operator console or digital signage array requires no secondary GPU, no external splitter hardware, and no additional PCIe slot consumption — a real advantage in systems with limited expansion.
• 6GB VRAM: 6GB of dedicated video memory keeps display pipeline processing off the host CPU and system RAM, which matters when the workstation is simultaneously running VMS client software, analytics dashboards, or other operator-facing applications alongside four live display feeds.
• 167.7mm Card Length: At 167.7mm, this card fits in commercial chassis categories that exclude standard-length workstation GPUs — useful when you're deploying into an existing fleet of HP or Lenovo small-form-factor towers without a chassis refresh budget.

Deployment Considerations:

• Verify active adapter compatibility before ordering — Mini DisplayPort to HDMI active adapters vary in quality, and passive adapters will not work on most Arc-based outputs; budget for quality active adapters per display connection.
• The Arc Pro A40 is a workstation-segment SKU with commercial driver support priorities — confirm Intel's Arc Pro driver release cadence is compatible with your VMS or CAD application's GPU driver requirements before deploying at scale.

The 6E3Y8AA is the right call for security operations center workstations or digital signage controller builds where four-display output density, compact card length, and commercial-channel sourcing all need to land in the same purchase — not for high-compute rendering or GPU-accelerated AI inference workloads.
