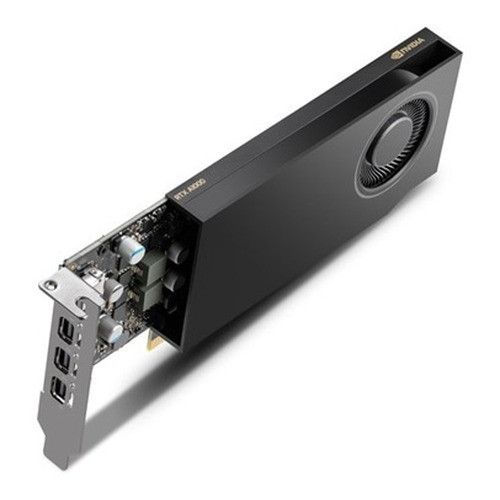

HP Inc AV8J4AA NVIDIA RTX A1000 8GB Professional Graphics Card

Overview

The AV8J4AA is HP Inc's factory-configured NVIDIA RTX A1000 8GB graphics card, targeting workstation deployments that demand professional-grade GPU compute alongside multi-display output. With 2304 CUDA cores and 8GB of GDDR6 memory on a 128-bit bus delivering up to 192 GB/s bandwidth, this card handles parallel workloads — including AI inference, 3D rendering, and multi-stream video decode — without the overhead of a consumer gaming GPU. The FP16 throughput of 53.8 TFLOPS and INT8 rate of 107.8 TOPs make it a practical fit for edge AI acceleration and video analytics processing at the workstation level. Four Mini DisplayPort 1.4a outputs support up to four simultaneous displays at resolutions up to 7680×4320 (8K), useful for multi-monitor surveillance operator consoles or video wall control nodes. The PCIe 4.0 x8 interface keeps host-to-GPU bandwidth from becoming a bottleneck on current-generation platforms.

Compatibility

Designed for HP workstation platforms that accept a full-height, double-wide PCIe 4.0 x8 card in a standard slot (9.00 × 2.40 in bracket footprint). Compatible HP workstation families that support RTX A1000 configurations include the HP Z4 G5, Z6 G5, and Z8 G5 series, as well as the Z2 Tower G9 where slot power and physical clearance permit. Verify chassis TDP headroom before installing alongside high-draw CPUs — the RTX A1000 is a low-profile-power Ampere card but requires a confirmed PCIe slot power allocation. DirectX 12.0 and Shader Model 6.6 support means compatibility with current Windows workstation OS environments. No TV tuner functionality is included.

Installation Notes

Card dimensions are 9.00 × 7.50 × 2.40 in — confirm chassis clearance for a dual-slot full-height form factor before ordering. Interface is PCIe x8 (physical ×16 slot compatible); no external power connector is typical for this power class, but verify against your specific HP workstation's internal power harness. Four Mini DisplayPort outputs require Mini DP to DP or Mini DP to HDMI adapters if connecting to standard-connector monitors — adapters are not included per available evidence.
