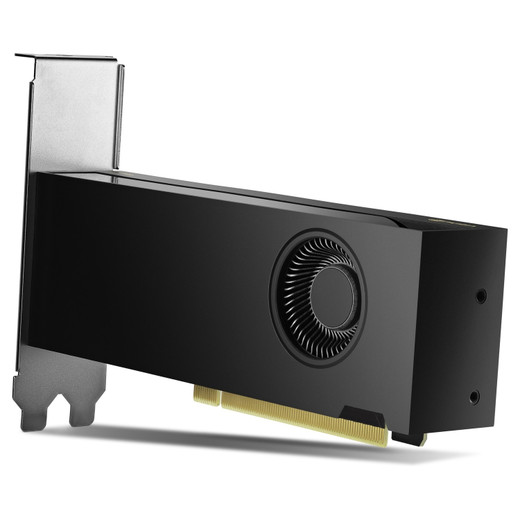

HP Inc 8D6B8AA NVIDIA RTX 2000 ADA 16GB 4MDP GFX

HP Inc 8D6B8AA NVIDIA RTX 2000 Ada Generation 16GB Workstation Graphics Card

Overview

The HP Inc 8D6B8AA is a workstation-class discrete graphics card built around the NVIDIA RTX 2000 Ada Generation GPU. Delivering 16GB of GDDR6 memory across a 128-bit bus at 224 GB/s bandwidth, the 8D6B8AA is sized for multi-display security operations centers, VMS workstations decoding simultaneous high-resolution streams, and professional visualization tasks that exhaust the VRAM headroom of entry-level cards. The 5nm Ada Lovelace architecture provides 2816 CUDA cores with a boost clock of 2130 MHz — enough compute to handle GPU-accelerated video decoding and AI inferencing workloads on-box without a dedicated accelerator.

Compatibility

Connects via PCI Express x16 4.0 (backward-compatible with PCIe 3.0 slots). Supports up to four simultaneous displays via four Mini DisplayPort 1.4a outputs, with a maximum resolution of 7680×4320 (8K) per output. Designed for HP Z-series workstations that accept a full-height, dual-slot add-in card (16.70 × 8.50 × 3.30 in). Verify your workstation chassis has adequate clearance and a power supply with sufficient headroom before specifying — the RTX 2000 Ada is a single-slot power connector card typical of 70W TDP class, but confirm against your specific HP workstation's power delivery specification.

Installation Notes

Card dimensions are 16.70 × 8.50 × 3.30 in — measure your chassis internal clearance before ordering, particularly in compact Z-series towers. Four Mini DisplayPort outputs require active Mini DP-to-DP or Mini DP-to-HDMI adapters if your monitors lack native Mini DisplayPort inputs. PCIe 4.0 x16 bandwidth is not a bottleneck at this GPU tier; PCIe 3.0 x16 hosts will see negligible real-world performance difference for display and decode workloads.
