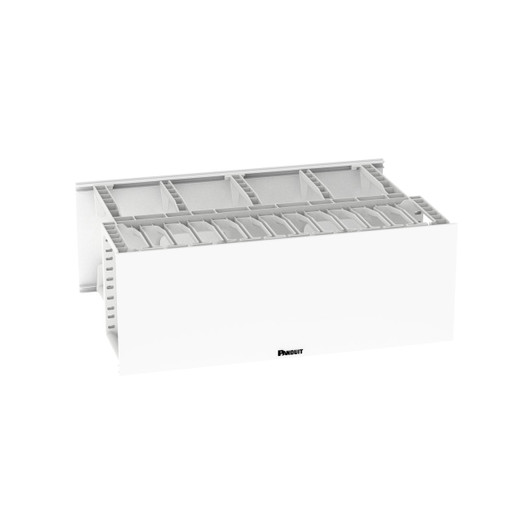

Panduit NM4WH NetManager High Capacity 4RU Dual-Sided Horizontal Cable Manager

Overview

The Panduit NM4WH is a 4RU dual-sided horizontal cable manager designed for standard EIA 19-inch (483mm) racks and cabinets. Part of the Panduit NetManager High Capacity line, it addresses a common pain point in dense cabling environments: keeping copper and fiber runs organized, protected, and accessible without consuming excessive rack space or forcing a full re-cable during maintenance. The NM4WH ships in white, making it a natural fit for white-interior data center enclosures and structured cabling racks where color coordination aids visual management.

At 4RU (177mm tall, 483mm wide), this is not a minimal single-RU organizer — it provides substantial vertical channel depth for high-density cable bundles. If you are managing a rack or cabinet carrying multiple Cat 6A horizontal runs alongside fiber patch trunks, the NM4WH gives you the physical space to route cleanly without bending cables past their minimum bend radius.

Key Features

• Large Front Finger Openings: The oversized finger slots are specifically sized to accommodate Cat 6 and Cat 6A cables — the bulkier, stiffer jacket profile of 6A is a well-known cable management headache. Wider fingers mean you spend less time forcing bundles through tight clips during initial installation, and less time fighting the manager when you need to add or re-route a run months later.
• Dual-Sided Design: Front and rear cable access means you can route incoming horizontal cables on the front face and manage patch cord tails or backbone runs on the rear — keeping both sides of a high-density patch panel row organized independently. A single-sided manager on a fully loaded bay is a compromise; the NM4WH eliminates that trade-off at 4RU.
• Hinged Front and Rear Covers: Both covers swing open rather than requiring removal, which preserves organization when you need access. On a live rack with dozens of runs, the difference between a hinged cover and a removable panel is the difference between a clean re-route and a dropped bundle on the floor.
• 4RU Vertical Profile: At 177mm (7 inches) tall, the NM4WH occupies 4U of rack space. That is a deliberate trade-off — you get significantly more internal routing volume than a 1U or 2U manager, which matters when you are bundling 24 or 48 Cat 6A runs into a single horizontal pathway. If rack space is extremely constrained, account for this footprint during rack layout planning.
• Standard 19-Inch EIA Rack Compatibility: Mounts in any standard 19-inch (483mm) rack or cabinet — no proprietary hardware, no adapter brackets. This matters in multi-vendor rack environments where consistency of mounting hardware reduces installation variables.
• RoHS Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements — relevant for enterprise deployments with environmental procurement mandates or for projects requiring material compliance documentation.
• White Finish: The white colorway is a practical spec, not a cosmetic detail. In white-interior open-frame racks or white cabinets common in structured cabling deployments and some data center environments, matching manager color reduces the visual noise that makes cable tracing harder and audits slower.

Integration & Compatibility

The NM4WH installs in any standard EIA 19-inch rack or cabinet — open-frame, enclosed, wall-mount enclosures with standard rail spacing all qualify. It pairs directly with horizontal cable management rows above and below patch panels, switches, and consolidation points. Finger-based routing accommodates both copper (Cat 5e through Cat 6A) and fiber patch cables; the large openings prevent sharp-angle bends that would degrade fiber attenuation or cause jacket damage on stiff Cat 6A assemblies. There are no tool requirements cited for the cover operation — hinged hardware is field-adjustable. One unit ships per package.

Frequently Asked Questions

Q: What rack size does the NM4WH fit?

A: The NM4WH is designed for standard EIA 19-inch (483mm) racks and cabinets. Its overall width is 483mm (19 inches), so it installs directly without adapter hardware in any compliant 19-inch rack or enclosure.

Q: How much rack space does the NM4WH consume?

A: The NM4WH occupies 4RU (rack units). Its overall height is 177mm (7 inches). Plan for 4U of vertical rack space in your layout.

Q: Does the NM4WH support Cat 6A cabling?

A: Yes. The large front finger openings are specifically designed to accommodate Cat 6 and Cat 6A cables, which have a larger, stiffer jacket profile than lower-category cabling. This reduces installation effort and makes future re-routes more practical.

Q: Is the NM4WH RoHS compliant?

A: Yes. The NM4WH meets RoHS (Restriction of Hazardous Substances) compliance standards as stated in the product specifications.

Q: Does the NM4WH have covers on both sides?

A: Yes. The NM4WH is a dual-sided manager with hinged covers on both the front and rear, allowing cable access from either side without removing the covers entirely.

Q: What color is the NM4WH?

A: The NM4WH is white. It is intended for use in standard 19-inch racks and cabinets where a white finish is preferred for color coordination or visual cable management.

Karl Wilson

The NM4WH earns its place in dense structured cabling deployments specifically because of its 4RU profile and dual-sided finger access — two specs that look like overkill on paper until you are managing 48 Cat 6A drops in a single bay and need to re-route three runs without pulling the entire bundle. The combination of large finger openings and hinged front-and-rear covers is what separates this from lower-capacity single-sided managers when you are under a tight maintenance window.

Technical Highlights:

• 4RU Internal Volume: At 177mm tall, the NM4WH provides substantially more internal routing depth than 1U or 2U alternatives. In a fully loaded 48-port patch panel row with Cat 6A horizontal runs, the extra channel height prevents cable compression and keeps bend radii within spec — critical for maintaining performance headroom on 10G applications.
• Dual-Sided Finger Access: Front and rear routing channels let you isolate horizontal cable bundles (front) from patch cord slack (rear). This separation is what makes the NM4WH worth the 4U investment in high-density environments — blended front/rear routing is one of the leading causes of tangled re-route failures during moves, adds, and changes.
• RoHS Compliance: Documented RoHS compliance means the NM4WH satisfies environmental procurement requirements on government, education, and enterprise projects where material compliance is a bid requirement, not just a checkbox.

Deployment Considerations:

• The 4RU footprint is a real rack-space cost — plan your rack layout before ordering. On a 42U rack already heavily loaded with 1U switches and patch panels, four consecutive open units for cable management requires deliberate vertical zone planning before the first cable is run.
• The NM4WH ships in white only under this model number. If your rack interior is black, the color contrast can actually aid visual tracing — but if you require a black manager for a uniform black rack build-out, verify the equivalent black SKU in the NetManager High Capacity line before purchasing.

For structured cabling projects in enterprise MDF or IDF closets running high-density Cat 6A horizontal distribution — particularly where MAC (moves, adds, changes) activity is frequent — the NM4WH is the right tool. It is not the choice for a lightly loaded 12-port switch rack where a 1U manager is sufficient; the 4RU commitment is only justified when the cable count demands it.
