Panduit NM3WH NetManager High Capacity 3RU Dual-Sided Horizontal Cable Manager

Overview

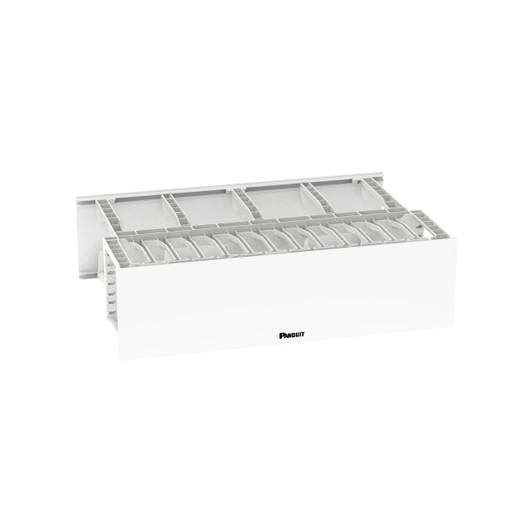

The Panduit NM3WH is a 3RU horizontal cable manager from the Panduit NetManager High Capacity line, built to organize and protect copper and fiber network cabling in any standard EIA 19-inch rack or cabinet. At 19 inches wide and 5.2 inches tall, the NM3WH occupies three rack units and delivers dual-sided access — front and rear — so technicians can route, dress, and service cables without disturbing adjacent patch panels or active equipment. The white finish suits deployments where color-coded rack organization is a standard practice.

Key Features

• 3RU Dual-Sided Design: Three rack units of vertical space gives this manager enough interior volume to handle high-density copper and fiber bundles side by side. The dual-sided configuration means you get front-to-rear cable routing in a single 1U-equivalent-per-side format — no secondary rear trough required for most deployments.
• Large Front Finger Openings: The finger openings are sized specifically for Cat 6 and Cat 6A cables, which run larger than Cat 5e due to thicker insulation and larger bend-radius requirements. Forcing oversized cables through undersized fingers causes jacket damage and kinking that degrades channel performance — these openings are built to accommodate the actual diameter of modern structured cabling.
• Hinged Front and Rear Covers: Both covers swing open without tools, so moves-adds-changes don't require panel removal or cable disconnection. In a live data center or IDF closet, that means faster MAC work and less risk of disturbing neighboring connections during routine maintenance.
• Standard EIA 19-Inch Mounting: The 483mm (19-inch) width is the universal rack standard — compatible with two-post open frames, four-post relay racks, and enclosed cabinets from virtually any vendor. No proprietary mounting hardware or adapter brackets needed.
• RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive, which matters for deployments in regulated environments, government facilities, and any project spec that requires RoHS certification on passive infrastructure components.
• White Color Option: White finish is a practical choice when the rack houses white-jacketed patch cables or when the installation standard calls for color-differentiated cable pathways (e.g., white = voice, blue = data). It also improves label visibility under typical IDF fluorescent or LED lighting.
• NetManager High Capacity Sub-Brand: The HC designation indicates this manager is engineered for higher cable fill than standard-capacity variants — relevant in consolidation point racks or top-of-rack switch deployments where cable counts per RU are elevated.

Integration and Compatibility

The NM3WH installs in any rack or cabinet conforming to the EIA/TIA 19-inch standard, which covers the vast majority of commercial network infrastructure — open-frame two-post racks, enclosed four-post cabinets, and wall-mount enclosures with standard rail spacing. It is designed to work alongside Panduit patch panels and cable management accessories, but the EIA-standard mounting means it pairs equally well with third-party patch panels, 1U switches, and KVM equipment. When planning rack layout, allocate the full 3RU footprint (133mm / 5.2 inches) in your rack unit budget — this manager is not a 1RU unit. For high-density structured cabling runs using Cat 6A, pair with appropriately rated patch cords to maintain the end-to-end channel rating; the manager itself does not attenuate signal but improper bend radius at the fingers will.

Frequently Asked Questions

Q: What rack size does the NM3WH fit?

A: The NM3WH is designed for standard EIA 19-inch (483mm) racks and cabinets — two-post open frames, four-post relay racks, and enclosed cabinets all work provided they conform to the 19-inch EIA standard.

Q: How many rack units does the NM3WH occupy?

A: It occupies 3RU (three rack units). The overall height is 5.2 inches (133mm), so plan accordingly when laying out your rack.

Q: Is the NM3WH compatible with Cat 6A cabling?

A: Yes. The large front finger openings are specifically sized to accommodate Cat 6 and Cat 6A cables, which are physically larger than Cat 5e. This helps maintain proper bend radius and reduces installation time with modern structured cabling.

Q: Does the NM3WH have both front and rear cable management?

A: Yes. It is a dual-sided manager with hinged covers on both the front and rear, allowing cable routing and access from both sides without removing the unit from the rack.

Q: Is the NM3WH RoHS compliant?

A: Yes. The NM3WH meets RoHS (Restriction of Hazardous Substances) compliance standards, making it suitable for regulated environments and projects with RoHS requirements on passive infrastructure.

Q: What color is the NM3WH?

A: The NM3WH is white. If you need a black variant, verify the equivalent SKU in the NetManager High Capacity family for color-matched rack deployments.

Karl Wilson

The NM3WH's 3RU dual-sided form is the detail that matters most in a dense IDF. A 1RU manager in a high-fill Cat 6A environment is asking for jacket damage at the fingers and spaghetti behind the panel — the NM3WH gives you the physical space to actually dress cables properly, and the hinged rear cover means you're not cutting cable ties every time a port assignment changes.

Technical Highlights:

• 3RU Footprint (133mm / 5.2 in): Three rack units of dedicated cable space prevents the over-stuffing that causes bend-radius violations on Cat 6A — a real factor when channel performance at 10GBase-T is sensitive to physical stress at termination points.
• Large Finger Openings for Cat 6/6A: Cat 6A outer diameters run up to 9mm on augmented cables; undersized fingers force tight bends that degrade insertion loss margins. The NM3WH's openings are sized for this — not retrofitted from a Cat 5e-era design.
• RoHS Compliance: For government, healthcare, or EU-destined deployments where passive infrastructure must carry hazardous-substance documentation, this is already covered — no sourcing detour needed.

Deployment Considerations:

• Budget the full 3RU in your rack layout before ordering — in a 12U wall enclosure, three units for a cable manager is a meaningful commitment; confirm rack density before specifying.
• The NM3WH is sold as a single unit (package quantity 1); for a full rack build with managers above and below each patch panel row, calculate your quantity per rack before placing the order.

The NM3WH is the right call for new IDF builds or rack refreshes where Cat 6A structured cabling is the standard and technicians need reliable front-and-rear access without disrupting adjacent active equipment during routine MAC work.
