Panduit NMF4 NetManager High Capacity 4RU Horizontal Cable Manager

Overview

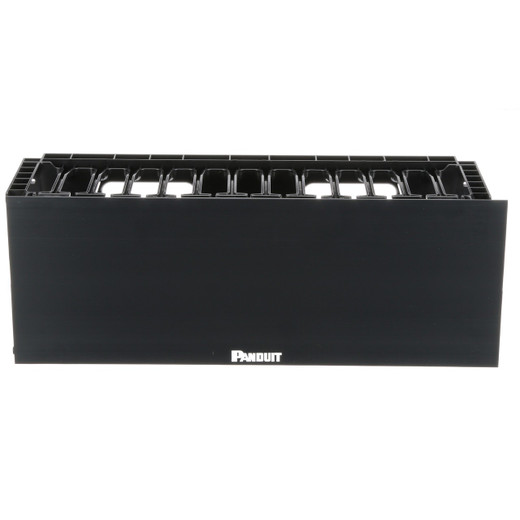

The Panduit NMF4 is a 4RU single-sided horizontal cable manager from the Panduit NetManager High Capacity line, built to organize and protect copper and fiber cabling in any standard EIA 19-inch (483mm) rack or cabinet. If you're running Cat 6 or Cat 6A in a structured cabling environment and need a manager that won't fight you during installation or future moves, this is the unit to look at. The hinged front cover keeps cables contained without requiring you to fully disassemble the run every time you need access. At 7 inches tall (177mm), the 4RU footprint delivers meaningful cable-routing real estate without consuming an excessive slice of your rack U-space.

The NMF4 is finished in black to blend with standard server rack and enclosure aesthetics. It ships as a single unit (Package Qty: 1) and is listed under Panduit's cabinets, thermal management, and enclosures category — meaning it's sourced alongside the brackets, panels, and raceway accessories that complete a structured wiring installation.

Key Features

• Large Front Finger Openings: Designed specifically to accommodate Cat 6 and Cat 6A cable bundles — the higher outside diameter of augmented Category cable is a common pressure point with older managers that were dimensioned for Cat 5e. These openings reduce the force required to route cables and make it practical to add or remove individual runs later without disrupting the full bundle. That translates directly to faster initial installation and lower labor cost on future MACs.
• Hinged Front Cover: The single-sided configuration includes a hinged cover on the front face only. This matters in dense patch environments: you can flip the cover open for access, route or re-route cables, then close it without removing any fasteners. Compared to snap-on covers or lace-bar-only designs, you'll spend less time on routine maintenance.
• 4RU Height (177mm / 7 inches): Four rack units of dedicated cable management gives you enough vertical space to accumulate a realistic quantity of horizontal runs — typical in 24- or 48-port patch panels — without the manager itself becoming a cable-routing obstacle. This is the right size to pair one-to-one with a 1U patch panel and a 1U switch, keeping your cable paths clean at every layer of a structured horizontal cable management design.
• 19-Inch EIA Rack Compatibility (483mm): Standard EIA 19-inch mounting width means this drops into virtually any open-frame rack, enclosed two-post or four-post cabinet without adapter hardware. No custom brackets, no rack-specific SKU variants.
• RoHS Compliant: RoHS compliance means the unit meets EU Directive 2011/65/EU restrictions on hazardous substances — relevant if your project has green-building, LEED documentation, or export requirements that mandate restricted-substance declarations on all rack hardware, not just active electronics.
• UL 2416 and CSA C22.2 Listed: UL 2416 is the standard for cable management systems used in commercial data and communications installations. CSA C22.2 covers Canadian requirements. Both listings mean this hardware has been independently tested against flammability, structural, and material standards — a requirement on most commercial construction projects and data center fit-outs where the authority having jurisdiction (AHJ) will inspect cabling infrastructure. Saves you the conversation with the inspector.
• Cost-Effective High-Capacity Design: The NetManager HC series positions this unit as a value-tier entry in Panduit's managed cabling lineup — you get the compliance certifications and the physical construction of a commercial-grade manager without moving up to Panduit's premium raceway or hinged-wall-bracket products. Competitive alternate part HCM-4-4U is referenced in the product data for direct comparison.

Integration & Compatibility

The NMF4 is designed to work in any standard EIA 19-inch rack or cabinet — open-frame two-post, enclosed four-post, and wall-mount enclosures all qualify provided the mounting rails conform to the 19-inch EIA/TIA-310 standard. No proprietary rack system is required. It pairs naturally with standard 1U and 2U patch panels and keystone patch panels, and with top-of-rack and end-of-row switches where horizontal cable management between the switch and the patch field is a design requirement. The manager accommodates both copper and fiber cabling, so it doesn't force a separate fiber-only management path in mixed-media racks. Compliance with RoHS, UL 2416, and CSA C22.2 means it meets the documentation requirements for commercial construction submittals and data center audits without additional third-party certification work on your end. For installations requiring full cable pathway documentation, this unit integrates into Panduit's broader structured cabling ecosystem alongside their patch panels, outlets, and cable routing accessories.

Frequently Asked Questions

Q: What rack width does the NMF4 fit?

A: The NMF4 is dimensioned for standard EIA 19-inch (483mm) racks and cabinets. It does not require any adapter hardware for two-post or four-post enclosures that conform to TIA-310/EIA 19-inch mounting rail spacing.

Q: How many rack units does the NMF4 occupy?

A: The NMF4 occupies 4 rack units (4RU), with an overall height of 7 inches (177mm). Plan for 4U of rack space in your layout.

Q: Does the NMF4 work with Cat 6A cable?

A: Yes. The large front finger openings are explicitly sized to accommodate Cat 6 and Cat 6A cables, including the larger outside diameters typical of shielded and augmented Category cable.

Q: What certifications does the NMF4 carry?

A: The NMF4 meets RoHS (Directive 2011/65/EU restricted substances), UL 2416 (cable management systems), and CSA C22.2 standards. These are the key listings required for commercial construction inspections and data center submittals in the US and Canada.

Q: Is the NMF4 single-sided or double-sided?

A: Single-sided. The NMF4 has a hinged front cover only — there is no rear cable channel. If your installation requires rear cable management as well, evaluate a double-sided variant in the NetManager HC family.

Q: What is the competitor cross-reference for the NMF4?

A: Panduit documents the NMF4 as a direct alternate to part number HCM-4-4U from competing manufacturers. Use this for procurement cross-referencing or spec substitution requests.

James Everett

The NMF4 is the unit I reach for when a rack layout calls for reliable 4RU horizontal management without a premium line-item. The hinged front cover is the practical differentiator — on a 48-port patch field, you're going back into that manager more than once, and a cover you can open and close in seconds without tools is worth more than it looks on a spec sheet.

Technical Highlights:

• Cat 6A-Ready Finger Openings: Augmented Category cable runs roughly 0.354 inches OD in many shielded variants — older managers sized for Cat 5e pinch bundles and create bend-radius violations at the entry point. The NMF4 finger openings are explicitly sized to avoid that problem, which matters when you're pulling 24 or 48 runs at once.
• UL 2416 Listing: This is the listing AHJs actually look for on cable management hardware during commercial inspections — not just a marketing checkbox. Having it on a 4RU manager at this price point is not universal across the category.
• 19-inch / 483mm EIA Standard Width: Confirmed to 483mm — not a nominal
