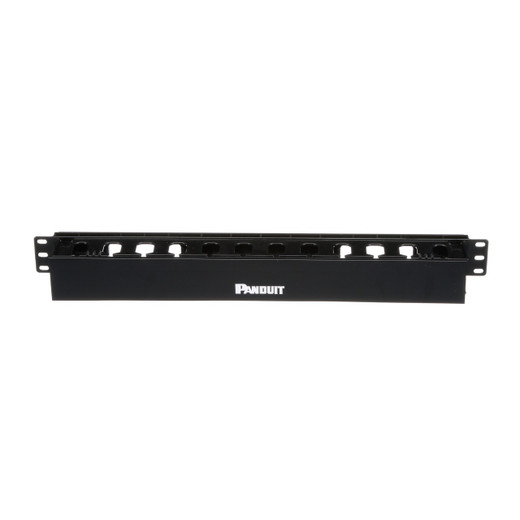

Panduit WMPLFSE Horizontal Single-Sided Rack Cable Manager
Overview
The Panduit WMPLFSE is a 1RU horizontal single-sided cable manager from the Panduit PatchLink™ line, built specifically for IT and AV teams that need to keep patch cables organized on standard EIA 19-inch racks without consuming excessive rack depth. At just 2.7 inches deep, the WMPLFSE fits into tight rack layouts where a full-depth manager would create clearance problems — a common constraint in wall-mount enclosures, shallow two-post racks, and dense IDF closets. The unit handles copper, fiber optic, and coax patch cords in a single pathway, so mixed-media installations don't require separate horizontal managers for different cable types.
This is a horizontal cable management product, not a camera or surveillance device — the specs and benefits below are specific to structured cabling and rack infrastructure applications.
Key Features
- Standard EIA 19-inch width (483mm): Drops into any standard two-post or four-post rack without adapters or filler panels. The 19-inch footprint means it aligns flush with patch panels and switch faceplates — no overhang, no offset brackets needed.
- 1RU form factor (44.1mm / 1.74-inch height): Consumes a single rack unit, so you can place a manager between every patch panel row without sacrificing significant usable rack space. In a 24RU IDF rack running 12 patch panels, using a 1RU manager between each row adds 12RU overhead — a meaningful but predictable cost that this form factor keeps to a minimum.
- 2.7-inch depth, single-sided design: Front-access only, which is appropriate for wall-mount enclosures and two-post open-frame racks where rear access isn't viable. The shallow depth avoids conflicts with cable bundles running vertically on the rear rail.
- Flexible finger design: The integrated fingers separate and route individual patch cords, making moves, adds, and changes (MACs) faster — you can re-route a single cable without disturbing adjacent runs. In active environments like NOCs, hospitality wiring closets, or security head-end rooms handling frequent port reassignments, this directly reduces technician time per change.
- Closed-pathway design with dual-hinging front cover: The cover protects patch cables from accidental displacement or snagging during adjacent rack work. Dual-hinge operation means you can open the cover from either side — useful when rack access is constrained to one side of the aisle.
- Supports copper, fiber optic, and coax: A single manager handles all three cable types, which simplifies procurement and installation planning in mixed-media racks running both Ethernet and coax feeds — relevant in surveillance head-ends where IP cameras (Ethernet) and analog encoder inputs (coax) share the same rack.
- RoHS Compliant, UL 2416, CSA C22.2: Meets North American electrical and environmental safety standards. UL 2416 is the UL standard for wire and cable management products — relevant for commercial installations subject to building inspection or code compliance review. RoHS compliance matters for projects with environmental procurement requirements.
- Black finish: Matches standard black rack equipment, maintaining a professional and visually consistent rack appearance in customer-facing or regularly audited installations such as security operations centers and network rooms.
Integration & Compatibility
The WMPLFSE installs on any standard EIA/ECA-310-E compliant 19-inch rack or cabinet — two-post open-frame, four-post open-frame, and enclosed cabinets with standard EIA hole spacing. It is listed as a single-sided horizontal manager in the Panduit cable management portfolio; the competitive cross-reference to WMBN1 (noted in product documentation) indicates it is positioned as a direct alternative in that form factor class. For installations requiring front-and-rear cable routing or greater depth capacity, a double-sided manager in the same family would be the appropriate upgrade. For larger cable bundles or higher cable counts per RU, consider pairing with a vertical rack cable management solution to prevent horizontal managers from becoming a bottleneck at the ends.
No power, data, or media compatibility is required — this is a passive cable management accessory. It integrates into rack infrastructure without coordination with active equipment configurations.
What's in the Box
- 1x Panduit WMPLFSE PatchLink™ Horizontal Single-Sided Manager, 1RU
Frequently Asked Questions
Q: What rack width does the WMPLFSE fit?
A: The WMPLFSE is designed for standard EIA 19-inch (483mm) racks and cabinets. It will not fit 23-inch or non-standard rack widths without additional adapter hardware.
Q: Is the WMPLFSE single-sided or double-sided?
A: Single-sided. It provides front-only cable access, making it appropriate for wall-mount enclosures and two-post racks where rear access is limited or unavailable.
Q: What types of cables can the WMPLFSE manage?
A: It is designed to manage copper, fiber optic, and coax patch cables in a single pathway, so mixed-media rack installations do not require separate managers by cable type.
Q: What is the depth of the WMPLFSE?
A: 2.7 inches. This shallow depth is intentional for installations with limited front-to-rear clearance or where rear rack space is occupied by cable bundles.
Q: Is the WMPLFSE RoHS compliant?
A: Yes. The WMPLFSE meets RoHS requirements and also carries UL 2416 and CSA C22.2 certifications, making it appropriate for commercial installations subject to code compliance review.
Q: Does the WMPLFSE come with mounting hardware?
A: The product ships as a single unit (package quantity: 1). Confirm specific mounting hardware inclusion with the order — standard EIA rack mounting is integral to the unit design.
The WMPLFSE earns its place in IDF and security head-end racks specifically because of that 2.7-inch depth — in a standard 24-inch-deep wall-mount enclosure, a deeper manager cuts into the space you need for switch and NVR cables to make their bend radius without stressing the connector. I've seen integrators skip horizontal management entirely in shallow racks for exactly this reason, and then spend three times as long troubleshooting a patching mistake buried in an unmanaged bundle. The WMPLFSE solves that without the depth penalty.
Technical Highlights:
- 2.7-inch depth: Fits wall-mount enclosures and two-post open-frame racks where a standard 3.5–4-inch manager creates clearance issues against rear cable bundles or switch rear-panel ports.
- Dual-hinging front cover: Lets you open from either side of the rack — a real time-saver in end-of-row or corner rack placements where one side of the aisle is always tighter than the other.
- UL 2416 / CSA C22.2 / RoHS: Clears the compliance checklist for commercial building inspections and green procurement requirements without any special documentation chase — the certifications are built into the SKU.
Deployment Considerations:
- Single-sided means all cable routing is front-access only — if your rack design requires rear cable egress or you're running high cable counts that need a rear pathway, this is the wrong choice; step up to a double-sided manager in the same family.
- At 1RU per manager, budget your rack unit count carefully in dense patch panel deployments — adding a manager between every two rows of a 48-port panel stack in a 12U wall-mount enclosure will consume 3–4RU of your available space.
This unit is the right call for surveillance and access control head-end racks in commercial buildings — specifically IDF closets running a mix of Ethernet drops to IP cameras, fiber uplinks, and coax feeds to legacy analog encoders, where a single manager type handling all three cable types simplifies both the install and future MACs.
