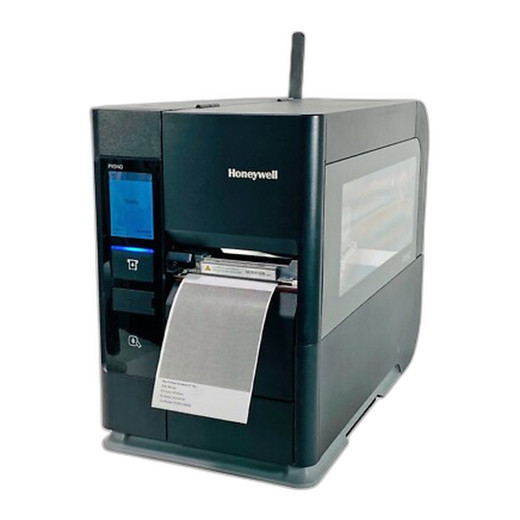

Honeywell PX940 PX940V3H110060202 Industrial Printer with Verifier

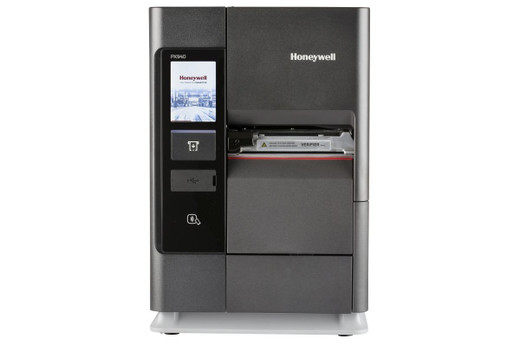

Honeywell PX940V3H110060202 Industrial Label Printer with Verifier

The Honeywell PX940V3H110060202 is a production-grade industrial label printer engineered for high-volume printing in warehouse, manufacturing, and logistics environments. This configuration combines thermal transfer printing with integrated barcode verification, eliminating the need for separate offline quality checks. The built-in 1D and 2D barcode verifier grades every label at point-of-print to ISO/IEC 15416 and ISO/IEC 15415 standards, ensuring regulatory compliance and supply chain accuracy without workflow interruption.

Key Features

• 203 DPI thermal transfer and direct thermal printing for sharp, scannable output
• Print speeds up to 350 mm/s (14 ips) with consistent quality across extended production runs
• Integrated barcode verifier for 1D and 2D codes with ISO-standard grading
• 3.5-inch color touch LCD display for intuitive operator control and real-time diagnostics
• Rewinder, peeler, and label taken sensor for automated label finishing and handling
• 105.7 mm (4.16 in) print width for shipping labels, compliance tags, and product identification
• 450 m (1476 ft) maximum ribbon capacity for extended production intervals
• Android-based OS with dual-core ARM Cortex-A9 processor and 1 GB DDR3 SDRAM for complex label templates
• Multiple printer language emulations: ZPL II, ZSim2, Direct Protocol, Fingerprint, and Intermec Printer Language

Connectivity and Integration

Full enterprise connectivity enables seamless WMS and ERP integration. The PX940 supports Ethernet, USB 2.0, RS-232, Bluetooth, and 802.11 a/b/g/n/ac Wi-Fi, allowing flexible deployment in networked warehouse environments or standalone mobile applications. NFC support adds capabilities for device configuration and maintenance workflows.

Technical Specifications

• Resolution: 203 DPI
• Print Speed: 25–350 mm/s at 203 DPI
• Media Handling: Up to 213 mm (8.38 in) roll diameter
• Processor: Dual Core ARM Cortex-A9 1 GHz
• Memory: 1 GB DDR3 SDRAM, 256 MB Flash storage
• Operating Temperature: 5–40°C (41–104°F)
• Storage Temperature: -20–70°C (-4–158°F)
• Weight: 23.5 kg (51.8 lbs) with verifier
• Dimensions: 261 × 506 × 398.7 mm (10.3 × 19.9 × 15.7 in)

Applications

Ideal for distribution centers, manufacturing facilities, healthcare logistics, and e-commerce operations requiring high-speed label production with built-in quality assurance. The integrated verifier reduces reprinting waste and ensures barcode compliance across multi-carrier shipping, inventory management, and regulatory labeling scenarios.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PX940 with integrated verifier represents a unified printing and verification solution that improves operational efficiency by eliminating offline verification bottlenecks. The 203 DPI specification and up to 350 mm/s print speed strike a balance between label clarity and throughput for mid-to-high-volume production. The dual-core processor and 1 GB RAM enable complex label designs without performance degradation, critical for organizations managing variable-data or graphics-heavy labels.

Multi-protocol emulation (ZPL II, Intermec) ensures compatibility with legacy systems, reducing integration costs in heterogeneous environments. For operations where barcode scanning reliability directly impacts fulfillment accuracy, the point-of-print verification capability significantly reduces downstream errors and associated costs.
