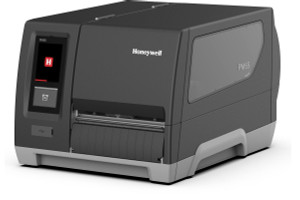

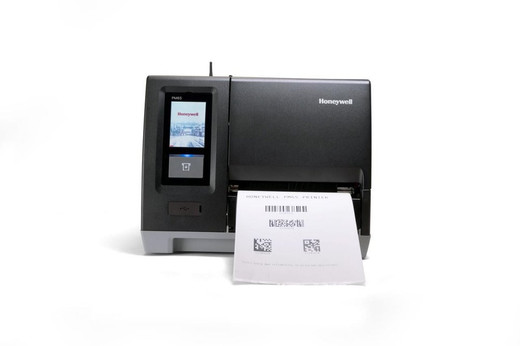

Honeywell PM65A11000000301 B1 Industrial Label Printer 300 DPI

The Honeywell PM65A11000000301 B1 is a production-class thermal label printer engineered for high-volume enterprise labeling in warehouse, manufacturing, and distribution environments. Delivering 300 DPI resolution with dual Direct Thermal and Thermal Transfer printing capabilities, this printer produces consistently scannable barcode labels, shipping documentation, compliance tags, and asset identification labels at scale. The 167.4 mm maximum print width accommodates everything from compact product tags to full-width shipping labels, making it suitable for diverse labeling workflows across industrial label printing operations.

Key Features

• 300 DPI direct thermal and thermal transfer printing: Produces sharp, consistently scannable barcodes and text. Higher DPI means higher barcode accuracy — critical when scanners are reading labels in motion or at distance. Direct thermal eliminates ribbon costs for standard black labels; thermal transfer supports color and specialty media.
• Maximum print width 167.4 mm (6.59 inches): Accommodates standard 4x6 shipping labels, compliance tags up to full width, and compact product labels on the same printer. Reduces need for multiple printers across different label classes.
• 6-inch color touch LCD display: Eliminates dependency on external configuration tools or IT support for routine setup, status checks, and job monitoring. Reduces operator training time and downtime during label format changes.
• Dual connectivity — Gigabit Ethernet and Wi-Fi 6 (802.11ax): Gigabit Ethernet provides wired reliability for centralized print rooms; Wi-Fi 6 enables flexible placement on production floors without new cabling. Dual-band support (2.4 GHz and 5 GHz) adapts to crowded warehouse environments.
• Bluetooth 5.1 and dual USB 2.0 host ports: Mobile device pairing for label templates or print jobs; USB connectivity supports barcode scanners, label design tools, or external media readers without network overhead.
• Multi-language printer emulation (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): Legacy WMS, ERP, and cloud print systems send jobs directly without code conversion. Reduces software redevelopment cost and integration risk when consolidating multi-vendor printer estates or migrating from older platforms.
• 256 MB SDRAM and 512 MB Flash memory: Handles complex label designs, graphics, and large print queues without slowdown. Flash storage allows offline label template storage, reducing reliance on network availability during peak production.
• Operating range 5–40°C, 10–90% non-condensing humidity: Stable performance in temperature-controlled distribution centers and manufacturing floors. Non-condensing spec excludes damp, unheated warehouses — relevant if your site experiences seasonal humidity or temperature swings.
• Compact footprint 484 × 292 × 350 mm, 13.7 kg (30.2 lbs): Fits desktop or shelf mounting in centralized print rooms without requiring dedicated cabinetry. Weight allows one technician to relocate the printer during facility reorganization.
• RS-232 serial connectivity: Bridges legacy conveyor systems, label dispensers, or production line sensors that use serial protocols — avoids costly hardware replacement.

Integration & Compatibility

The PM65A11000000301 B1 integrates with warehouse automation and manufacturing systems via ZPL II and Fingerprint emulation, the industry standard for thermal label printers. Cloud-based print management, on-premises WMS, and ERP platforms send jobs through Gigabit Ethernet or Wi-Fi without protocol translation. The color touch display includes built-in diagnostics (media low, temperature warnings, print head status), reducing troubleshooting time and enabling predictive maintenance scheduling. Integration with consumables tracking systems is straightforward through USB or network configuration.

When to Choose a Different Model

If label volume exceeds 500,000 impressions per month, consider investigating higher-speed variants in the Honeywell PM65A series or larger format printers (8-inch+ width). If your labels require photographic color quality or specialty finishes (metallics, embossing), a premium inkjet or offset solution may be more cost-effective. For outdoor or wet-environment applications, verify that the 10–90% non-condensing humidity specification aligns with your site conditions — condensation will damage the print head.

Frequently Asked Questions

Q: Does the PM65A11000000301 B1 support wireless printing from mobile devices?

A: Yes. The printer includes Wi-Fi 6 (802.11ax) and Bluetooth 5.1. Operators can send label jobs from a smartphone or tablet running supported label design apps, or pair the printer directly to a handheld scanner for real-time label verification.

Q: What is the recommended duty cycle for the PM65A11000000301 B1?

A: The printer is designed for sustained production environments. Consult the manufacturer datasheet or technical support for specific monthly volume recommendations and print head maintenance intervals based on your label stock and thermal transfer ribbon usage.

Q: Can the PM65A11000000301 B1 print variable data labels in sequence?

A: Yes. ZPL II and Fingerprint emulation support batch label printing with sequential numbering, barcodes, and variable fields. Configure label templates on the color touch display or via ZPL commands from your WMS.

Q: Is the PM65A11000000301 B1 compatible with Zebra or third-party thermal transfer ribbon?

A: Thermal transfer compatibility depends on ribbon width, core size, and coating formulation. Use Honeywell-approved ribbon, or consult the manufacturer's media compatibility guide before deploying third-party stock to avoid print quality issues and potential print head damage.

Q: What networking setup is required to deploy the PM65A11000000301 B1 across multiple warehouse zones?

A: Configure each printer to your corporate Wi-Fi network (5 GHz recommended for industrial environments) or hard-wire to Gigabit Ethernet. Use print management software or your WMS queue to route label jobs to the nearest printer. The dual connectivity allows some units to run wired and others wireless.

Q: Does the PM65A11000000301 B1 offer any data security features?

A: Verify with the manufacturer or datasheet for details on network encryption, secure boot, or firmware signing. Industrial label printers typically do not include IT-grade security features — focus on physical access control and network segmentation if the printer handles sensitive compliance labeling.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PM65A11000000301 B1 is a field-proven, mid-to-high-volume thermal printing platform. The combination of dual print methods (direct thermal and thermal transfer), broad emulation support (ZPL II, Fingerprint), and enterprise connectivity (Gigabit Ethernet + Wi-Fi 6) makes it a low-risk choice for organizations consolidating multi-vendor printer estates or migrating from legacy systems. The 512 MB Flash and 256 MB SDRAM ensure complex label designs queue without slowdown, and the color touch LCD eliminates external configuration tools — a real operational gain for production floors where downtime costs money.

Technical Highlights:

• 300 DPI dual-method printing: Sharp barcode clarity for high-speed scanning environments; direct thermal mode eliminates ribbon cost for standard labels, thermal transfer mode unlocks color and specialty media without hardware swap.
• Wi-Fi 6 and Gigabit Ethernet: Simultaneous wired and wireless capability allows centralized print hubs to stay online via Ethernet while temporary production stations link via Wi-Fi — no network dependency for critical labeling operations.
• 512 MB Flash + 256 MB SDRAM: Offline template storage and queue buffering mean the printer doesn't stall when your WMS network hiccups. Critical for just-in-time shipping operations.
• Multi-protocol emulation: ZPL II and Fingerprint support means zero software redevelopment if your legacy WMS was built for a competing thermal printer — direct job hand-off.

Deployment Considerations:

• The 10–90% non-condensing humidity spec excludes cold-storage or unheated warehouse environments — if your facility experiences seasonal moisture or temperature swings below 5°C, verify thermal stability before purchase.
• Wi-Fi deployment in dense warehouse environments (metal racks, RF noise) may require site survey and careful AP placement — default to wired Gigabit if Wi-Fi performance is uncertain.
• 167.4 mm width fits 4x6 shipping labels and most compliance tags, but full-width 8-inch labels require a larger printer. If your label range spans 6 inches and 8 inches, budget for a second unit or test your largest labels in advance.

Best suited for centralized printing hubs or production-floor mounting where print volume justifies the footprint and upfront investment. Not recommended for low-volume (<50K labels/month) operations where a desktop or portable printer is more cost-effective.
