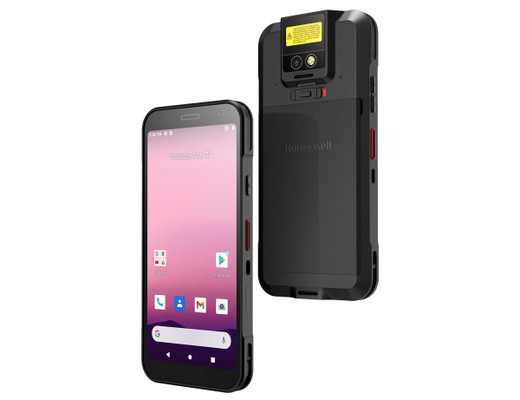

Honeywell CT32-X0N-57S1FBU Handheld Mobile Computer
The Honeywell CT32-X0N-57S1FBU is an enterprise-grade handheld mobile computer built for warehouse, manufacturing, and field service environments where connectivity and durability cannot be separated. This device combines current wireless standards (5G Sub-6 GHz, WiFi 6E) with industrial-grade environmental protection to support real-time data capture, WMS integration, and mobile-first operations across multiple shifts and outdoor conditions.
Key Capabilities
- 6.0 in FHD display (2400 x 1080) with day/night vision: Operators read picking lists, SKU confirmation, and shipment manifests with equal clarity in bright outdoor areas, dimly lit warehouse floors, and nighttime field operations — eliminating the common complaint of standard LCDs becoming illegible in sunlight or after dark.
- IP65/IP68 sealed construction: Dust ingress and moisture splash will not disable this device. Incidental washdown or prolonged exposure to warehouse humidity is handled without special housings. (Full submersion requires IP68-rated accessories.)
- 1.8 m (6 ft) drop rating: Survives typical industrial handling and accidental impacts onto concrete or shelving — reduces unplanned device replacement costs and downtime compared to consumer-grade mobile computers.
- Qualcomm QCM4490 Octa-Core 2.4 GHz processor: Sufficient processing power for scan-heavy workflows, real-time barcode validation, and simultaneous WMS API calls without noticeable lag. Not overspecified for warehouse operations, resulting in balanced power consumption and lower total cost of ownership.
- 5G Sub-6 GHz, WiFi 6E (802.11 a/b/g/n/ac/ax), Bluetooth 5.2: Future-proof broadband when available; WiFi 6E ensures reliable throughput on modern enterprise networks even when dozens of devices connect simultaneously. Bluetooth 5.2 pairs with wireless barcode scanners, printers, and label makers without separate dongles.
- 8 GB RAM with 128 GB Flash and microSD expansion: Adequate memory for enterprise Android applications, background sync, and offline database caching. microSD expansion supports deployment of large image libraries, offline maps, or custom field-service applications.
- 4500 mAh Li-Ion battery supporting 12+ hours typical runtime: Eliminates mid-shift battery swaps on standard 8–10 hour warehouse operations. High-volume scanning or continuous GPS logging in extended 12+ hour shifts may require midday charging, depending on workflow intensity.
- 269 g (9.5 oz) weight: Lightweight enough for all-day handheld use without fatigue — meaningful for picking, counting, and inspection operations where the device is carried constantly rather than docked.
- Android operating system: Enterprise Android support streamlines development, integration, and app deployment for teams already standardized on the Android ecosystem. Organizations requiring legacy Windows CE support should evaluate other mobile computers in the Honeywell catalog.
Typical Deployment Scenarios
- Warehouse picking and packing: Real-time WMS integration, barcode scanning, and pick-to-light workflows with 5G or WiFi 6E uplink.
- Manufacturing floor tracking: Production line inventory, asset traceability, and shop-floor data capture in environments with overhead moisture or dust.
- Field service and inspections: Proof-of-work photo documentation, job assignment via GPS, and offline data sync for technicians without consistent coverage.
- Last-mile delivery and logistics: Real-time proof-of-delivery, driver location tracking, and customer signature capture with optional rugged case and shoulder harness.
- Inventory audits and cycle counts: Outdoor or covered dock operations where standard LCDs fail; day/night display and IP65 sealing ensure legibility and reliability across shifts.
Integration & Connectivity
The CT32-X0N-57S1FBU pairs directly with enterprise WMS platforms via standard HTTP/HTTPS APIs over 5G, WiFi 6E, or cellular fallback. Bluetooth 5.2 integrates with Zebra and Honeywell wireless barcode scanners, label printers, and third-party mobile accessories without proprietary docking or pairing hubs. Applications built on Android Enterprise, Intune, or MobileIron deploy directly to the device for secure management and remote configuration.
When to Consider an Alternative
If your environment requires submersion or high-pressure wash-down (IP68 with extended ratings), evaluate rugged cases or alternative sealed handheld designs. If your team depends on Windows CE or legacy enterprise applications, Honeywell's Windows Embedded Handheld line offers backward compatibility. For purely indoor, temperature-controlled warehouse operations without outdoor or nighttime work, a lighter Android consumer device may reduce cost, though it will lack the drop rating and environmental sealing of the CT32-X0N-57S1FBU.
Frequently Asked Questions
Q: Is the CT32-X0N-57S1FBU 5G available in all regions?
A: The CT32-X0N-57S1FBU supports 5G Sub-6 GHz where carrier coverage exists. WiFi 6E and cellular LTE are available globally. In areas without 5G coverage, the device automatically falls back to WiFi 6E or LTE without configuration changes.
Q: Can the CT32-X0N-57S1FBU work offline?
A: Yes. Offline applications and data syncing via microSD or local database is supported on Android. Once connectivity returns, applications can reconcile cached transactions with your WMS. Specific offline capability depends on your application design.
Q: What is the warranty on the CT32-X0N-57S1FBU?
A: Standard Honeywell warranty information should be confirmed with your authorized distributor or reseller. Warranty terms vary by region and purchase agreement.
Q: Does day/night vision require special configuration?
A: No. The CT32-X0N-57S1FBU's display automatically adjusts brightness and contrast based on ambient light, similar to smartphone adaptive displays. No driver installation or calibration is needed.
Q: Will the CT32-X0N-57S1FBU survive a drop onto concrete?
A: The 1.8 m (6 ft) drop rating indicates the device has been tested to survive falls from that height onto concrete and other hard surfaces. Repeated drops or drops exceeding 1.8 m may cause damage. Screen protectors and rugged cases can provide additional impact protection.
Q: Can I expand storage with a microSD card?
A: Yes. The CT32-X0N-57S1FBU supports microSD card expansion for large image libraries, offline maps, or custom application data. Maximum microSD capacity supported should be confirmed in the device documentation.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CT32-X0N-57S1FBU represents Honeywell's mature approach to enterprise mobility. The combination of 5G Sub-6 GHz, WiFi 6E, and IP65/IP68 durability positions this device at the intersection of current wireless performance and industrial-grade reliability. For warehouse and field-service integrators, this is a practical workhorse — not overspecified for picking and packing, but capable enough to handle complex WMS APIs, photo documentation, and real-time GPS tracking without throttling.
Technical Highlights:
- 6.0 in FHD day/night display: Eliminates the mid-shift illegibility problem on standard LCDs when operators work across multiple lighting zones (outdoor pickup, indoor sorting, nighttime shipping dock). This is a concrete operational benefit, not a luxury feature.
- QCM4490 processor with 8 GB RAM: Balanced power-efficiency equation. Sufficient for scan-heavy workloads and simultaneous WMS sync without the power drain (and cost) of overspecified chips. Real-world runtime extends toward 12+ hours on typical warehouse cycles.
- 5G/WiFi 6E dual broadband: Future-proofs the fleet when 5G coverage arrives; WiFi 6E handles congested multi-device warehouses (20+ devices per access point) without noticeable latency. Bluetooth 5.2 scales wireless barcode scanner and printer pairing without additional infrastructure.
- IP65/IP68 + 1.8 m drop survival: Reduces replacement frequency compared to consumer-grade devices. Two-year TCO often favors a durable handheld over three refreshes of unprotected alternatives.
Deployment Considerations:
- Battery life depends on scanning intensity and GPS logging. High-frequency GPS data collection (every 30 seconds) or continuous barcode scanning may require midday charging in 12+ hour shifts — factor this into mobile device cart or charging station planning.
- Android dependency. Organizations standardized on Windows CE or proprietary warehouse devices will face retraining and potential application rewrite. Confirm your WMS supports Android native clients or RESTful APIs before committing.
- microSD expansion is a practical plus for offline maps, image caches, or field-service databases. However, do not rely on it as a security archive — encryption and MDM policies (Intune, MobileIron) should protect sensitive data on the device itself.
Position the CT32-X0N-57S1FBU for operations spanning multiple shifts, outdoor dock areas, or outdoor last-mile delivery routes. The day/night display and IP65 sealing pay for themselves in environments where standard consumer devices fail mid-shift. For purely climate-controlled indoor warehouses, a lighter device may be sufficient.
