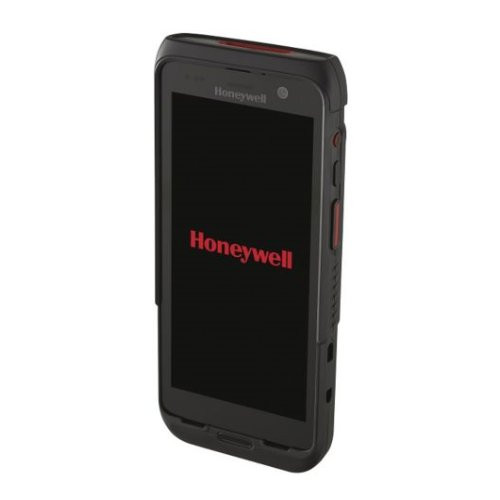

Honeywell CT47-X0N-37D100G Handheld Mobile Computer
The Honeywell CT47-X0N-37D100G is a field-hardened mobile computer engineered for warehouse, logistics, and field service environments where connectivity, scanning capability, and durability are non-negotiable. Built on the Qualcomm QCS6490 octa-core processor running at 2.7 GHz with 6 GB RAM, this device handles real-time barcode capture, inventory synchronization, and multimedia documentation without lag or crashes during high-volume operations. The CT47-X0N-37D100G combines integrated barcode scanning, modern wireless standards, and genuine ruggedness — not a consumer phone retrofitted for business.
Key Features
- Qualcomm QCS6490 Octa-Core Processor (2.7 GHz) with 6 GB RAM: Delivers sustained performance for scanning heavy workflows and cloud synchronization without throttling. Sufficient headroom for enterprise mobility applications without excessive power drain — critical for all-shift operation in remote locations.
- 5.5-inch Full HD (2160 x 1080) Display with Corning Gorilla Glass 5: Offers legible screen real estate for barcode entry, photo verification, and app interfaces in direct sunlight or indoor warehouse lighting. Gorilla Glass 5 resists scratches from daily contact with cargo and equipment, reducing replacement costs over device lifetime.
- FlexRange Imager Barcode Engine: Captures 1D and 2D barcodes at variable distances — close-range and far-field — without requiring manual focus or a separate scanning device. Consolidates barcode capture into the device itself, streamlining deployment and reducing per-user equipment cost.
- Front 8MP and Rear 13MP Cameras: Front camera enables barcode scanning and document imaging; rear camera captures proof-of-condition photos, damage documentation, and shelf/bin verification. Dual optics eliminate the need for a separate photo or dedicated barcode camera in most workflows.
- WiFi 6E (802.11 a/b/g/n/ac/ax) Connectivity: Delivers multi-gigabit wireless speeds where available and maintains backward compatibility with legacy 802.11ac and 802.11n networks. WiFi 6E extends into the 6 GHz band, reducing congestion in dense warehouse environments and ensuring faster cloud sync during peak inventory operations.
- IP65/IP68 Ingress Protection with 1.8 m (6 ft) Drop Rating: IP65 shields against dust and water spray; IP68 adds submersion capability — essential for wet dock and freezer operations. The 6-foot drop spec (without protective case) indicates genuine shock absorption and frame integrity, not marketing exaggeration. Supports real drops on concrete and warehouse floors.
- Bluetooth 5.2 Support: Enables wireless pairing with peripherals — barcode scanners, printers, headsets — without splitter cables or USB hubs. Bluetooth 5.2 range and stability support reliable connectivity across large warehouse floors.
- 4775 mAh Lithium-Ion Battery: Delivers full-shift runtime under typical scanning and WiFi usage. Warm-swap capability (if dock supplied separately) extends operation beyond a single charge in 12+ hour operations without requiring downtime.
- microSD Expansion Storage: Supports local caching of barcode images, transaction logs, and offline transaction buffers. Expandable storage reduces dependency on real-time cloud connectivity in areas with intermittent WiFi coverage.
- Android Non-GMS Operating System: Runs Android but without Google Mobile Services, allowing deployment in environments where Google Play Store access is restricted or not required. Reduces attack surface for security-sensitive operations and supports offline-first architectures.
Integration and Deployment Considerations
The CT47-X0N-37D100G integrates with enterprise mobility management platforms via standard Android APIs, USB provisioning, and over-the-air enrollment. WiFi 6E ensures compatibility with modern enterprise network infrastructure; older 802.11n networks will operate but without speed advantage. The device supports barcode transmission to warehouse management systems (WMS) via cloud APIs or on-premises integration endpoints. Dual cameras enable workflow flexibility — use the rear for inventory snapshots while the front camera handles barcode scanning, or assign both to photo-heavy documentation tasks.
Temperature tolerance ranges from -20°C to 50°C (operating) and -30°C to 70°C (storage), making the CT47-X0N-37D100G suitable for cooler storage areas but not ideal for extreme freezer environments below -20°C without thermal conditioning.
Frequently Asked Questions
Q: Does the CT47-X0N-37D100G support mobile workforce management (MWM) and enterprise app distribution?
A: Yes. The device runs Android non-GMS and can be enrolled in enterprise mobility management platforms using standard MDM/EMM protocols (USB provisioning or OTA enrollment). Apps can be distributed via internal app stores or sideloaded via microSD.
Q: What barcode types does the FlexRange Imager support?
A: The FlexRange Imager is a multi-format engine that reads 1D codes (Code 128, UPC/EAN, Code 39, Interleaved 2-of-5) and 2D codes (QR, Data Matrix, PDF417, Aztec). Specific symbology configuration is enabled via firmware and application settings.
Q: Is the CT47-X0N-37D100G suitable for outdoor field service operations?
A: Yes. IP65/IP68 rating and the 6-foot drop specification support outdoor deployment. However, the 5.5-inch display may be difficult to read in direct sunlight — consider a hood or anti-glare screen protector for extended outdoor use.
Q: Can the battery be swapped without powering down the device?
A: Warm-swap capability depends on the dock or charging cradle used. Standard battery swap requires shutdown. Confirm dock availability with your reseller if warm-swap operation is mandatory.
Q: Does the CT47-X0N-37D100G support biometric authentication?
A: Evidence does not explicitly document fingerprint or facial biometric sensors. Enterprise authentication can be managed via Android's built-in PIN, pattern, or password methods, or via mobile device management (MDM) policies that enforce certificate-based login.
Q: What is the warranty period for the CT47-X0N-37D100G?
A: Warranty terms are set by the vendor and reseller. Confirm warranty duration and coverage (accidental damage, battery, drop protection) with your authorized dealer before purchase.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CT47-X0N-37D100G represents a pragmatic engineering decision: integrate barcode scanning, dual cameras, and WiFi 6E connectivity into a single field-grade device rather than juggling a phone, a separate scanner, and a camera. The FlexRange Imager eliminates the scanning bottleneck — no separate hardware to pair, charge, or replace — and the QCS6490 processor delivers enough sustained throughput for real-time cloud sync without battery collapse by mid-shift.
Technical Highlights:
- WiFi 6E (802.11ax): Modern warehouse networks now deploy WiFi 6 access points; the CT47-X0N-37D100G will exploit those investments immediately. Backward compatibility with 802.11ac ensures no disruption in older facilities, but you gain multi-gigabit throughput where available — meaningful when syncing high-res barcode or product photos to a cloud inventory system.
- IP65/IP68 Dual Rating with 1.8m Drop Spec: Not a theoretical number. This device survives real warehouse impacts — pallets, concrete floors, racking edge strikes. IP68 opens doors to cooler and dock areas where moisture is constant.
- Dual Camera (8MP front, 13MP rear): The rear camera handles high-resolution documentation (product condition, shelf configuration); the front camera captures barcode imagery without requiring a macro lens or dedicated scanner optics. Eliminates device swapping during pick/pack cycles.
Deployment Considerations:
- Battery Runtime Validation Required: The 4775 mAh battery is adequate for typical scanning operations, but high-definition photo capture, continuous video, and WiFi 6E transmission in weak signal areas will accelerate drain. Test runtime in your specific workflow before large-scale rollout — screen brightness, barcode engine activity, and cloud sync frequency all affect longevity.
- Non-GMS Android Trade-off: Eliminates Google Play Store, but that's often an advantage in regulated or secure deployments. Expect to sideload or use an internal app distribution platform; standard business apps (Salesforce, SAP Mobile, Microsoft Teams) are available but require sideloading or EMM distribution channels.
- Thermal Limit at -20°C: Suitable for typical indoor cooler operations (35–40°F / 2–5°C) but not for ultra-low freezer environments (-20°C and below). Battery performance also degrades in deep cold.
Deploy the CT47-X0N-37D100G in mid-to-large warehouse operations, outdoor field service routes, and logistics facilities where barcode scanning, photo documentation, and real-time cloud sync are daily workflow staples. The drop rating and IP rating justify its cost in high-impact environments; consumer alternatives will not survive a week of actual warehouse handling.
