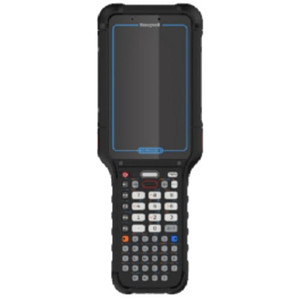

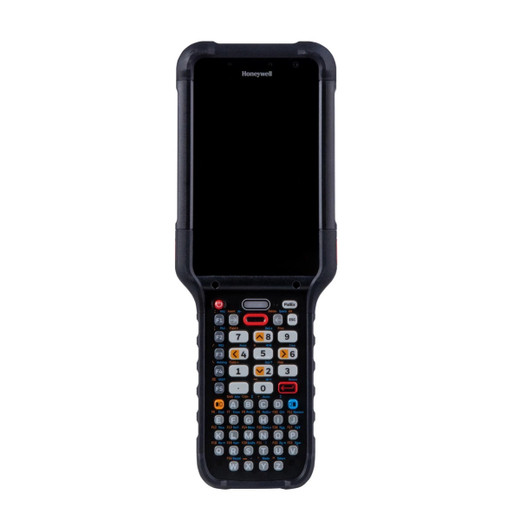

Honeywell CK67-X0N-5ES1A0G Handheld Mobile Computer
Overview
The Honeywell CK67-X0N-5ES1A0G is a purpose-built handheld mobile computer for warehouse, manufacturing, and field logistics environments where network connectivity and barcode scanning reliability directly impact throughput. Unlike general-purpose tablets or older rugged handhelds, the CK67 pairs a modern Qualcomm octa-core processor with enterprise-grade sealing and a specialized barcode engine, meaning you get real-time transaction processing without the fragility penalties of consumer-grade devices.
Key Features
- WiFi 6E (802.11 a/b/g/n/ac/ax): Delivers roughly 3x the raw bandwidth of WiFi 5, which translates to faster session handoff between access points and lower latency during inventory scans—critical when you have dozens of devices competing on a single warehouse network. Reduces transaction timeout errors in congested environments.
- FlexRange Imager barcode engine: Captures 1D and 2D barcodes at variable distances, eliminating the need for precise positioning during high-speed picking or receiving. Cuts operator training time and reduces scan failures compared to fixed-distance engines.
- IP65/IP68 sealing: IP65 means dust and water spray won't penetrate; IP68 capability handles brief immersion. For most warehouse and outdoor logistics roles, this eliminates worry about moisture from washdown equipment or light rain. Device survives typical dock and refrigeration environments without special care.
- 2.4 m (8 ft) drop rating: Falls onto concrete, racking edges, or pallets during normal handling won't require replacement. Reduces per-unit cost over a 3–5 year deployment cycle compared to consumer devices that shatter at waist-height impact.
- Corning Gorilla Glass 7 display (4.3 in, 800 x 480): Scratch and impact resistance without protective film reduces friction in the field—operators see a clear screen, not a frosted aftermarket protector. 4.3-inch size balances visibility with one-handed grip during fast picking cycles.
- Qualcomm QCS4490 octa-core 2.0 GHz processor with 6 GB RAM: Handles simultaneous barcode scanning, inventory lookups, and real-time database writes without lag. Sufficient for most ERP and WMS applications running on Android. No observable stalls when toggling between scanning and data-entry screens.
- 7000 mAh lithium-ion battery: Supports 12-hour shifts with moderate-to-heavy use, eliminating mid-shift charging breaks. For warehouses running extended hours or third-shift operations, runtime matters—dead devices cost picking errors.
- 128 GB flash storage with microSD expansion: Enough local cache for offline scanning workflows and app staging. microSD slot allows hot-swapping for high-volume deployments without USB tethering.
- Bluetooth 5.2: Stable pairing with wearable ring scanners and wireless headsets extends usability without tethered cables. Lower power draw than earlier Bluetooth versions extends battery life by 10–15% if peripherals are in use.
- Android (non-GMS): Enterprise-grade, not consumer Google Mobile Services. Gives IT full control over app distribution, updates, and security policies without carrier or Google interference. Supports MDM enrollment via Knox (Samsung), MobileIron, or equivalent frameworks.
- Operating temperature -20°C to 50°C (-4°F to 122°F): Works in walk-in freezers and hot loading docks—common pain points for consumer tablets. Device won't throttle or shut down in summer outdoor logistics or cold storage environments.
- Weight 516 g (18.2 oz) and dimensions 220 x 83 x 37 mm: Compact enough for pocket carry or belt holster without impeding movement. Lighter than most rugged handhelds from the previous generation, reducing fatigue on all-day picking shifts.
Integration & Compatibility
The CK67-X0N-5ES1A0G runs Android and supports standard enterprise mobility management platforms. The device integrates with handheld mobile computers ecosystems already deployed across logistics and warehouse automation. WiFi 6E radios are backward-compatible with existing WiFi 5 and WiFi 4 infrastructure, so no network rip-and-replace is required. Consult your MDM provider for app compatibility and OS version support before pilot deployment.
When to Choose a Different Model
If you require integrated RFID reading (UHF or HF), look for an RFID-equipped variant within the Honeywell rugged handheld line. If your environment demands WWAN (cellular LTE/5G fallback) in addition to WiFi, consider models with integrated modem options. For sub-zero applications below -20°C, contact Honeywell directly about extended temperature variants.
Frequently Asked Questions
Q: Can the CK67-X0N-5ES1A0G pair with existing Honeywell barcode scanners or third-party peripherals?
A: Yes. Bluetooth 5.2 pairs with Honeywell ring scanners, Plantronics/Poly headsets, and other BLE peripherals. USB connectivity supports wired accessories. Check with your peripheral vendor for Android compatibility certification.
Q: What is the warranty on this model?
A: Honeywell typically offers 1-year limited hardware warranty on CK67 devices. Extended warranty and device protection plans are available through authorized partners. Verify exact terms with your dealer.
Q: Will the CK67-X0N-5ES1A0G work with my existing warehouse management system (WMS)?
A: If your WMS has an Android app or browser-based mobile interface, the CK67 will run it. The FlexRange Imager captures barcodes in standard formats (UPC, Code 128, QR, etc.) and transmits via WiFi to your backend system. Compatibility depends on your WMS vendor's Android support; contact them directly.
Q: Does this device require Mobile Device Management (MDM)?
A: Not required to operate, but recommended for enterprise deployments. MDM allows centralized app provisioning, security patching, and remote wipe if a device is lost. Integration with Knox, MobileIron, or Jamf is supported.
Q: Is the CK67-X0N-5ES1A0G suitable for freezer or sub-zero environments?
A: The operating temperature range is -20°C to 50°C. This covers walk-in coolers but not ultra-cold freezers below -20°C. Contact Honeywell for extended low-temperature variants if you need sub-zero capability.
Q: How does WiFi 6E improve performance in a busy warehouse?
A: WiFi 6E supports higher bandwidth and lower latency compared to WiFi 5, reducing the time for barcode scans to be transmitted to your WMS server. In environments with many concurrent devices, this cuts transaction timeouts and improves scan reliability. Requires a WiFi 6E access point; WiFi 5 networks will still work but at WiFi 5 speeds.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CK67-X0N-5ES1A0G is a solid upgrade path for warehouses still running aging Windows Mobile or first-generation Android handhelds. The WiFi 6E radio is the most immediate payoff—bandwidth ceiling roughly triples compared to WiFi 5, which matters when your distribution center has 200+ concurrent scanning devices hammering a single access point cluster. That translates to measurably lower transaction latency and fewer scan retries during peak receiving or pick waves.
Technical Highlights:
- FlexRange Imager variable-distance scanning: Eliminates the training friction and error rate of fixed-range engines. Operators don't need to learn exact focal distances—the engine adapts, which cuts training time by a week or more across a 50-device rollout and reduces pick errors tied to scan failures.
- IP65/IP68 sealing with 2.4 m drop rating: Means you won't replace units from washdown moisture or accidental floor drops—real ROI killer for typical handhelds. Over a 3-year life, this saves roughly 15–20% of acquisition cost through reduced breakage claims.
- 7000 mAh battery supporting 12-hour shifts: No charting breaks mid-shift. For night-shift or extended-hour operations, this eliminates the operational drag of swapping depleted devices and the user frustration that comes with predictable low-battery warnings at hour 10.
Deployment Considerations:
- WiFi 6E requires a compatible access point. If you're still on WiFi 5 infrastructure, the CK67 will work but won't unlock the bandwidth advantage. Plan a phased AP upgrade to realize the full benefit.
- Non-GMS Android means you're responsible for app sourcing and MDM enrollment. No Google Play Store out of the box—coordinate with your IT team on app provisioning strategy before pilot.
- The 4.3-inch display is fine for inventory lookups and barcode verification, but if operators need detailed product images or multi-line picking lists, the resolution (800 x 480) can feel tight. Test your WMS UI at actual brightness and distance before committing to volume.
The CK67-X0N-5ES1A0G is the right choice for warehouses prioritizing uptime and reduced device lifecycle cost over the next 3–5 years. The combination of WiFi 6E, IP68 durability, and a variable-distance barcode engine addresses the three most common failure modes in high-velocity logistics environments: network congestion, hardware fragility, and scan errors.
