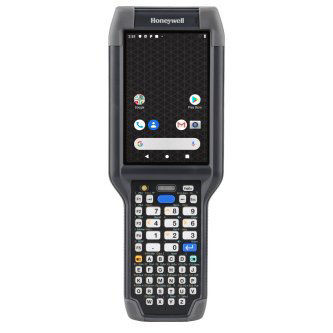

Honeywell CK67-X1N-5ES1A0G Rugged Handheld Mobile Computer
The Honeywell CK67-X1N-5ES1A0G is a purpose-built enterprise handheld for warehouse, manufacturing, and field service operations where durability and connectivity matter more than form factor compromises. This device pairs a Qualcomm QCS4490 octa-core 2.0 GHz processor with 6 GB RAM to handle real-time inventory, barcode capture, and data synchronization without lag. The decision point: this is not a consumer phone adapted for work — it's engineered from the ground up for drops, wet conditions, and shift-length battery life in harsh environments.
Key Features
- 5G Sub-6 GHz and mmWave connectivity — enables sub-second cloud sync and real-time asset tracking even in congested warehouse RF environments. Supports both carrier bands; future-proofs the device against network infrastructure changes over its operational life.
- WiFi 6E (802.11 a/b/g/n/ac/ax) — delivers three simultaneous bands and lower latency than WiFi 5, reducing barcode scan-to-confirmation delays and supporting high-density deployments (100+ devices on a single AP). Measurable throughput improvement in data-dense operations.
- FlexRange Imager barcode engine with day/night capture — reads 1D and 2D codes across varying distances without manual focus adjustment. Night vision capability means operators can work in low-light dock areas and freezer environments without external illumination.
- IP65/IP68 dual-rating sealed design — IP65 handles splashing and airborne dust (common in high-volume pick operations); IP68 option available on other CK67 SKUs if full submersion is required. Protects against washdown and incidental moisture without requiring protective cases that slow operation.
- 2.4 m (8 ft) drop specification — tested to survive repeated concrete-floor drops from waist height. Eliminates expensive replacement cycles from operator drops on warehouse floors and outdoor pavement.
- 4.3-inch display (800 x 480) with Corning Gorilla Glass 7 — large enough for multi-line menu navigation and barcode preview, protected against the constant micro-scratches from holster insertion and equipment contact. Resolution is adequate for text-based workflows; high refresh is not a requirement here.
- 7000 mAh lithium-ion battery — delivers full-shift runtime (8+ hours in typical mixed-use scanning and communication). Eliminates mid-shift charging interruptions that break workflow and reduce throughput in high-volume operations.
- Bluetooth 5.2 — pairs with ring scanners, wearables, and wireless headsets with stable connections at 50+ meter range. Reduces tether dependency and allows hands-free operation in multi-tasking roles (scanning while moving inventory).
- Android non-GMS on Honeywell ScanPal platform — optimized for enterprise, not consumer apps. Reduces bloatware overhead and battery drain; native support for Honeywell scanning libraries and Intermec legacy integrations if present in existing deployments.
- Operating temperature range -20°C to 50°C (-4°F to 122°F) — deployed in freezer operations, outdoor distribution centers, and heated manufacturing floors without thermal shutdown or battery voltage sag that compromises scanning.
Integration & Compatibility
The CK67-X1N-5ES1A0G runs on Honeywell's ScanPal platform, ensuring native compatibility with Honeywell's mobility suite and legacy terminal software. For non-Honeywell deployments, the Android foundation and ONVIF-capable peripheral support allow integration with third-party WMS and inventory systems via standard REST APIs and barcode-triggered webhooks. The 5G and WiFi 6E connectivity removes dependency on legacy Bluetooth low-energy or serial scanning tethers.
When to Choose a Different Model
If your operators primarily work indoors in climate-controlled environments and durability is less critical, consider a standard Honeywell handheld with WiFi 5 — cost will be lower and battery life may be comparable. If you require a tablet form factor for complex on-screen data entry (e.g., multi-page inspection forms), move to a CK75 or larger CK85 device. The CK67-X1N-5ES1A0G is optimized for fast scanning workflows; it is not optimal for long-form data capture or image-heavy applications.
Frequently Asked Questions
Q: Does the CK67-X1N-5ES1A0G work with our existing WMS infrastructure?
A: The device ships with Android non-GMS on the ScanPal platform. If your WMS is cloud-based and accessible via HTTPS, the CK67-X1N-5ES1A0G will connect. Confirm with your WMS vendor that they support the Android version installed. Legacy terminal emulation or proprietary wireless protocols require custom integration or API bridging.
Q: How long does the battery last in a typical shift?
A: The 7000 mAh battery supports 8+ hours of mixed-use operation (scanning, WiFi/5G sync, display on). In high-volume continuous scanning with WiFi enabled, expect 6–8 hours. In light-use or WiFi-off mode, runtime can exceed 10 hours. Runtime depends on screen brightness, connectivity mode, and barcode scanning frequency.
Q: Can the CK67-X1N-5ES1A0G be used in a freezer environment?
A: Yes. The operating temperature range extends to -20°C (-4°F), which covers most commercial freezer and cold-storage operations. Verify that gloved operation is acceptable for your workflow — touch input may require ungloved fingers or capacitive gloves rated for -20°C.
Q: What is the warranty on the CK67-X1N-5ES1A0G?
A: Standard warranty information is not detailed in the technical specification. Contact the manufacturer or authorized reseller for warranty terms and Accidental Damage Protection (ADP) options, which are commonly available for rugged handhelds.
Q: Is 5G coverage available in my warehouse?
A: The CK67-X1N-5ES1A0G supports both Sub-6 GHz and mmWave 5G, but requires coverage from your carrier. If 5G is not deployed in your area, the device will fall back to WiFi 6E or LTE seamlessly. Confirm with your carrier that 5G is available at your facility; if not, the WiFi 6E radio will deliver the performance benefit.
The CK67-X1N-5ES1A0G represents a meaningful step forward in industrial mobile computing. The combination of Qualcomm QCS4490 (dual-core performance cores + hexa-core efficiency cores), 6 GB RAM, and WiFi 6E addresses a specific pain point: latency in high-density warehouse environments where dozens of devices compete for airtime. The 2.4 m drop specification is not theater — it reflects field testing on concrete, and the IP65/IP68 dual rating means the device will survive both splash and incidental submersion without firmware resets or battery shutdown.
Technical Highlights:
- FlexRange Imager with day/night: Eliminates the need for separate near-range and far-range scanners or external lighting. Meaningful cost and workflow simplification in multi-environment operations (dock to freezer to bin).
- 7000 mAh battery for multi-shift runtime: Eliminates charging cart logistics and the 15–20 minute downtime per device per shift. In high-volume operations (50+ devices), this translates to 5+ hours of aggregate throughput recovery daily.
- 5G Sub-6 and mmWave support: Future-proofs the device for emerging IoT-to-cloud architectures. If your carrier deploys 5G in your region, the CK67-X1N-5ES1A0G will take advantage of it without hardware replacement.
Deployment Considerations:
- Android non-GMS means no native Google Play Services — confirm that your required apps and APIs are available on the Honeywell ScanPal platform or via APK sideloading. This is not a blocker but requires upfront validation.
- The 4.3-inch display is adequate for barcode workflows but tight for multi-line data entry or complex menu navigation. If operators will spend more than 20% of their shift on-screen (rather than scanning), consider stepping up to the CK75 form factor.
Deploy the CK67-X1N-5ES1A0G in fast-scan, high-motion environments: last-mile delivery, high-volume parcel sorting, and manufacturing floor bin picking. The 5G and WiFi 6E radios justify the device cost in facilities where network latency is a known pain point, and the rugged design eliminates hidden costs from device replacement and support tickets.
