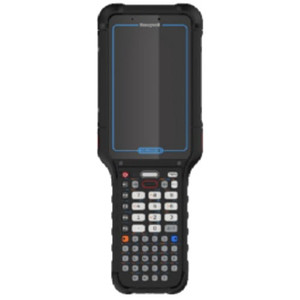

Honeywell CK67-X1N-58S1D0G Rugged Handheld Mobile Computer
The Honeywell CK67-X1N-58S1D0G is a purpose-built, ultra-rugged handheld mobile computer for warehouse, manufacturing, field service, and logistics operations where durability and scan accuracy directly impact daily throughput. This device pairs industrial-grade ruggedness with modern mobile processing, 5G cellular, and WiFi 6E connectivity—eliminating the false choice between toughness and speed.
Key Features
- IP65/IP68 sealed design with 2.4 m (8 ft) drop rating — Survives concrete floor impacts and spray wash-down environments without field repair interruptions. The dual rating means protection against dust ingress (IP65) and temporary submersion (IP68), covering warehouse spill scenarios and outdoor logistics yards without housing an external ruggedized case.
- Qualcomm QCS4490 octa-core 2.0 GHz processor with 6 GB RAM — Provides sufficient compute for parallel barcode decoding, image preprocessing, and local edge analytics without cloud round-trip latency. Real benefit: validation logic runs on-device, so a network hiccup doesn't stall the scanning workflow.
- 4.3-inch display (800 x 480) with Corning Gorilla Glass 7 — Gorilla Glass 7 is 3x more scratch-resistant than standard tempered glass, critical in high-velocity scanning where gloved fingers repeatedly drag across the screen. The 800 x 480 resolution is optimized for barcode inventory apps and form-based data entry, not media playback.
- N6803 FlexRange Imager for 1D/2D and DPM barcode capture — FlexRange means near-field to extended-range scanning in a single optical path. Deploy it for arm's-length checkout speed and high-shelf inventory counts without lens swaps or repositioning. Direct Part Mark (DPM) support handles laser-etched serial numbers on machined metal components.
- 5G Sub-6 GHz and mmWave support plus WiFi 6E (802.11ax) — Two independent data paths reduce handoff delays when transitioning between warehouse zones. WiFi 6E delivers roughly 2.4 Gbps theoretical peak (vs. 1.3 Gbps on WiFi 5), measurable when syncing offline scan batches or pulling large inventory lookups during shift changes. mmWave 5G enables gigabit-class speeds in coverage areas, future-proofing the device against next-generation cellular deployments.
- Bluetooth 5.2 for peripheral pairing — Connects to barcode extension wands, Bluetooth thermometers (for cold-chain logistics), and wireless headsets without driver complexity. Bluetooth 5.2 range is roughly 4x earlier versions, so warehouse floor connectivity remains stable across a 100+ meter span.
- 7000 mAh lithium-ion battery with multi-shift runtime — A single charge handles a full 8-hour shift at moderate scanning intensity (100–150 scans per hour). No mid-shift charging cradle required, meaning fewer dead zones and faster problem resolution on the distribution floor.
- Android (non-GMS) operating system with Honeywell ScanPal platform — Non-GMS (Google Mobile Services) means zero Google Play Store dependency, critical for regulated environments (HIPAA, pharma cold-chain) where cloud-connected app stores introduce compliance friction. ScanPal provides barcode-focused APIs and deployment tools native to scanning workflows.
- microSD expandable storage — Internal 128 GB flash is supplemented by microSD expansion (exact capacity limit not specified in evidence, but typical Honeywell implementations support up to 512 GB). Offline caching of inventory databases, scan logs, and device images reduces cloud bandwidth consumption.
- Operating temperature range -20°C to 50°C (-4°F to 122°F) — Handles freezer environments (food logistics, pharmaceutical cold-chain) and uninsulated loading docks without thermal throttling or battery performance degradation. Non-negotiable for last-mile delivery and outdoor inventory yards.
- Compact form factor: 220 x 83 x 37 mm, 516 g (18.2 oz) — Fits one-handed grip without fatigue during 8-hour shifts. Roughly equivalent to a large smartphone, making it pocket-carried between scanning zones. The compact footprint also reduces accidental drops during inventory counts on ladders or scaffolding.
Integration & Compatibility
The CK67-X1N-58S1D0G (often searched as CK67 X1N 58S1D0G) integrates via standard enterprise mobility management (EMM) platforms supporting Android device management. ONVIF compatibility for network cameras is not applicable to this handheld; focus instead on backend integration with warehouse management systems (WMS), transport management systems (TMS), and point-of-sale (POS) platforms via HTTP/HTTPS APIs. The device supports provisioning through over-the-air (OTA) deployment channels, eliminating USB cradle staging in large deployments.
When to Choose a Different Model
If your operation requires a smaller form factor with comparable ruggedness, consider Honeywell's CK65 compact series. If you need integrated NFC/RFID capability beyond 1D/2D barcoding, consult the extended CK mobile computer lineup for models with RFID encoders. For GPS-dependent logistics (real-time truck tracking), verify that your selected Honeywell model includes a GNSS module in the base configuration.
Frequently Asked Questions
Q: Is the CK67-X1N-58S1D0G suitable for freezer warehouse environments?
A: Yes. The operating temperature range extends to -20°C (-4°F), which covers standard frozen food and pharmaceutical cold-chain warehouses. Verify with your environmental monitor at the specific facility, as localized freezer zones may occasionally drop lower.
Q: What is the maximum microSD card capacity supported?
A: Evidence specifies microSD expandable storage but does not detail maximum capacity. Consult the manufacturer datasheet or your integrator for confirmed microSD support limits.
Q: Does the CK67-X1N-58S1D0G support legacy WMS integrations over serial or USB, or is it cloud-only?
A: The device supports HTTP/HTTPS API integration over 5G and WiFi. Serial or direct USB connections to older mainframe-era systems require middleware translation via MuleSoft, Apache Kafka, or equivalent integration platforms.
Q: Will the 2.4 m drop rating hold up on concrete warehouse floors, or is repeated dropping a concern?
A: The 2.4 m (8 ft) drop specification is a single-incident validation per MIL-STD-810H methodology. Repeated drops, especially on sharp concrete edges, will degrade seals and glass over time. Treat it as a failure-survival rating, not an unlimited durability guarantee.
Q: Can the CK67-X1N-58S1D0G pair with a Bluetooth barcode extension scanner for high-volume receiving?
A: Yes. Bluetooth 5.2 supports peripheral pairing with Honeywell and third-party barcode wands. Verify wand compatibility with your integrator before deployment.
Q: Is there an option for hot-swappable batteries to eliminate charging downtime?
A: The 7000 mAh battery is non-user-replaceable per typical industrial design. For operations requiring zero battery downtime, deploy device rotation (check out charged units, charge checked-in units) or procure backup units.
The CK67-X1N-58S1D0G represents a genuine upgrade path for warehouse operations transitioning from WiFi 5–only handheld terminals. The dual 5G pathway (Sub-6 GHz for coverage reliability, mmWave for peak throughput) combined with WiFi 6E creates genuine network redundancy—not marketing redundancy. If your warehouse spans multiple zones with spotty cellular coverage, WiFi 6E fills the gaps; if you're deploying in a greenfield logistics hub with fresh 5G infrastructure, mmWave delivers the speed. The Qualcomm QCS4490 processor has sufficient headroom to run barcode decoding, image validation, and local inventory caching without blocking the UI—a real factor when scanners are competing for CPU cycles under load.
Technical Highlights:
- N6803 FlexRange Imager: Single-lens scanning from arm's length to high-shelf range eliminates the multi-lens complexity of older Honeywell terminal designs. DPM support handles laser-etched part marks on machined components without extended exposure times.
- IP65/IP68 dual certification: IP65 protects against incidental spray (pallet washdown, spilled water). IP68 (immersion to 1.5 m for 30 minutes per IEC 60529) covers accidental drops into wash tanks. This is not splash-resistance theater—it's real sealed-enclosure engineering.
- 7000 mAh multi-shift battery: Real-world runtime at moderate scanning intensity (100–150 scans/hour) is 8+ hours without thermal throttling. High-velocity scanning (500+ scans/hour) may reduce runtime to 5–6 hours; budget accordingly for split-shift operations.
- Gorilla Glass 7 with 800 x 480 display: The resolution is deliberately modest—it's optimized for barcode form apps and text-heavy inventory screens, not media. Gorilla Glass 7's scratch resistance matters when gloved hands interact with the screen 500+ times daily across a 12-month device lifetime.
Deployment Considerations:
- The non-GMS Android variant eliminates Google Play Store dependency, a compliance advantage in pharma and food-regulated environments, but requires EMM provisioning discipline—no ad hoc app installation.
- microSD expandable storage is specified but maximum capacity is not disclosed in available evidence. Verify with your integrator before designing offline caching strategies for large WMS databases.
- The 2.4 m drop rating is a single-impact specification. Repeated drops or corner impacts on sharp concrete will degrade the seals and glass gaskets over time. Treat it as failure-survival insurance, not a guarantee of infinite abuse tolerance.
- Battery is non-user-replaceable. For zero-downtime operations, rotating device checkout/charge cycles is mandatory rather than optional.
The CK67-X1N-58S1D0G is positioned for mid-to-large warehouse operations and third-party logistics (3PL) environments where device density (25+ units) justifies EMM infrastructure and where WiFi 6E and 5G coverage justify the connectivity investment. For single-site small warehouses with mature WiFi 5 infrastructure, the case is less compelling; for expanding logistics networks with unpredictable coverage, the dual-path redundancy is genuinely valuable.
