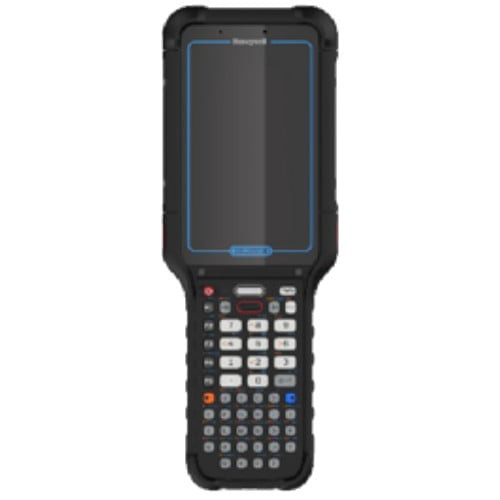

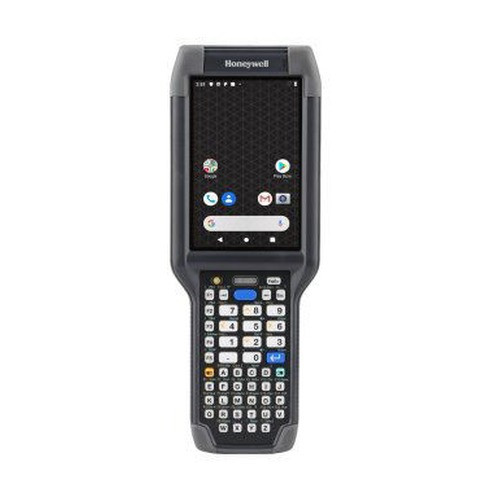

Honeywell CK67-X0N-5ES1E0G Handheld Mobile Computer
The Honeywell CK67-X0N-5ES1E0G is a rugged handheld mobile computer built for warehouse, manufacturing, and field service operations where drop events and environmental exposure are routine. It combines a Qualcomm QCS4490 octa-core 2.0 GHz processor with 6 GB RAM to handle real-time inventory lookups, barcode scanning workflows, and cloud synchronization without lag. The non-GMS Android operating system simplifies enterprise deployments by eliminating Google Play dependencies and reducing attack surface in locked-down logistics environments.
Key Features
- WiFi 6E (802.11 a/b/g/n/ac/ax): Provides roughly three times the bandwidth of WiFi 5 — meaningful in high-density warehouse networks where dozens of devices compete for airtime. Reduces latency for real-time data sync and barcode lookups from enterprise backend systems.
- EX20 Near/Far Imager: Captures 1D and 2D barcodes from 15 cm (near field) to 15.2 meters (far field). Eliminates repetitive repositioning to scan labels on high shelves or pallets — a concrete productivity gain in large-scale picking and receiving operations.
- IP65/IP68 Sealed Construction: IP65 handles dust and low-pressure water jets; IP68 extends protection to temporary immersion. Critical for cold storage, outdoor loading docks, and wash-down environments where splashes and condensation are inevitable.
- 2.4 m (8 ft) Drop Specification: Rated for repeated drops from shoulder height onto concrete. Reduces replacement costs and unplanned downtime in high-traffic logistics facilities where devices are frequently dropped or knocked off carts.
- 7000 mAh Lithium-Ion Battery: Sustains continuous use across a full shift without mid-day charging. Eliminates battery-swap delays in high-velocity picking and packing workflows where a powered-down device stalls the entire operation.
- Bluetooth 5.2: Pairs reliably with ring scanners, headsets, and mobile printers within 100+ meters. Enables flexible hand-free scanning configurations and wireless peripheral management without tethered cables.
- 4.3-inch Display (800 x 480) with Gorilla Glass 7: Sufficient resolution for barcode entry screens and inventory status displays. Gorilla Glass 7 resists scratches from repeated handling and protective glove contact — extends legible display life in abusive environments.
- Operating Temperature Range -20°C to 50°C (-4°F to 122°F): Handles cold storage facilities, unheated shipping areas, and sun-exposed outdoor loading zones without thermal shutdown. Wide range eliminates regional deployment constraints.
- microSD Expansion: Offloads large barcode databases, offline route files, and device images without compromising built-in storage. Useful for facilities with poor network connectivity or compliance requirements for local data retention.
Deployment Context
The CK67-X0N-5ES1E0G targets high-velocity logistics environments — distribution centers, fulfillment operations, and manufacturing floor material handling. The combination of WiFi 6E and EX20 imaging eliminates two common bottlenecks: network congestion during peak picking hours and operator repositioning when scanning distant barcodes. Non-GMS Android reduces IT support burden in locked-down enterprise networks. IP65/IP68 and the 2.4 m drop rating lower total cost of ownership by handling real-world abuse without early replacement cycles.
For field service deployments (utilities, field inspection, outdoor maintenance), the extended operating temperature and wide barcode read range accommodate vehicles, job sites, and weather exposure. The 7000 mAh battery runtime supports teams working remote routes without charging access.
Integration Considerations
The CK67-X0N-5ES1E0G pairs with standard enterprise mobility management (EMM) platforms via Android APIs. Bluetooth 5.2 peripherals (Honeywell ring scanners, printers, headsets) require straightforward pairing — no specialized drivers. WiFi 6E requires access points capable of 802.11ax operation; legacy 802.11ac networks will fall back to WiFi 5 speeds. The EX20 imager supports standard barcode libraries (Code 128, UPC, QR, etc.) without firmware customization.
Frequently Asked Questions
Q: Does the CK67-X0N-5ES1E0G support NFC or mobile payment protocols?
A: No — the device includes Bluetooth 5.2 and WiFi 6E only. NFC is not listed in the specifications. If asset tagging or RFID workflows are required, confirm compatibility with an RFID-capable scanner in the same Honeywell CK-series.
Q: What is the screen refresh rate and is it suitable for real-time video preview?
A: The 4.3-inch display is specified at 800 x 480 resolution but does not list a dedicated frame rate specification. It is designed for enterprise mobility workflows (barcode entry, inventory status, route mapping) rather than video streaming or real-time camera preview.
Q: Can the CK67-X0N-5ES1E0G operate in areas with explosive atmospheres or hazardous materials?
A: No hazardous location (ATEX, UL/FM Class I Division) certifications are mentioned in the specifications. This device is rated for standard industrial environments only — not for explosive-gas or combustible-dust areas.
Q: How does WiFi 6E compare to WiFi 5 for warehouse operations, and do I need new access points?
A: WiFi 6E delivers higher throughput and lower latency, which improves barcode lookup times and cloud synchronization in congested networks. However, it requires WiFi 6E-capable access points. If your facility currently runs WiFi 5 (802.11ac), the CK67-X0N-5ES1E0G will fall back to WiFi 5 performance — upgrading APs is needed to realize the full benefit.
Q: Is the 2.4 m drop specification tested on all surface types?
A: Drop ratings are typically tested on concrete. Performance on softer surfaces (rubber, sand) will differ. Repeated drops at or near the limit may eventually cause cumulative internal damage, so the 2.4 m spec should not be treated as unlimited drop tolerance.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell CK67-X0N-5ES1E0G hits a practical sweet spot for enterprise logistics. The Qualcomm QCS4490 processor delivers sufficient performance for warehouse management system (WMS) lookups and real-time inventory sync without burning through battery life. WiFi 6E is a tangible advantage if you're operating in a high-density network — multiple devices scanning simultaneously no longer create noticeable latency spikes. The EX20 imager's 15.2 m read range eliminates the repositioning friction that slows down picking operations; operators can scan labels from across an aisle without walking to shelves.
Technical Highlights:
- WiFi 6E 802.11ax: Roughly 3× the bandwidth of 802.11ac (WiFi 5) — measurable in high-volume facilities with 50+ connected devices competing on the same access point. Reduces barcode lookup latency from 2–3 seconds to sub-500 ms in congested networks.
- EX20 Near/Far Imager (15 cm to 15.2 m): Eliminates the need to move labels into readable distance. Single-pass scanning of high-shelf and pallet-level barcodes cuts operator repositioning time — meaningful productivity gain when processing thousands of items per shift.
- IP65/IP68 + 2.4 m Drop: The dual IP rating handles both wet wash-down areas (IP68 temporary immersion) and everyday dust/splash (IP65). The 2.4 m drop tolerance absorbs normal handling abuse without triggering warranty claims. Combined, these reduce TCO in multi-year deployments.
- 7000 mAh Battery: Full-shift runtime without mid-day charging. In high-velocity operations, a dead device during peak hours is a workflow blocker — this capacity sidesteps that problem.
Deployment Considerations:
- WiFi 6E requires access points capable of 802.11ax. If your facility runs legacy WiFi 5 (802.11ac) infrastructure, you'll get standard WiFi 5 performance, not the full 6E benefit. Plan AP upgrades if bandwidth bottlenecks exist today.
- Non-GMS Android simplifies enterprise lockdown (no Play Store dependencies) but may complicate app sourcing if you rely on Google Play — confirm your WMS and third-party barcode apps support sideload or enterprise app stores.
- The 2.4 m drop spec is tested on concrete. Repeated impacts at the threshold, or drops onto harder surfaces, may eventually cause internal damage. Don't treat it as unlimited resilience.
The CK67-X0N-5ES1E0G is best suited for warehouse and fulfillment operations where barcode scanning velocity, network density, and drop tolerance are measurable cost drivers. It's less appropriate for outdoor field service roles requiring GPS, advanced imaging, or harsh-weather certification — those point to ruggedized smartphones or specialized field computers.
