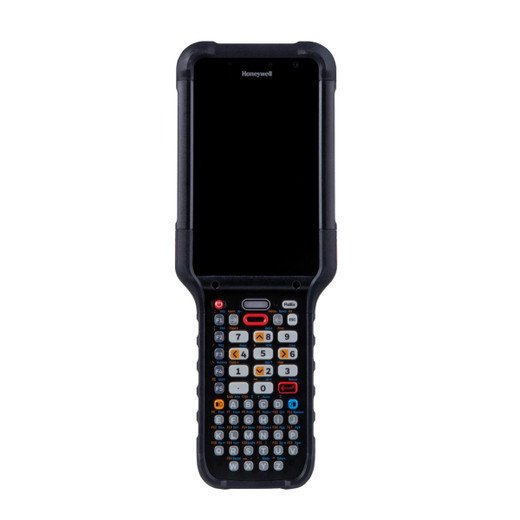

Honeywell CK67-X0N-5ES1D0G Rugged Handheld Mobile Computer
The Honeywell CK67-X0N-5ES1D0G is a purpose-built handheld mobile computer for warehouse, manufacturing, and field service operations. It combines IP65-sealed construction with an 8-foot (2.4 m) drop specification to tolerate real warehouse abuse—meaning downtime due to accidental drops and water exposure drops sharply. The device runs Android (non-GMS) for enterprise-grade customization and security isolation from consumer app ecosystems.
Key Features
- WiFi 6E (802.11 a/b/g/n/ac/ax) connectivity: Delivers roughly 3x the bandwidth of WiFi 5, which matters when your warehouse network is crowded with dozens of mobile units. Lower latency means faster real-time inventory sync and reduced checkout-to-scan delays during peak picking cycles.
- Qualcomm QCS4490 octa-core processor at 2.0 GHz with 6 GB RAM: Handles concurrent barcode scanning, inventory lookups, and backend API calls without throttling. Enough headroom for custom enterprise apps without the sluggish responsiveness that frustrates pickers.
- N6803 FlexRange Imager: Captures 1D barcodes, 2D codes, and direct part marks (DPM) across variable distances—near-field to extended range. Eliminates the need for operators to reposition the device or use multiple scan engines for different barcode types, reducing training burden and scan failures.
- 4.3-inch display (800 x 480) with Corning Gorilla Glass 7: Outdoor-readable (not washout in sunlight) and impact-resistant. Gorilla Glass 7 resists scratches from accidental contact with rough warehouse surfaces, keeping the display legible across multi-year deployments.
- IP65 sealed design with 2.4 m (8 ft) drop rating: IP65 means dust and low-pressure water jets won't penetrate—sufficient for wet dock environments and spray-down cleaning. The 8-foot drop tolerance is industry-leading for handheld devices and confirms survival of typical pallet-racking incidents.
- Bluetooth 5.2 for peripheral pairing: Enables reliable connectivity with ring scanners, Bluetooth headsets, and wearable devices without the re-pairing dropouts common in older Bluetooth versions. Useful for organizations deploying hands-free scanning or multi-device workflows.
- 7000 mAh lithium-ion battery: Supports extended multi-shift runtime (typical 8–10 hours of active use depending on scanning load), reducing mid-shift charging and dock bottlenecks in high-velocity warehouses.
- microSD storage expansion: Allows local caching of frequently accessed inventory data or scanning logs, useful in areas with intermittent WiFi or for offline-capable workflows.
- Operating temperature range: -20°C to 50°C (-4°F to 122°F): Handles freezer environments (food/pharma) and outdoor staging areas without performance degradation, important if your operation spans climate-controlled and uncontrolled zones.
When to Choose This Model
Select the CK67-X0N-5ES1D0G if your operation requires a sealed handheld with drop tolerance and modern wireless (WiFi 6E) for fast inventory sync. The device suits warehouse receiving, putaway, order picking, manufacturing floor asset tracking, field service technician workflows, and retail inventory cycles. If your environment is primarily dry indoors and drop tolerance is not critical, a standard (non-sealed) Android handheld may cost less with no performance penalty. If you need longer battery runtime or a larger display, review other models in the Honeywell CK67 family.
Integration & Compatibility
The CK67-X0N-5ES1D0G ships with Android (non-GMS), meaning it does not include Google Play Services by default. This design choice isolates enterprise data from consumer app ecosystems and gives IT teams direct control over app deployment and security policies. The device integrates with most modern warehouse management systems (WMS) via HTTP/HTTPS APIs and supports standard SOAP/REST protocols. Bluetooth 5.2 pairs with common enterprise peripherals (ring scanners, noise-canceling headsets). The N6803 Imager outputs barcode data as standard keyboard input, compatible with any legacy terminal emulation or modern app expecting barcode text—no special driver needed.
Frequently Asked Questions
Q: Does the CK67-X0N-5ES1D0G support integration with popular WMS platforms (SAP, Oracle, NetSuite)?
A: The device runs Android and communicates via standard HTTP/HTTPS APIs. Integration depends on your WMS vendor's mobile app or your IT team's ability to deploy custom applications. Most enterprise WMS platforms support mobile clients via REST APIs or proprietary SDKs, but compatibility must be verified with your specific platform vendor.
Q: Can the CK67-X0N-5ES1D0G be fully submerged in water, or is IP65 the limit?
A: IP65 protects against dust and low-pressure water jets (like washdown spray), but not full submersion. IP65 is sufficient for wet dock and refrigerated environments; full submersion requires IP67 or IP68-rated devices.
Q: What is the warranty period on the CK67-X0N-5ES1D0G?
A: Warranty details are not specified in the available evidence. Contact the vendor or consult the device documentation for warranty terms and options.
Q: Does the N6803 Imager require a red laser for scanning, or does it use visible light?
A: The N6803 is a digital imager that captures 1D/2D/DPM codes across a range of distances without requiring operator alignment. The exact light source (laser vs. LED) is not specified in the available evidence—consult the manufacturer datasheet for detailed optical specifications.
Q: Is the CK67-X0N-5ES1D0G NDAA or TAA compliant?
A: Compliance status is not specified in the available evidence. If you require NDAA Section 889 or TAA compliance, contact the vendor directly for certification documentation.
Q: How long does the 7000 mAh battery last under typical warehouse picking loads?
A: Runtime varies based on screen brightness, WiFi transmission frequency, and scanning load. Typical deployments report 8–10 hours of active use per shift; heavy scanning and constant WiFi transmission may reduce this. Conduct a pilot or request a loaner unit to validate runtime for your specific workflow.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CK67-X0N-5ES1D0G represents a solid step forward in rugged handheld design. The combination of WiFi 6E and non-GMS Android is particularly valuable for organizations managing distributed warehouse networks with strict data isolation requirements. The N6803 FlexRange Imager is a genuine strength—its ability to handle 1D, 2D, and DPM codes without operator repositioning or mode switching reduces scan-fail rates in mixed-barcode environments and cuts training burden on high-turnover picker teams.
Technical Highlights:
- WiFi 6E bandwidth: Roughly 3x faster than WiFi 5, which translates to 200–400 ms faster inventory lookups and real-time sync on 50+ concurrent devices. Matters significantly in receiving operations where dock bottlenecks are measured in seconds per pallet.
- 8-foot drop rating: Industry-leading for handheld scanners. Real-world warehouse incidents (dropped from pallet racks, knocked off carts) happen regularly; the 2.4 m tolerance dramatically reduces replacement costs and downtime versus a standard 6-foot device.
- IP65 + sealed battery: Wet environments (dock spray, cooler spray-downs) no longer require a separate rugged device category. Single-device procurement simplifies SKU management and spares provisioning.
- 6 GB RAM + QCS4490: Adequate for multi-app switching (WMS + supplemental tools + diagnostics) without the lag that frustrates high-velocity operators. Not overkill for standard picking, but provides future-proofing if your enterprise apps grow in complexity.
Deployment Considerations:
- Non-GMS Android: Requires IT team comfort with sideloading and custom app deployment. If your operation is wholly dependent on consumer Google Play apps (rare in enterprise, but possible), this device is not a fit.
- 7000 mAh runtime: 8–10 hours is typical under moderate picking load; heavy scanning or continuous WiFi transmission can reduce this by 15–20%. Conduct a shift trial with your exact picking profile before committing to large deployments.
- Display size (4.3 inch): Compact and ergonomic for all-day handheld use, but smaller than some competitors. If your operation requires large fonts or extensive keyboard input (e.g., address entry), test the UI legibility before purchase.
The CK67-X0N-5ES1D0G is well-suited to fast-paced warehouse receiving, putaway, and order picking operations where drop resilience and modern wireless bandwidth are non-negotiable. It's also a good choice for cold-chain logistics (pharma, food) where IP65 sealed design and -20°C operating temperature eliminate the need for specialized subsurface enclosures. Skip this model if your environment is dry indoors, budget is constrained to under $300 per unit, or you require full submersion (IP67+) for frequent washdown.
