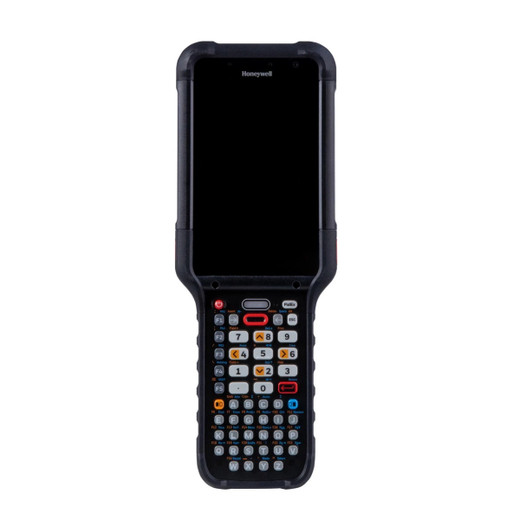

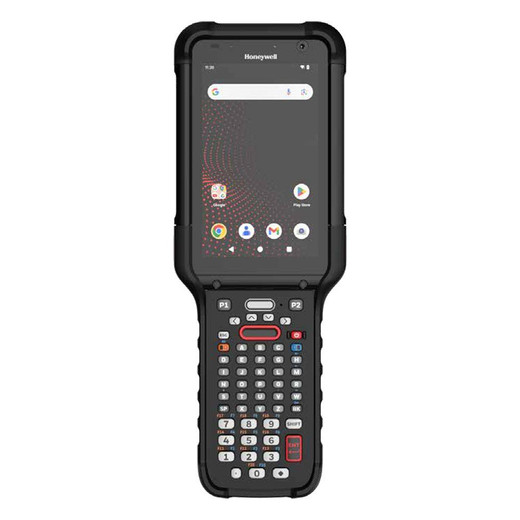

Honeywell CK67-X1N-5ES1D0G Rugged Handheld Mobile Computer
The Honeywell CK67-X1N-5ES1D0G is a purpose-built handheld mobile computer for warehouse, manufacturing, and field logistics operations where durability and real-time connectivity matter. This device prioritizes industrial resilience—2.4 m (8 ft) drop tolerance, IP65 sealing, extended temperature operation—while delivering modern processing power and multi-band cellular connectivity that enterprise mobility workflows require.
Key Features
- Qualcomm QCS4490 Octa-Core 2.0 GHz Processor: Paired with 6 GB RAM and expandable microSD storage, the CK67 handles data-intensive transactions—inventory lookups, order fulfillment, real-time synchronization—without lag or freezing, even when multiple apps run simultaneously in high-traffic warehouse environments.
- N6803 FlexRange Imager: Captures 1D and 2D barcodes across near-to-extended ranges, plus direct part marking (DPM). Flexibility across symbology types and distances cuts failed scans that create re-work and labor waste in fast-paced picking and receiving operations.
- 5G Sub-6 GHz and mmWave Cellular: Enables faster data uploads and cloud synchronization than legacy LTE—critical when moving between outdoor loading docks, cold storage, and warehouse floors. Handoff between 5G and WiFi is automatic, minimizing connection drops during mobile movement.
- WiFi 6E (802.11 a/b/g/n/ac/ax): Three times the bandwidth of WiFi 5 with lower latency. Reduces congestion in dense multi-access-point environments and supports high-frequency band (6 GHz) where available, improving throughput for real-time inventory updates and cloud data uploads.
- 2.4 m (8 ft) Drop Specification: Meets rugged industrial durability without glass failures. Routine drops from hand height or from worker vests won't trigger warranty claims or device replacement cycles. Exceeds consumer and light-duty industrial standards.
- IP65 Sealed Design: Direct spray, dust, and moisture ingress are blocked—relevant for washdown environments, outdoor dock operations, and high-humidity cold storage. Not fully submersible (IP65 ≠ full immersion), so avoid prolonged water exposure.
- 4.3-Inch Display with Corning Gorilla Glass 7: Protected against scratches from constant glove contact and accidental impact. Outdoor visibility is adequate for shaded warehouses; bright sunlight may require sun shield accessories.
- 7000 mAh Lithium-Ion Battery: Supports full multi-shift operation (typically 8–12 hours depending on processor load and cellular usage). Eliminates mid-shift battery swaps that interrupt productivity and require battery management logistics.
- Bluetooth 5.2: Pairs with external barcode scanners, Bluetooth headsets, and wearable devices. Range of 240 m (open space) is more than adequate for warehouse floor coverage; indoor range depends on wall density and RF interference.
- Android Non-GMS on Honeywell ScanPal Platform: Decoupled from Google Mobile Services—relevant for HIPAA, GDPR, and defense contractors requiring air-gapped or non-Google compliance. Honeywell ScanPal manages device management, app distribution, and security patching independently.
- Operating Temperature Range -20 to 50°C (-4 to 122°F): Supports outdoor winter operations and cold-storage environments where consumer devices fail. Storage tolerance extends to -30 to 70°C, allowing overnight parking in unheated loading bays.
Integration & Compatibility
The CK67-X1N-5ES1D0G pairs with enterprise mobility management (EMM) platforms and warehouse management systems (WMS) via standard Android APIs and ONVIF integration where applicable. IT teams can deploy apps via Honeywell ScanPal's managed app distribution. 5G and WiFi 6E both integrate with existing enterprise networks without specialized gateway requirements—standard network provisioning applies. External barcode scanners and peripherals connect via Bluetooth 5.2, compatible with third-party Bluetooth-enabled devices across warehouse automation ecosystems.
Frequently Asked Questions
Q: Can the CK67-X1N-5ES1D0G operate in cold storage environments below freezing?
A: Yes. The operating temperature range extends to -20°C (-4°F), which covers most cold-storage and freezer applications. Storage temperature tolerance is even wider (-30 to 70°C), so the device can be powered down and stored overnight in unheated environments without damage.
Q: What barcode symbologies does the N6803 FlexRange Imager support?
A: The imager captures 1D linear codes (Code 39, Code 128, UPC, etc.), 2D matrix codes (QR, Data Matrix, PDF417), and direct part marking (DPM). Flexibility across near, mid, and extended ranges reduces scanning failures in variable warehouse conditions.
Q: Is the CK67-X1N-5ES1D0G submersible or fully waterproof?
A: No. The IP65 rating means the device resists direct spray and dust, but it is not rated for submersion. Avoid prolonged water exposure or dunking. For fully submerged operations, IP67 or IP68 rated devices are required.
Q: How long does the 7000 mAh battery last during a full shift?
A: Typical runtime is 8–12 hours depending on processor load, display brightness, and cellular/WiFi usage patterns. Actual duration varies by deployment—continuous scanning and 5G uploads consume more power than periodic data submission. Testing in your specific environment is recommended.
Q: Does the CK67 work with third-party warehouse management systems (WMS)?
A: Yes. Standard Android APIs, HTTP/HTTPS connectivity, and Bluetooth integration enable compatibility with mainstream WMS platforms. Integration requires API documentation from your WMS vendor; IT teams handle provisioning and app deployment via Honeywell ScanPal.
Q: What is the warranty coverage on the CK67-X1N-5ES1D0G?
A: Warranty details are available from the manufacturer; confirm coverage scope with your authorized distributor or Honeywell directly, as terms vary by region and purchase channel.
The Honeywell CK67-X1N-5ES1D0G brings modern connectivity and rugged industrial build to a market where device failures still drive unplanned downtime. The combination of 5G Sub-6 GHz/mmWave and WiFi 6E means real-time inventory visibility—no more waiting for batch uploads at dock. The N6803 FlexRange Imager cuts scanning friction across variable symbology types and distances, a real labor multiplier in high-volume picking operations.
Technical Highlights:
- Qualcomm QCS4490 + 6 GB RAM: Handles parallel WMS queries, barcode scanning, and cloud sync without stalling—especially important in dense multi-user warehouse networks where processor bottlenecks burn labor hours waiting for app response.
- IP65 + 2.4 m Drop Tolerance: Meets rugged industrial durability where consumer devices (IP54, 1.2 m drop) cost money in accelerated replacement cycles. Cold-storage operation (-20 to 50°C) extends deployment into outdoor and freezer environments without thermal derating.
- 5G/WiFi 6E Dual-Stack: Automatic handoff between cellular and local networks eliminates manual switching or connection loss when workers move between outdoor loading docks and indoor warehouse floors—a major friction point in last-mile and cross-dock operations.
Deployment Considerations:
- IP65 is splash and dust resistant, not submersion rated—this matters for washdown environments or dock spray scenarios. Don't assume full waterproofing.
- Android non-GMS architecture requires IT teams to validate WMS and third-party app compatibility upfront. Standard APIs work; proprietary Google Play dependencies don't.
- 7000 mAh battery supports 8–12 hour runtime in typical scanning-heavy workflows, but power-intensive apps (video streaming, continuous GPS) will shorten shift coverage. Test your specific workload.
The CK67 is purpose-built for cold-chain logistics, high-volume warehouse operations, and outdoor field service where ruggedness and cellular redundancy prevent operational breaks. If your workflow spans climate-controlled and freezer zones with intermittent outdoor dock operations, the extended temperature range and dual-band cellular justify the investment over lighter consumer-grade alternatives.
