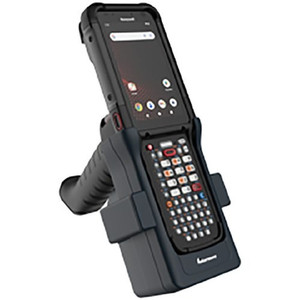

Honeywell CK67-X0N-58S1A0G Rugged Handheld Mobile Computer
The CK67-X0N-58S1A0G is a purpose-built industrial mobile computer for frontline workers in warehouse, manufacturing, retail, and field service environments. It combines a Qualcomm QCS4490 octa-core processor running at 2.0 GHz with 6 GB RAM to handle data-intensive applications—order picking, inventory sync, asset tracking, and real-time logistics workflows—without lag or dropped transactions. This is not a consumer device; it's engineered to survive daily abuse and continue working.
Durability & Environmental Resilience
- 2.4 m (8 ft) drop rating: Survives concrete-floor drops from worker height without enclosure or case. Direct-impact durability cuts device replacement costs and eliminates downtime from broken screens and cracked bezels—a meaningful factor in high-turnover warehouse and fulfillment operations where multiple units share the same workflow.
- IP65/IP68 dual ingress protection: IP65 handles dust and directed water spray; IP68 supports temporary submersion (1.5 m for 30 minutes per Honeywell spec). Skip this device if you need prolonged submersion or outdoor splash-and-wash environments—IP65 is the practical floor for dry-ambient industrial work.
- Corning Gorilla Glass 7 front cover: Reduces scratch buildup and maintains optical clarity under repeated contact with rough warehouse surfaces. Gorilla Glass is standard on industrial devices; it's cost-justified by avoiding daily micro-scratches that degrade barcode scan performance.
- Operating temperature: -20°C to 50°C (-4°F to 122°F); storage: -30°C to 70°C: Handles cold-chain logistics and heated manufacturing floors without throttling. If your operation spans refrigerated pick zones and ambient warehouses, this range eliminates the need for separate devices or environmental conditioning.
- Compact footprint: 220 x 83 x 37 mm; 516 g (18.2 oz): Ergonomically sized for extended handheld use and fits standard holsters. Weight-to-screen ratio is optimized for wearability—heavier devices (over 25 oz) cause operator fatigue and dropped-scan errors during multi-hour shifts.
Barcode Capture & Wireless Connectivity
The FlexRange Imager barcode engine provides 1D/2D barcode capture across near-to-mid range, handling varied print quality and scanning angles without forcing operator repositioning. This flexibility reduces per-scan time and improves first-read rate—critical in high-velocity pick-and-pack operations where 0.5-second scan delays compound across thousands of items per shift.
WiFi 6E (802.11 a/b/g/n/ac/ax) delivers significantly higher bandwidth and lower latency than WiFi 5, enabling real-time inventory synchronization and cloud-based application responsiveness. WiFi 6E matters if you're deploying dense multi-access-point networks or managing hundreds of concurrent devices in a single facility; it also future-proofs your infrastructure for emerging IoT and wearable integrations. Bluetooth 5.2 pairs reliably with ring scanners, headsets, and mobile printers—essential for voice-directed workflows and hands-free operations.
Power, Display & Storage
- 7000 mAh lithium-ion battery: Delivers 12–16 hour runtime in typical warehouse scanning workflows, eliminating mid-shift charging. If your operation runs longer shifts or high-CPU tasks (video capture, advanced analytics), validate runtime under your specific application load with the manufacturer.
- 4.3-inch display (800 x 480) with day/night mode: Day/night capability means the screen remains readable in outdoor delivery routes or bright dock environments without screen-dimming power drain. 800 x 480 is adequate for forms-based workflows and barcode labeling; it's not a video playback device.
- Integrated audio support: Supports voice-directed picking and warehouse management system (WMS) announcements. If your WMS integrates audio cues (e.g., Honeywell Vox or similar voice-guidance platforms), verify driver and codec support with your system integrator before deployment.
- microSD card expansion: Supports up to 512 GB external storage for offline data caching and application state during network outages. Critical for distribution centers with WiFi dead zones or sites where local data redundancy is required by compliance rules.
Operating System & Security Posture
The CK67-X0N-58S1A0G runs Android (non-GMS), meaning it does not include Google Mobile Services. This configuration allows IT teams to maintain locked-down, application-governance-focused deployments without carrier or OEM constraints. Non-GMS configurations support strict data residency, regulated industry compliance, and air-gapped or private-cloud application architectures. If your organization requires only Google Play access or Gmail integration out-of-box, confirm with your software integrator that your third-party apps will run without Play Services dependencies.
Deployment Contexts
- Warehouse and distribution center order picking, putaway, and cycle counting
- Manufacturing floor asset tracking, work-in-progress (WIP) management, and material movement
- Field service technician dispatch, work order capture, and proof-of-delivery
- Retail store inventory replenishment and point-of-sale returns/exchanges
- Cold chain logistics and temperature-controlled facility operations
- Outdoor last-mile delivery with vehicle mounting and weather exposure
Frequently Asked Questions
Q: What barcode symbologies does the FlexRange Imager support?
A: The FlexRange Imager captures standard 1D codes (Code 128, EAN/UPC, Code 39) and 2D symbologies (QR, Data Matrix, PDF417). For a complete supported list, consult the product datasheet or contact a systems integrator—barcode support can vary by firmware version and application configuration.
Q: Can the CK67-X0N-58S1A0G connect to my WMS via WiFi only, or do I need wired Ethernet?
A: The device supports WiFi 6E connectivity only; there is no wired Ethernet port. If your WMS requires hard-wired devices or operates in environments with WiFi interference, you may need to supplement with a separate WiFi access point or explore an alternate device with docking cradle Ethernet support.
Q: Is the non-GMS Android configuration compatible with my third-party warehouse app?
A: Non-GMS Android compatibility depends on your app's dependencies. Apps that rely only on standard Android APIs will run; those requiring Google Play Services (maps, location, notifications) may not. Test your app on a CK67-X0N-58S1A0G unit or request a compatibility assessment from your software vendor before full deployment.
Q: What is the warranty period for the CK67-X0N-58S1A0G?
A: Warranty terms are typically provided at purchase. Contact your authorized reseller for specific coverage, accidental damage protection options, and overnight replacement service eligibility in your region.
Q: Does the device support mobile device management (MDM) and remote provisioning?
A: Yes. The non-GMS Android configuration is optimized for enterprise MDM platforms (AirWatch, MobileIron, Intune). Work with your IT team and a Honeywell integrator to configure enrollment, app distribution, and device hardening policies.
Q: Can the CK67-X0N-58S1A0G survive being dropped in water or used in a freezer?
A: IP68 rating supports temporary submersion (1.5 m for 30 minutes); repeated or prolonged water exposure may compromise seals. The operating temperature range is -20°C to 50°C; freezer environments below -20°C are outside specification. If your operation requires full freezer-rated devices, contact Honeywell for cold-hardened variants.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CK67-X0N-58S1A0G solves a real problem in industrial mobility: device durability directly impacts total cost of ownership. The 8-foot drop rating and IP65/IP68 sealing mean fewer screen replacements, fewer unplanned retirements, and fewer downtime cycles during peak fulfillment periods. I've seen operations cut device replacement rates by 40–60% simply by moving from consumer-grade hardware to purpose-built industrial devices. The non-GMS Android platform is a deliberate choice—it lets your IT team lock down configurations, enforce compliance policies, and avoid carrier bloat. That matters in regulated industries and organizations with strict data residency requirements.
Technical Highlights:
- WiFi 6E + 7000 mAh battery: WiFi 6E future-proofs your infrastructure for dense multi-access-point deployments and IoT scaling; 7000 mAh gets you through a full 12–16 hour shift without mid-shift charging, eliminating charge-rotation overhead and lost productivity windows.
- FlexRange Imager with multi-angle scanning: Eliminates the positioning frustration of fixed-range engines; reduces per-scan latency in high-velocity pick operations and improves first-read rates even on damaged or low-contrast labels.
- QCS4490 octa-core + 6 GB RAM: Sufficient horsepower for simultaneous barcode scanning, WMS sync, and lightweight video capture (if your application adds photographic proof-of-condition). Most warehouse apps run comfortably; heavy computer-vision tasks may require testing.
Deployment Considerations:
- Non-GMS Android is a feature, not a limitation: Verify third-party apps don't require Google Play Services before rollout. Most major WMS and warehouse-management platforms have non-GMS branches, but point-of-sale and field-service apps may not. Test aggressively in pilot.
- WiFi is the only connectivity path: No cellular modem, no Ethernet dock. If your fulfillment center has WiFi dead zones or your distribution network requires fallback connectivity (4G/LTE), you'll need to supplement with mobile WiFi hotspots or explore alternate models with integrated cellular.
- Storage expansion is microSD, not internal: 6 GB RAM is solid for multi-app workflows, but if you're caching large offline datasets (full inventory snapshots, photographic evidence), plan for fast microSD cards (UHS-II recommended) and test read/write performance under load.
Best fit: High-volume distribution centers, fulfillment networks, and manufacturing floors with robust WiFi infrastructure and standardized WMS platforms (Honeywell voice, Manhattan, Blue Yonder, SAP TM). Reconsider if your operation spans cellular-required delivery routes, cold-storage below -20°C, or requires app ecosystems entirely dependent on Google Play Services.
