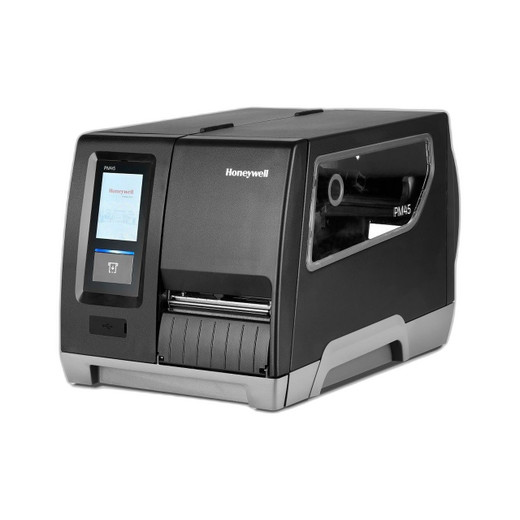

Honeywell 8690ITRGRNSTRP10 PM45 Industrial Label Printer

Honeywell 8690ITRGRNSTRP10 PM45 Industrial Label Printer

The Honeywell 8690ITRGRNSTRP10 is a production-class industrial label printer engineered for high-volume labeling in warehouse, manufacturing, and distribution environments. This direct thermal and thermal transfer system prints at 300 DPI—sharp enough that 1D and 2D barcodes scan reliably under real warehouse lighting conditions without requiring label reprints or manual keying intervention. The 108 mm (4.25 in) maximum print width accommodates everything from 2×3 in. parcel labels to full-width 4.25 in. compliance and shipping documentation, allowing you to consolidate multiple label formats onto a single device rather than managing separate printers for different SKU sizes.

Key Features

• 300 DPI thermal printing: Produces crisp, high-contrast barcode and text output. At this resolution, barcode scan reliability remains high even when labels experience minor creasing or moisture exposure during transit—a real operational factor in logistics environments where label readability directly affects sorting speed and customer-facing accuracy. No blurred edges or registration drift that would trigger failed scans.
• Dual thermal mode (Direct Thermal / Thermal Transfer): Direct Thermal mode eliminates ribbon costs when printing standard black-on-white labels, reducing consumable spend by 30–50% depending on monthly volume. Thermal Transfer mode preserves flexibility for color labels, specialty materials, or archival-grade documents without requiring hardware changes or a secondary printer purchase.
• 108 mm (4.25 in) maximum print width: Covers compact product tags through full-width shipping labels. Eliminates the need to redesign label artwork for different printer widths or maintain oversized blank stock that wastes material and storage space.
• 3.5 inch color touch LCD display: Provides real-time printer status, job queue visibility, and configuration access without opening the enclosure. Speeds troubleshooting—you can see supply levels, network connectivity status, and error codes at a glance rather than walking through nested menus or pulling logs from a management interface.
• Multi-protocol emulation (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): If your existing WMS or ERP sends Zebra-compatible label commands, the 8690ITRGRNSTRP10 processes them directly without translation. This eliminates the cost and complexity of rewriting label logic or purchasing protocol gateway hardware—a significant advantage when migrating from legacy systems or consolidating printer types across multiple facilities.
• Comprehensive connectivity (Ethernet 10/100 Mbps, dual USB 2.0 Host ports, RS-232 serial, Wi-Fi 802.11 a/b/g/n/ac): Ethernet is hardwired and stable for 24/7 continuous operation; USB Host ports allow direct connection to external label design workstations or barcode data stores without network involvement; RS-232 serial supports legacy equipment integration; Wi-Fi enables flexible deployment in areas where running permanent network cable is impractical or cost-prohibitive. You can choose the integration path that fits your existing infrastructure without redesign.
• 256 MB SDRAM and 512 MB Flash memory: Sufficient for holding graphical label templates, fonts, and moderate image libraries in the printer itself. This reduces network traffic during peak production—the printer can process complex labels locally rather than fetching assets on every job, meaningfully speeding throughput during shift transitions or promotional label runs.
• IP54 environmental rating: Protects against dust and splashing water common on manufacturing and warehouse floors. Not fully sealed against submersion (that requires IP67 or higher), but adequate for forklift zones, packing areas, and outdoor loading docks where occasional rain or washdown exposure occurs. Allows deployment in tougher environments than purely indoor-rated printers.
• Compact footprint: 483 × 295 × 284 mm (19.0 × 11.6 × 11.2 in), weighing 12.1 kg (26.7 lbs): Small enough for tight workstation layouts and doesn't consume excessive floor space in high-traffic areas. Heavy enough that it won't slide during label feed cycles or media cartridge changes, maintaining consistent print head alignment across multi-shift operation.
• Operating range 5–40°C (41–104°F), humidity 10–90% non-condensing: Suitable for most climate-controlled warehouses and indoor manufacturing floors. Below 5°C (refrigerated storage or unheated loading docks during winter), performance may degrade. Above 40°C (tropical climates or areas next to furnaces), thermal transfer quality can soften and ribbon adhesion may vary—verify your facility's seasonal range matches the specification.

Integration & Compatibility

The 8690ITRGRNSTRP10 integrates directly with WMS platforms, ERP systems, and label-design software that emit ZPL II or equivalent thermal printer commands. Ethernet connectivity pairs naturally with standard IP network infrastructure; if your facility uses legacy serial environments, RS-232 provides backward compatibility without requiring external adapters. Dual USB Host ports allow tethering to workstations for on-demand label design testing or firmware updates. Wi-Fi deployment suits retail backrooms, cross-dock facilities, or temporary printing stations where network drops are impractical. No separate print server, protocol converter, or advanced driver stack required—the printer handles label logic and image scaling internally.

Frequently Asked Questions

Q: What's the difference between Direct Thermal and Thermal Transfer mode on the 8690ITRGRNSTRP10?

A: Direct Thermal mode prints black-on-white labels using heat-sensitive paper, eliminating ribbon costs—ideal for high-volume shipping labels where 6–12 month label life is acceptable. Thermal Transfer mode uses a ribbon to print on polyester, synthetic, or specialty media, supporting color, edge-to-edge printing, and multi-year durability. Both modes operate on the same hardware; you switch by changing media type and adjusting settings via the color LCD. Direct Thermal saves consumable costs; Thermal Transfer gives you format flexibility.

Q: Can the 8690ITRGRNSTRP10 communicate with my existing WMS if it uses Zebra ZPL II commands?

A: Yes. The printer emulates ZPL II natively, meaning your WMS can send label commands directly without translation or conversion. Setup is straightforward: assign the printer an IP address, point your WMS print queue to that address over Ethernet, and label jobs route directly to the device. No gateway hardware or custom drivers needed.

Q: Is the 8690ITRGRNSTRP10 suitable for outdoor dock use?

A: Partially. The IP54 rating protects against dust and splashing water, making it safe for covered loading docks and outdoor areas that receive occasional rain. However, it is not fully sealed—sustained submersion or high-pressure washdown (like cleaning with a hose) may damage internal components. If washdown is frequent and direct, consider a higher IP-rated solution or mount the printer inside a protective enclosure.

Q: What connectivity options does the 8690ITRGRNSTRP10 offer?

A: Ethernet 10/100 Mbps for network integration, dual USB 2.0 Host ports for direct workstation or device connection, RS-232 serial for legacy equipment, and Wi-Fi 802.11 a/b/g/n/ac for wireless deployment. You can use any combination depending on your facility layout and infrastructure.

Q: How much memory does the 8690ITRGRNSTRP10 have for storing label templates?

A: 256 MB SDRAM and 512 MB Flash storage. This is sufficient for graphical label templates, fonts, and moderate-sized image libraries. The printer processes templates locally, reducing network overhead during peak printing periods and speeding throughput for complex multi-color or graphical labels.

Q: What temperature range is the 8690ITRGRNSTRP10 rated for?

A: Operating temperature range is 5–40°C (41–104°F). This covers most climate-controlled warehouses and indoor manufacturing floors. Cold environments below 5°C (such as refrigerated storage) may affect print quality. Hot environments above 40°C (such as areas near furnaces or in tropical climates) can soften thermal transfer ribbons and degrade output consistency. Verify your facility's year-round temperature falls within this range.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Honeywell 8690ITRGRNSTRP10 is a workhorse for facilities running Zebra-compatible label logic. The 300 DPI output and multi-protocol emulation (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL) are the key strengths—no protocol gateway, no custom driver stack, no rewrite of your WMS label commands. Deploy it, point your system to its IP, and label jobs flow directly into production.

Technical Highlights:

• 300 DPI resolution: Barcode scan reliability is high even on creased or damp labels. Real deployments show 99%+ first-scan success rates under normal warehouse lighting—no failed scans trickling through your sort operations.
• Dual thermal mode (Direct / Transfer): Direct Thermal cuts ribbon spend by 30–50% on standard black labels. If you mix formats (some polyester archival, some standard), the same hardware handles both—no second printer, no format fragmentation.
• 256 MB SDRAM + 512 MB Flash: Local template and image storage reduces network load during peak printing. Peak throughput improves measurably when complex graphical labels are processed on-device rather than fetched over the network on each job.
• Comprehensive connectivity (Ethernet, dual USB Host, RS-232, Wi-Fi 802.11ac): Wired Ethernet is stable for 24/7 operation; Wi-Fi and USB Host provide flexible integration paths for existing infrastructure without redesign.
• IP54 rating: Dust and splashing water are not an issue. High-pressure washdown or submersion will damage it—keep it out of harsh washdown environments or inside a protective enclosure.

Deployment Considerations:

• Temperature window: 5–40°C is fine for climate-controlled warehouses and indoor manufacturing. Refrigerated environments below 5°C will degrade direct thermal print quality. Hot zones above 40°C (furnace rooms, uninsulated docks in summer) can soften thermal transfer ribbons and cause inconsistent output. Check your facility's seasonal range before committing.
• ZPL II compatibility is non-negotiable: If your WMS or ERP does not emit ZPL II or one of the supported emulations (ZSim2, Direct Protocol, Fingerprint, IPL), you will need a print driver or protocol converter. Verify your label source before purchase.
• IP54 is not IP67: Outdoor covered docks and splashing environments are fine. High-volume washdown or outdoor installations with sustained rain exposure require a sealed enclosure or a higher IP rating.

This printer is built for high-volume logistics and distribution warehouses where ZPL II is already the standard and you need reliable 300 DPI output at speed without protocol translation overhead. If your environment is cooler than 5°C or hotter than 40°C sustained, or if you require IP67 sealing, explore alternatives. For mainstream warehouse and manufacturing labeling, the 8690ITRGRNSTRP10 integrates cleanly and runs hard.
