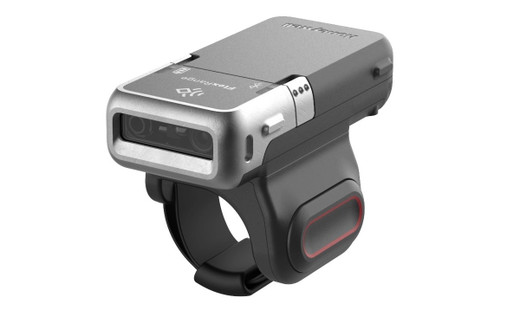

Honeywell 8675I505-RHGS Wearable Ring Scanner 1D/2D
The Honeywell 8675I505-RHGS is a wearable ring barcode scanner engineered for warehouse, manufacturing, and logistics environments where continuous scanning must not compete with material handling. Unlike traditional handheld scanners, this compact 1D/2D device mounts directly to the finger, enabling simultaneous barcode capture and hands-on work—picking items, placing totes, stacking pallets, or managing conveyor flow without setting down a handheld device. For high-frequency picking and receiving operations where scan volume routinely exceeds 1,000 transactions per shift, that dual-task capability directly reduces per-transaction dwell time and labor cost.
Key Features
- 1D/2D Barcode Decoding: Captures both linear (UPC, Code128, EAN) and 2D symbologies (QR, Data Matrix, PDF417). The aggressive decode algorithm prioritizes recovery of damaged, faded, and poorly printed labels—a critical factor in high-volume warehouses where barcode degradation from repeated material handling is normal. Field rejection rates drop significantly compared to single-line readers.
- Bluetooth 5.0 Wireless Connectivity: Pairs with handheld computers, mobile devices, POS terminals, and enterprise data capture systems without cables. Bluetooth range is typical (30–100 meters in open space; reduced through walls and metal structure). This wireless freedom means operators move seamlessly between picking zones, receiving bays, and multiple workstations without tethering. If your infrastructure is 100% WiFi-based (WLAN terminals), you will need a Bluetooth-to-WiFi gateway to bridge the 8675I505-RHGS—factor this into total cost of ownership during planning.
- IP55 Environmental Protection: Dust and moisture ingress protection means the scanner operates reliably on warehouse floors, manufacturing lines, and receiving docks where humidity, dust, and minor splashing are routine. IP55 does not provide submersion protection—if you operate in fully wet environments (spray-wash facilities, outdoor docks with direct rain), verify IP67-rated alternatives within your approved vendor portfolio before committing.
- 380 mAh Rechargeable Battery—~8-Hour Shift Runtime: Battery capacity is intentionally matched to a standard shift. Continuous operation under typical scanning load runs approximately 8 hours. Extended 12+ hour shifts without mid-shift charging will require a charging dock deployed in break areas or a hot-swap strategy with multiple batteries. Plan charging infrastructure into your deployment.
- Ultra-Lightweight Design—28 Grams (1.0 oz): Weight directly impacts finger and hand fatigue during extended wear. At 28 grams, the ring minimizes discomfort during picking shifts exceeding 1,000 scans, reducing operator breaks and maintaining productivity. Heavier wearables (50g+) accelerate fatigue and reduce adoption in high-frequency environments.

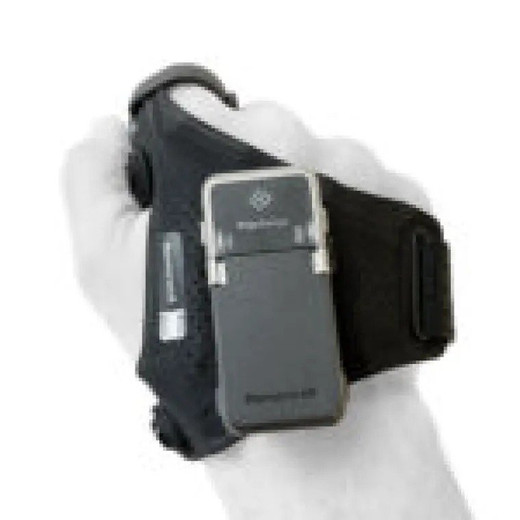

- Hands-Free Finger-Mounted Form Factor: The wearable ring design keeps both hands free for material handling while scanning. This eliminates the workflow friction of alternating between handheld scanner and material handling—a throughput multiplier in receiving, picking, sorting, and manufacturing floor work-order verification.
Deployment Fit & Considerations
The 8675I505-RHGS excels in high-frequency, mobile scanning: warehouse picking and putaway, manufacturing floor work-order and asset tracking, retail and parcel receiving, sortation operations, and field service barcode verification. It is not suited for stationary scanning environments (checkout lanes, mailroom document capture) where a handheld or stationary scanner is more ergonomic or accurate.
Bluetooth pairing requires compatible host devices or gateways within your existing data capture infrastructure. Confirm your barcode scanners network architecture supports Bluetooth client mode. For WiFi-only deployments, budget for a Bluetooth-to-WiFi bridge device and additional configuration during implementation.
Integration & Compatibility
The 8675I505-RHGS pairs with any Bluetooth-enabled host: industrial mobile computers (Zebra, Honeywell, Symbol), handheld terminals, smartphone/tablet platforms, and enterprise data capture middleware. Confirm pairing protocols and device management policies with your IT or enterprise mobility team before deployment. No USB or 9-pin connectivity is provided—wireless pairing is the sole interface.
Frequently Asked Questions
Q: How is the 8675I505-RHGS charged?
A: The device has a rechargeable 380 mAh battery. Charging mechanism (dock, USB, proprietary connector) was not detailed in available evidence. Contact the manufacturer or authorized reseller for charging dock specifications and cable details.
Q: Does the 8675I505-RHGS work in wet or outdoor environments?
A: IP55 protection provides dust and moisture resistance suitable for warehouse floors and covered docks. It does not offer submersion (IP67+) capability. If your operation involves spray-washing, direct outdoor rain exposure, or water immersion, evaluate IP67-rated alternatives.
Q: What is the Bluetooth range of the 8675I505-RHGS?
A: Bluetooth 5.0 provides typical range of 30–100 meters in open space. Range decreases through walls, metal structures, and dense material handling equipment. Site-specific testing is recommended before full deployment.
Q: Can the 8675I505-RHGS replace my handheld scanners entirely?
A: The 8675I505-RHGS is optimized for mobile, high-frequency scanning where hands must remain free. Stationary scanning tasks (checkout, detailed label inspection) may still require a handheld or fixed-mount scanner. Hybrid deployments are common.
Q: How do I integrate the 8675I505-RHGS with my existing WMS or data capture system?
A: Bluetooth pairing connects the device to a host computer or terminal. Your host device communicates with your WMS/ERP via standard network protocols (WiFi, cellular, Ethernet). Confirm Bluetooth support in your mobile computer or terminal before purchasing.
Q: What is the warranty on the 8675I505-RHGS?
A: Warranty terms were not included in available product evidence. Contact the manufacturer or authorized reseller for warranty period, coverage details, and support options.
The 8675I505-RHGS is a purpose-built wearable for high-frequency mobile scanning. Its 28-gram weight and hands-free ring form factor directly address operator fatigue in picking operations exceeding 1,000 scans per shift—a real problem in large fulfillment centers where cycle time per pick is measured in seconds. The IP55 rating handles typical warehouse grime, and Bluetooth 5.0 provides adequate range for most receiving and picking floors. However, the integration gotcha is often overlooked: wireless pairing requires a compatible host device with Bluetooth client support. If you are operating entirely WiFi-based handheld terminals (common in some legacy WMS deployments), budget for a Bluetooth-to-WiFi gateway bridge.
Technical Highlights:
- 380 mAh Battery / ~8-Hour Runtime: Matches a standard shift without mid-shift charging, but 12+ hour operations require charging docks or hot-swap batteries. Plan charging infrastructure during site design.
- 1D/2D Aggressive Decode: The barcode engine prioritizes recovery of damaged and faded labels—critical in high-volume warehouses where label wear is inevitable. Single-line readers fail frequently on degraded codes.
- Bluetooth 5.0 (30–100m range): Provides mobility freedom across receiving bays and picking zones without cables, but range degrades significantly through metal racking and dense inventory. Site survey recommended.
- IP55 Dust/Moisture Protection: Handles warehouse floors, but does not support submersion. Spray-wash or outdoor dock environments require IP67 or higher.
Deployment Considerations:
- Bluetooth pairing is mandatory—confirm your mobile computer fleet supports Bluetooth client mode before purchase. WiFi-only systems need a bridge gateway.
- 8-hour battery runtime is sufficient for standard shifts; extended shifts require docking or battery swaps. Factor charging stations into your facility design.
- IP55 is appropriate for indoor warehouses and covered receiving areas. Skip this model for outdoor docks, spray-wash bays, or fully wet environments.
The 8675I505-RHGS is the right fit for high-velocity picking and receiving operations where operator hands must remain free for material handling and scan volume justifies the infrastructure investment (Bluetooth host devices, charging docks). It is not a handheld scanner replacement—it is a specialized tool for mobile, hands-free scanning at scale. In a 200-operator fulfillment center running 800+ picks per operator per day, this device reduces per-pick dwell time and fatigue-related downtime measurably. For lower-volume receiving or stationary checkout, a traditional handheld scanner remains more economical.
