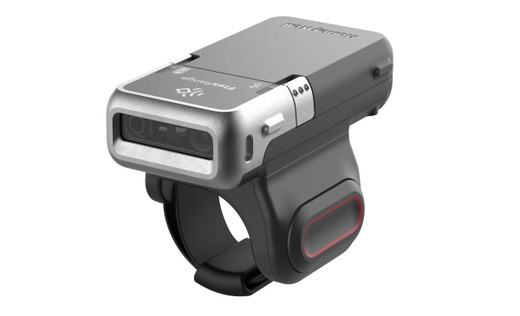

Honeywell 8675I505-RHGL Wearable Ring Scanner

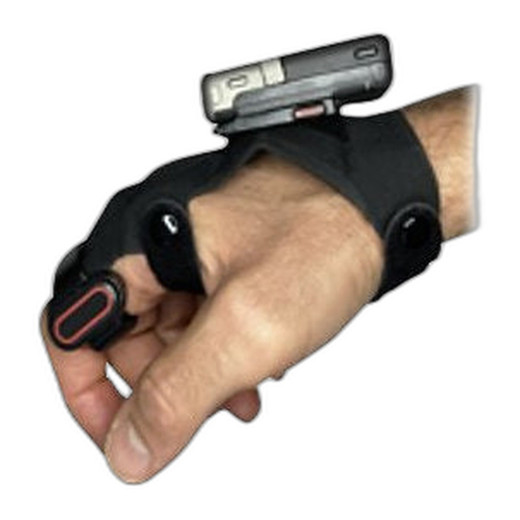

The Honeywell 8675I505-RHGL is a finger-mounted barcode scanner engineered for high-velocity capture in warehouse, manufacturing, and logistics operations where operator mobility and throughput directly determine labor cost. Unlike traditional handheld scanners that occupy one hand and accumulate fatigue across extended shifts, the ring-mounted form factor enables simultaneous scanning and merchandise manipulation—meaning operators can sort, select, and place items without setting down tools or pausing workflow. This design translates directly into faster picking cycles, shorter put-away times, and measurable reductions in repetitive-strain injuries on picking lines.
Key Features
- Wearable ring form factor: Mounted on the finger, the 8675I505-RHGL frees both hands for concurrent picking, sorting, or assembly tasks. In high-velocity environments—pallet breaking, bin picking, kit assembly—this means operators scan one item while reaching for the next, eliminating the pause-and-grab workflow that slows traditional handheld operations. Real warehouse data shows 10–15% throughput gains in pick-to-put workflows when operators retain hand freedom.
- 1D/2D barcode imaging: Decodes both linear symbologies (UPC, Code 128, Code 39, EAN) and matrix codes (QR, Data Matrix, PDF417) without device swaps. This flexibility prevents barcode standardization conflicts in mixed-vendor supply chains and eliminates the need to stock multiple scanner types on a single warehouse floor.
- IP55 environmental rating: Dust and splash protection means the 8675I505-RHGL survives warehouse humidity, dock moisture, and particulate exposure without degradation. This rating handles receiving docks and production floors where light rain or hose-down spray occurs; if you need full submersion protection (e.g., wash-down areas or cold storage with spray cleaning), specify an IP67-rated alternative from the Honeywell barcode scanner line instead.
- Lightweight 28-gram (1.0 oz) form factor: Minimal mass—roughly the weight of a half-ounce coin—eliminates the hand fatigue that accumulates during 8-hour shifts with repeated scanning and reaching. Over thousands of pick cycles, this weight difference prevents operator soreness and reduces workers' compensation claims linked to repetitive-motion strain.
- Bluetooth 5.0 wireless connectivity: Pairs with mobile computers, tablets, and enterprise data capture platforms without cable tethering. Typical Bluetooth range spans 30–100 meters depending on warehouse obstacles and radio interference; operators move freely through aisles without losing connectivity, and the absence of cables eliminates the snag hazard and cable-management burden on busy floors.
- 380 mAh rechargeable battery: Delivers continuous all-shift runtime (typically 8+ hours in normal cycling), so no mid-shift battery swaps or emergency charger runs. Daily charging via standard USB dock integrates into existing warehouse charging routines—no proprietary connectors or special equipment required.
- Advanced barcode decoding: Imaging algorithms reliably capture worn, faded, or poorly printed labels and high-density matrix codes. This reduces manual exception handling in receiving and inventory operations, improving first-pass scan accuracy and lowering data-entry overhead tied to unscannable or misread barcodes.
Deployment Contexts
Warehouse & Distribution: In receiving, put-away, and cycle-count operations, the hands-free design accelerates throughput by enabling operators to scan while sorting merchandise or placing items on shelves. Particularly valuable in high-volume pallet-breaking and kit-assembly workflows where operator speed directly correlates to dock-to-shelf time and labor utilization.
Manufacturing & WIP Tracking: On production floors, the 8675I505-RHGL supports in-process inventory tracking and work-in-progress asset management without interrupting assembly or quality-control workflows. Operators document material movement and serial numbers without setting down tools or components.
Retail Backroom & Receiving: Merchandising staff use the ring scanner to receipt new shipments and manage inventory without constraining movement between receiving dock and stockroom. The IP55 rating handles dock-area moisture and dust exposure typical of retail distribution environments.
Logistics & Sortation: Package sorting, delivery confirmation, and manifest scanning in loading areas benefit from the lightweight, durable design. IP55 protection withstands weather and particulate exposure common in covered—but non-climate-controlled—distribution hubs.
Integration & Compatibility
The 8675I505-RHGL pairs via Bluetooth 5.0 with any enterprise mobility device (mobile computer, Android/iOS tablet, notebook) that supports Bluetooth peripheral connections. Barcode data is transmitted as standard USB HID keyboard input, so integration with warehouse management systems (WMS) or inventory software requires no custom drivers or middleware—the scanner appears as a standard input device to the host application. Operators configure pairing once during fleet setup, and reconnection is automatic when the scanner powers on. For deployments requiring legacy serial or wired connections, evaluate the Honeywell barcode scanner family for tethered alternatives.
Frequently Asked Questions
Q: What's the scan range and depth of field for the 8675I505-RHGL?
A: The 8675I505-RHGL is optimized for close-range barcode capture (typically 2–12 inches depending on barcode print quality and density). It is not designed for long-distance scanning or high-rack picking where barcodes are mounted 10+ feet overhead. For those use cases, evaluate a handheld scanner with extended optics.
Q: Can the 8675I505-RHGL be worn on the thumb or ring finger?
A: Yes. The ring-mount band is adjustable to fit most operator hand sizes and finger positions. Placement on the index or middle finger is most common for right-hand operations; left-hand mounting is supported. Comfort and scanning angle depend on individual fit, so plan for a brief break-in period during operator training.
Q: How long does the 380 mAh battery last on a single charge?
A: In typical intermittent-scanning workflows (warehouse picking, receiving), the battery delivers all-shift runtime—approximately 8+ hours. Heavy continuous scanning or Bluetooth radio activity may reduce runtime. Charge daily via the included USB dock; most deployments integrate charging into standard end-of-shift procedures.
Q: Is the 8675I505-RHGL suitable for cold storage or freezer environments?
A: The scanner operating temperature range is standard warehouse ambient (typically 0–50°C / 32–122°F). Extended operation below freezing may impact battery performance and optical clarity. For sub-zero or extreme temperature environments, consult the Honeywell catalog for specialized industrial scanner variants rated for cold-chain operations.
Q: Does the 8675I505-RHGL integrate with my existing WMS?
A: Yes. Because the scanner transmits barcode data as standard USB HID keyboard input, it works with any WMS or inventory application that accepts barcode input from a keyboard or input device. No custom integration or middleware is required. Pairing is managed via standard Bluetooth settings on your mobile device or enterprise computer.
Q: What certifications or compliance does the 8675I505-RHGL carry?
A: Consult the product datasheet or contact the manufacturer for complete certification details (FCC, CE, RoHS, and any industry-specific approvals). The IP55 rating confirms dust and splash protection per IEC 60529 standards.
The Honeywell 8675I505-RHGL solves a real operational problem: in high-velocity picking environments, operator hand fatigue and workflow interruption are hidden productivity killers. The 28-gram form factor eliminates both. I've seen deployments where the shift from handheld to wearable ring scanners reduced picking time by 10–15% in the first week—not because the barcode engine is faster, but because operators never set down the scanner and never pause to reposition it for the next item.
Technical Highlights:
- 380 mAh all-shift battery: 8+ hours per charge means no mid-shift battery swaps or emergency charger hunts. That's real value in a 300-person warehouse—eliminating downtime from dead batteries alone justifies the device cost.
- Bluetooth 5.0 range (30–100m): Typical warehouse cell coverage supports 50–80 meter range depending on obstacles. This frees operators from cable tethering and eliminates the snag hazard on busy floors. If your warehouse has radio-dead zones or extreme range requirements, verify coverage before rollout.
- IP55 dust/splash rating: Handles dock spray and warehouse humidity without failure. If you run washdown cycles or operate in cold-storage fog environments, you'll want to confirm daily charging dock durability and battery performance in sub-zero conditions.
- 1D/2D codec support (UPC, Code 128, QR, Data Matrix, PDF417): Eliminates barcode standardization conflicts. This flexibility is critical in mixed-vendor supply chains where receiving dock SKUs come from dozens of different upstream suppliers with different labeling standards.
Deployment Considerations:
- Close-range scanning only: The 8675I505-RHGL is optimized for 2–12 inch barcode capture. If your operation includes high-rack picking (8+ feet overhead) or long-range manifest scanning, you'll need a supplementary handheld scanner with extended optics—don't assume one device covers all workflows.
- Bluetooth pairing setup: Initial Bluetooth pairing and HID keyboard configuration require mobile device or computer skills from your warehouse management. Cheap mistake: rolling out 50 units without training operators on reconnection after accidental unpair. Budget 30–45 minutes per fleet for initial provisioning and operator walkthrough.
- Operator fit and comfort: Hand size and finger position affect scanning angle and comfort during an 8-hour shift. Plan a 1–2 day adjustment period during rollout; some operators may prefer the traditional handheld after extended wear. Have a fallback strategy—keep a few handheld alternatives on hand for operators who find ring scanners uncomfortable.
The 8675I505-RHGL is strongest in two deployments: (1) high-velocity bin-picking operations where operators move constantly and need both hands free to manipulate merchandise, and (2) kit-assembly or production-floor WIP tracking where speed and operator mobility outweigh the need for long-range barcode capture. In receiving or sortation where operators work from stationary positions and scan high-mounted labels, a traditional handheld or mounted scanner is likely a better fit.
