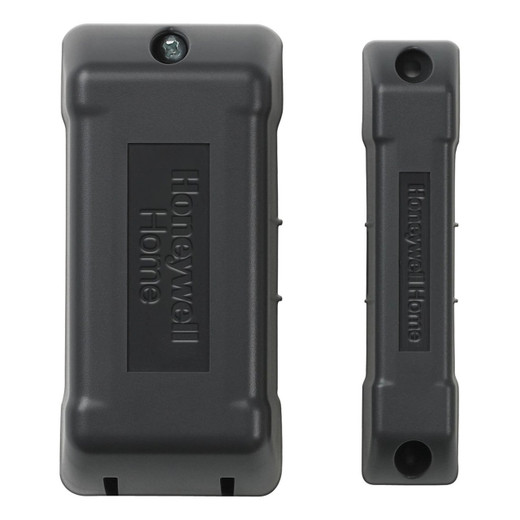

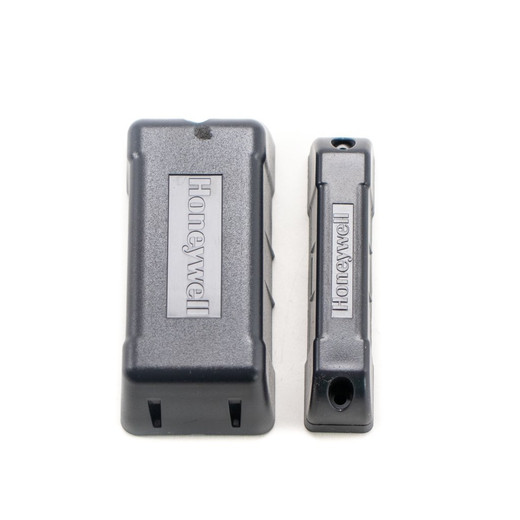

Honeywell 5816OD Wireless Outdoor Door/Window Contact

Honeywell 5816OD Wireless Door and Window Sensor

Overview

The Honeywell 5816OD is a wireless perimeter sensor designed for monitoring entry points on outdoor structures including gates, sheds, and detached buildings. This compact sensor transmits wireless signals to compatible security system receivers, providing reliable detection across extended outdoor deployments where hardwired solutions are impractical or cost-prohibitive. The 5816OD operates reliably across a wide temperature range of -40°F to 150°F (-40°C to 66°C), making it suitable for both extreme cold and high-temperature environments typical of outdoor installations.

Key Features

• Wireless Connectivity: Transmits door/window open/close events wirelessly to compatible security system panels, eliminating the need for cable runs to remote structures
• Outdoor Temperature Range: Rated -40°F to 150°F (-40°C to 66°C) for reliable operation in harsh seasonal and climatic conditions
• Extended Battery Life: Powered by 3V lithium battery with typical life of 3-5 years, minimizing maintenance visits to remote outdoor locations
• Compact Design: Small form factor ideal for discrete installation on gate frames, door jambs, and window frames on detached structures
• Perimeter Protection: Specifically engineered for outdoor gates, sheds, and other detached structures where traditional wired sensors are impractical
• Long-Range Transmission: Wireless architecture allows monitoring of structures distant from the main security panel or control center

Technical Specifications

The Honeywell 5816OD integrates a 3V lithium power source rated for 3-5 years of continuous operation. The wireless sensor classification places it in the sensors and detection device category, with application focus on perimeter monitoring of outdoor structures. Operating temperature specification of -40°F to 150°F ensures functionality in climates ranging from extreme winter conditions to intense summer heat, eliminating the seasonal limitations found in indoor-only sensors.

Installation Considerations

Deploy the 5816OD on exterior-facing entry points where wireless reception to the security panel is confirmed. Position sensors to maximize line-of-sight communication with the receiver, avoiding dense metallic obstructions that may attenuate wireless signals. The extended battery life of 3-5 years reduces service calls to remote outdoor installations, lowering total cost of ownership for multi-property security deployments. Verify compatibility with your security system's wireless frequency and protocol prior to large-scale rollout.

Ted Perry

I've specified the Honeywell 5816OD in several multi-building security deployments across rural and suburban properties. This sensor addresses a real gap: hardwiring perimeter detection to detached structures is expensive and invasive, but wireless coverage of gates and outbuildings is essential for comprehensive property protection. The 5816OD fills that role with proven reliability.

Technical Highlights:

• Wireless Architecture: Eliminates the infrastructure cost and installation labor of running cable to gates and detached structures—a major economic advantage in sprawling properties
• Temperature Resilience: The -40°F to 150°F operating range means the sensor doesn't fail during winter freeze-thaw cycles or summer heat stress, common failure points for temperature-limited perimeter sensors
• Battery Economics: 3-5 year lithium battery life significantly reduces service call frequency compared to alkaline alternatives, which often require replacement every 1-2 years in outdoor environments

Deployment Considerations:

• Confirm wireless signal strength between each sensor location and your panel before finalizing placement—outdoor RF propagation varies with structure materials and terrain
• Schedule battery replacement proactively at the 4-year mark to avoid unexpected sensor failure during critical monitoring windows
• Document sensor locations and battery installation dates in your maintenance log to prevent orphaned sensors from remaining unmonitored after battery depletion

For integrators managing properties with multiple outbuildings or perimeter gates, the Honeywell 5816OD justifies its cost through reduced installation labor and years of unattended operation. Pair it with a robust wireless receiver and you have a straightforward, reliable perimeter extension that your field service team will support long-term.
