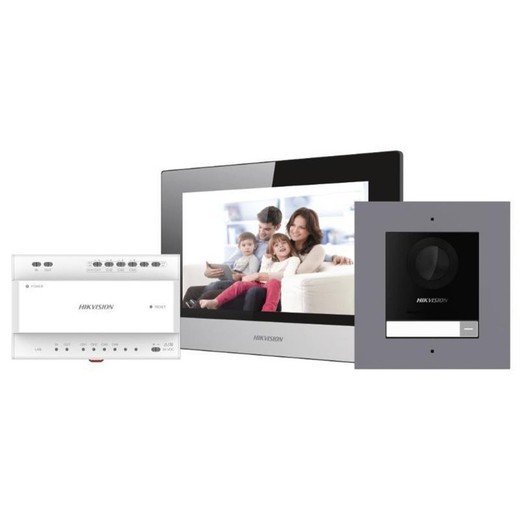

Hikvision DS-KIS702Y-P HD Video Intercom Two-Wire Bundle

Hikvision DS-KIS702Y-P HD Video Intercom Two-Wire Bundle

The Hikvision DS-KIS702Y-P is a professional-grade HD video intercom system engineered for two-wire installation in commercial, industrial, and residential security applications. This complete bundle eliminates separate power and data cabling, reducing both material costs and on-site wiring labor — a significant advantage in retrofit deployments or where existing conduit is already saturated.

Key Features

• 2MP resolution at 1920 × 1080 (30 fps): Delivers sufficient detail for visitor identification and facial recognition preprocessing. The 30 fps framerate ensures smooth motion capture during entry events, which matters when correlating intercom footage with door lock activity.
• 146° horizontal field of view: Wide-angle lens eliminates blind spots at entrance points. Covers a full entry vestibule without multiple camera angles, reducing total hardware footprint and cabling runs.
• True Wide Dynamic Range (WDR): Balances image quality when sunlight and shadow coexist in the same frame — typical at covered entries or loading docks. Prevents washout of visitor faces during midday or backlit conditions.
• Low-light and IR night vision: Supports 24/7 operation. IR supplement mode activates automatically in darkness, maintaining visitor visibility without manual mode switching or separate external lighting.
• H.264 video compression: Industry-standard codec with main stream (1080p/720p at 30 fps) and sub-stream (D1) options. Dual-stream architecture allows high-resolution recording while streaming low-bandwidth feeds to mobile clients or remote monitoring workstations.
• Full-duplex two-way audio with noise suppression and echo cancellation: G.711 U/A compression at 64 Kbps supports clear conversation. Built-in omnidirectional microphone and 80 dB loudspeaker eliminate the need for external audio amplifiers in most installations.
• Two-wire power and network connectivity: Single twisted-pair cable carries both power (AC/DC) and IP data. Requires a compatible distributor (KAD704Y or KAD706Y series) but eliminates parallel runs, simplifying conduit management and reducing installation time by 20–30% on average.
• 7-inch capacitive touch display (1024 × 600): Integrated indoor station with sufficient resolution for live video preview and call management. Capacitive touchscreen is more responsive than resistive alternatives in high-traffic environments.
• Dual relay outputs (30 VDC, 2A max): Directly controls electronic door locks or secondary alarm devices. Two independent relays support fail-secure and fail-safe lock configurations simultaneously on a single unit.
• Four alarm inputs plus two exit buttons and two door contact inputs: Flexible I/O enables integration with external sensors (motion detectors, glass breaks) and door status monitoring. Exit button support simplifies egress control without additional hardware.
• IP 65 protection rating: Sealed against dust and direct water spray. Safe for outdoor mounting under covered areas or in high-humidity industrial environments. Not submersible — skip this model if full tank submersion is a risk.
• Operating temperature range -40°C to 60°C: Rated for extreme climates. Ensures reliable operation in unheated loading bays, cold storage facilities, or sun-exposed outdoor entries without thermal shutdown.

Integration & Compatibility

The DS-KIS702Y-P runs embedded Linux with TCP/IP, SIP, and RTSP protocol support, enabling integration into heterogeneous access control and VMS environments. Six two-wire interface ports (two cascading, four device-facing) allow daisy-chaining up to multiple intercom units on a single loop — useful for multi-door or multi-building sites. Dual-mode network connectivity includes standard two-wire interface and optional Wi-Fi 802.11b/g/n, though Wi-Fi is typically a fallback; the two-wire design is primary.

The system supports microSD card storage up to 128 GB via TF slot, enabling local video buffering for temporary network outages. Motion detection, digital noise reduction, and backlight compensation are all configurable via the embedded web interface.

Deployment Context

Ideal for office building entrances, industrial facilities, residential properties, and multi-unit residential complexes where integrated video intercom and access control reduce hardware clutter. The robust environmental specs and IP 65 rating suit outdoor mounting scenarios, while the dual relay outputs and alarm inputs support direct integration with existing door lock systems and secondary alarm devices. One-touch operation and capacitive interface ensure intuitive use for both residents and administrators.

Frequently Asked Questions

Q: Does the DS-KIS702Y-P require an external power supply?

A: No. Power is delivered via the two-wire interface from a compatible distributor unit (KAD704Y or KAD706Y series). This eliminates the need for separate AC or DC power runs to the intercom location.

Q: What is the maximum distance for the two-wire connection?

A: The two-wire interface is designed for use with Hikvision's distributor series. Consult the specific distributor datasheet for maximum loop length and cable gauge requirements, as these vary by model.

Q: Can the DS-KIS702Y-P integrate with third-party access control systems?

A: Yes. The unit supports standard TCP/IP, RTSP, and SIP protocols, and includes relay outputs and alarm inputs suitable for integration with most commercial access control platforms. Confirm RTSP/SIP compatibility with your VMS or ACS before deployment.

Q: Is the built-in microSD card slot sufficient for continuous video storage?

A: A 128 GB microSD card will store roughly 3–5 days of continuous 1080p video (depending on compression and scene complexity). For longer retention, plan integration with a network video recorder or cloud archival.

Q: What is the IR night vision range?

A: The DS-KIS702Y-P supports IR supplement mode for low-light visibility. Exact IR range is not specified in the evidence; consult the manufacturer datasheet or contact technical support for distance specifications in your deployment environment.

Q: Can the DS-KIS702Y-P be mounted indoors only, or does it support outdoor installation?

A: The IP 65 rating and -40°C to 60°C operating temperature range support outdoor mounting in non-submersible environments (covered areas, vestibules, overhang-protected entries). For fully exposed or wet environments, verify water ingress protection against your specific site conditions.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-KIS702Y-P represents an efficient entry to professional-grade HD video intercom deployment. The two-wire infrastructure approach eliminates the complexity of separate power and data cabling, reducing both material costs and installation labor — a tangible win on retrofit projects or multi-story builds where conduit space is tight. The 146° wide-angle lens captures comprehensive entrance coverage, while True WDR and IR night vision ensure 24/7 operational readiness regardless of lighting conditions.

Technical Highlights:

• H.264 dual-stream compression: Main stream 1080p/30 fps paired with low-bandwidth D1 sub-stream enables both high-resolution local recording and mobile streaming without overwhelming network bandwidth. On 24/7 deployments, H.264 at this resolution consumes roughly 2–3 Mbps per stream — manageable on most site networks.
• 7-inch 1024 × 600 capacitive touch display: Adequate resolution for visitor face identification and call management. Capacitive response is faster than resistive alternatives, reducing user frustration in high-traffic entries where split-second clarity matters.
• Dual relay outputs (30 VDC, 2A max): Two independent relays allow simultaneous control of a fail-secure lock and a secondary device (buzzer, gate motor) without external relay modules — simplifies BOM and reduces wiring.
• Four alarm inputs plus exit buttons: Flexible I/O supports integration of motion sensors, door contacts, and emergency egress buttons on a single unit, consolidating hardware footprint.
• Operating range -40°C to 60°C: Ensures reliability in unheated loading bays, cold storage, and sun-exposed outdoor entries without thermal cycling shutdowns.

Deployment Considerations:

• Two-wire installation reduces cabling complexity, but you must use a compatible distributor (KAD704Y or KAD706Y series). This is non-negotiable — standalone two-wire intercom units do not work without a distributor on the main line.
• IP 65 protection is solid for covered outdoor entries and high-humidity industrial environments, but the unit is not submersible. Avoid full water tank or continuous spray scenarios; if you need full submersion, look for an IP67-rated variant in the same product family.
• H.264 compression is standard; if you require higher compression efficiency or lower bandwidth on very slow networks, consider a higher-tier intercom model supporting H.265 if available in the Hikvision line.
• The 128 GB microSD maximum provides roughly 3–5 days of local buffering. For longer retention or centralized archival, integrate with an NVR or cloud service from day one.

Best suited for multi-unit residential complexes, office building lobbies, and industrial facilities where two-wire simplicity, weather durability, and integrated access control on a single unit justify the distributor dependency. Not ideal for standalone single-entrance deployments where simpler intercom systems suffice, or for fully exposed water-hazard environments requiring IP67 or higher.
