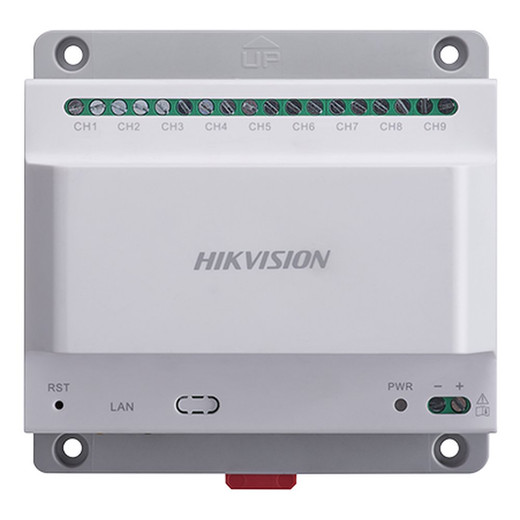

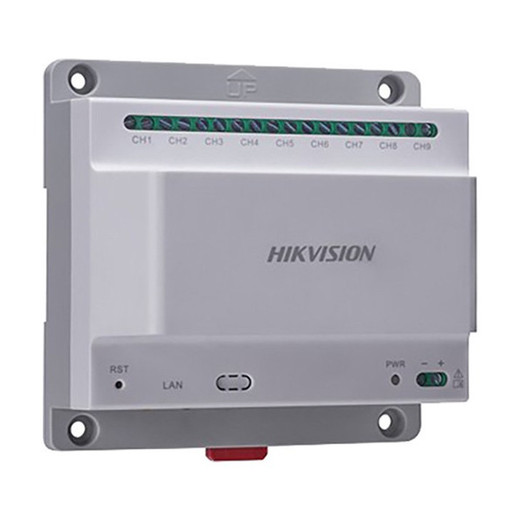

Hikvision DS-KAD709 Two-Wire Video/Audio Distributor
The Hikvision DS-KAD709 is a professional-grade two-wire video and audio distributor engineered to streamline multi-station surveillance and access control installations. This compact yet robust device serves as a central hub for connecting and managing multiple indoor and outdoor door stations, making it an essential component for integrated security systems across commercial, residential, and industrial environments.
Key Features
- Supports up to 5 two-wire stations with maximum of 2 outdoor stations
- 9-channel 2-wire interface for flexible station connectivity
- Single 10/100M self-adaptive network interface with external switch support
- 24 VDC power supply with reliable power distribution
- Industrial-grade design with DIN rail mount support for secure installation
- Compact form factor: 112.2 × 111 × 66 mm
Technical Specifications
- Power Supply: 24 VDC
- Power Consumption: 60 W
- Network Interface: 1 × 10/100M self-adaptive Ethernet
- Two-Wire Channels: 9 channels
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% (non-condensing)
- Installation: DIN rail mount compatible
Applications
Ideal for video intercom systems, access control networks, multi-building facilities, gated communities, commercial office complexes, and integrated security installations requiring centralized two-wire station management. The distributor's robust temperature range makes it suitable for both indoor and outdoor-adjacent installations.
Installation & Integration
The DS-KAD709 integrates seamlessly into Hikvision ecosystems with its self-adaptive network interface, supporting external switches for network expansion. DIN rail mounting enables fast, professional installation in control cabinets and server rooms. The 24 VDC power supply can be integrated with existing access control and surveillance power infrastructure.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KAD709 addresses a critical need in multi-station deployments by consolidating power distribution and network connectivity. Its 9-channel 2-wire interface design allows technicians to manage complex door station networks without requiring multiple intermediary devices. The 60W power budget supports simultaneous operation of multiple stations, though system designers should verify load requirements during planning.
The self-adaptive 10/100M interface ensures compatibility with legacy and modern network infrastructure. Industrial temperature specifications (-10°C to 55°C) make this suitable for partially climate-controlled spaces, though permanent outdoor mounting is not recommended. For integrators, this distributor reduces installation complexity and cable runs compared to point-to-point station connections.
