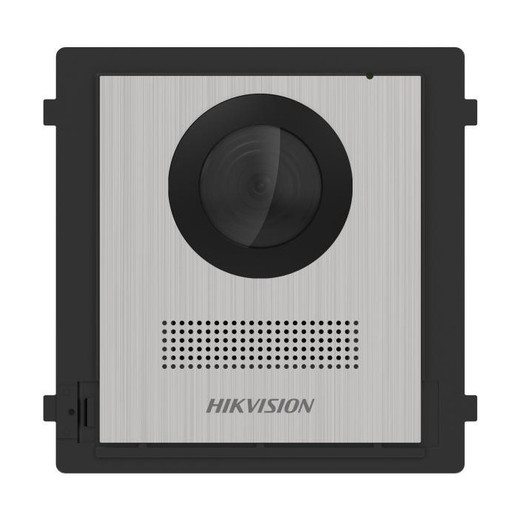

Hikvision DS-KD8003Y-IME2 Two-Wire Fisheye Door Station

Hikvision DS-KD8003Y-IME2 Two-Wire Fisheye Door Station

The Hikvision DS-KD8003Y-IME2 is a two-wire video intercom door station combining a 2MP fisheye camera with integrated IR illumination and bidirectional audio in a compact outdoor enclosure. It's built for access control integrations on apartment buildings, office complexes, gated communities, and multi-tenant properties where simplified cabling and scalable indoor-station linking matter.

Key Features

• 2MP Fisheye Optics (146° horizontal FOV): Eliminates the blind spots common to standard fixed lenses. Covers typical entryway widths without requiring pan-tilt adjustment—critical when you need one camera to monitor both the visitor and package placement simultaneously.
• IR Supplemental Illumination (3-meter range): Covers standard residential and commercial doorway depths, enabling night-shift visitor identification without spilling into adjacent areas or creating false motion alerts from external lighting.
• Wide Dynamic Range (WDR): Balances backlit scenarios (bright exterior behind the visitor) against shadow details on faces. Real-world benefit: usable frames during midday sun without resorting to manual iris or frame averaging that introduces lag.
• Two-Way Audio with Noise Suppression & Echo Cancellation: Reduces ambient HVAC hum and door-slam transients common in apartment hallways, improving intelligibility during short visitor interactions without requiring external audio preprocessing.
• Dual Relay Outputs (30 VDC, 2A per relay): Control two independent locks or trigger secondary systems (gate strike, door opener, alarm). Flexible enough to handle series-wired solenoids or separate strike/maglock circuits without additional relay modules.
• H.264 & H.265 Codec Support: H.265 cuts storage overhead roughly 40–50% compared to H.264 at equivalent quality—meaningful when archiving 24/7 on multi-building deployments. MJPEG available for forensic slow-motion review if needed.
• IP65 Enclosure: Dust and rain ingress blocked; direct spray won't compromise the device. Outdoor-rated for 10–90% humidity and -40°C to 60°C operation, covering most North American and moderate climates without seasonal enclosure swaps.
• Two-Wire Power via Hikvision KAD704Y/KAD706Y Distributors: Minimal draw (4W max) simplifies power budgeting and avoids PoE switch strain in retrofit installations where additional power infrastructure may not exist.
• Scalability (Up to 500 Linked Indoor Stations, 16 Sub Door Stations): Single outdoor door station can integrate with master call panels throughout a large property, reducing installation complexity for multi-unit access control.
• Tamper Detection & Four Alarm Inputs: Hardwired exit buttons and door-contact sensors without additional wiring loops. RS-485 sub-module expansion available for larger configurations.

Integration & Compatibility

The DS-KD8003Y-IME2 (often searched as DS KD8003Y IME2) runs embedded Linux with ONVIF Profile compliance, ensuring future-proof integration with third-party IP camera management platforms and NVR systems without vendor lock-in. Audio compression uses G.711 U/A at 64 Kbps, compatible with standard SIP trunks and traditional intercom backbone protocols. 256 MB RAM and 32 MB ROM support 2000-user capacity and multi-language UI (20+ languages), practical for international deployments or properties with diverse tenant populations.

When to Choose a Different Model

If your facility requires higher resolution for forensic facial recognition or long-distance visitor identification (beyond 10–15 feet), consider a higher-megapixel outdoor IP camera variant in the same Hikvision family paired with a separate audio module. Fisheye geometry excels at coverage but trades some facial detail for wide angles. Also skip this if you need PoE-only power delivery with no two-wire distributor infrastructure already in place—standard PoE variants simplify cabling in greenfield deployments.

Deployment Context

Two-wire architecture shines in retrofit scenarios where adding new power runs to every door station is prohibitive. The compact form factor (100 × 98 × 42 mm, 380g) fits recessed mounting in modern building entrances without protruding trim modifications. Link this to a wall-mounted door entry system or intercom system planning guide for comprehensive tenant communication and lock control on larger properties.

Frequently Asked Questions

Q: What is the maximum distance the DS-KD8003Y-IME2 can see at night?

A: IR illumination reaches 3 meters (roughly 10 feet). Beyond that, ambient light becomes necessary. For larger entry vestibules, combine this with external security lighting or pair it with a secondary wide-angle camera covering the deeper entrance zone.

Q: Can the DS-KD8003Y-IME2 work with non-Hikvision indoor call stations?

A: ONVIF compliance allows integration with third-party video management platforms, but proprietary indoor station linking (the native 500-station architecture) requires Hikvision master panels. Confirm indoor equipment compatibility before procurement if you're mixing vendors.

Q: What's the power consumption, and does it require a separate power supply?

A: Maximum draw is 4W via the KAD704Y or KAD706Y two-wire distributor—no separate power supply needed. This is significantly lower than standard PoE cameras, reducing strain on centralized power delivery infrastructure.

Q: Does the fisheye lens create distortion that makes visitor identification difficult?

A: Yes—fisheye optics introduce barrel distortion, especially at the image edges. The 146° field-of-view prioritizes coverage over magnification. For clear facial detail at distance, this model works best as a wide-area buzzer confirmation; pair it with a higher-resolution fixed-angle camera for positive ID if forensic clarity is required.

Q: Is the DS-KD8003Y-IME2 suitable for below-freezing climates?

A: Operating range extends to -40°C. IP65 rating protects against moisture, but ensure condensation doesn't form inside the enclosure during rapid temperature swings—standard practice is to mount under a small overhang or use condensation-absorbing breathers in very humid northern climates.

Q: Can I control two separate door locks with the dual relays?

A: Yes. Each relay independently switches up to 30 VDC at 2A. Typical setup: one relay strikes the front door, the second controls a gate or secondary building entrance. Confirm your solenoid or maglock current draw doesn't exceed 2A per relay.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-KD8003Y-IME2 addresses a real problem in multi-unit retrofit work: most properties lack the infrastructure to support dozens of PoE cables to distributed door stations. This two-wire model cuts that burden significantly. The 146° fisheye geometry delivers exceptional situational awareness—you're not missing the package sitting to the visitor's left or the hand reaching for the intercom. That coverage-first design is the tradeoff: expect some facial distortion at the edges, especially during zoom-in analysis.

Technical Highlights:

• H.265 codec: Reduces file size 40–50% versus H.264 at equivalent quality. On a 200-unit building recording 24/7, that translates to measurable storage and bandwidth savings within 12 months.
• Dual relay outputs (2A per relay): Flexibility to control independent circuits without stacking relays. Typical install: front strike on relay 1, gate opener on relay 2. No multiplexer boards required.
• 4W max power draw: Two-wire distributors handle dozens of door stations without oversizing central power infrastructure—a real cost advantage in large deployments versus PoE switches that might require 60W+ budgets for equivalent station counts.

Deployment Considerations:

• Fisheye distortion: Facial recognition algorithms may struggle with edge-of-frame subjects. If positive ID is your primary goal, mount this as the perimeter camera and add a narrow-angle fixed lens closer to the call button for detail capture.
• 3-meter IR range: Adequate for standard-depth vestibules (8–10 feet), but recessed entries or large lobbies will require supplemental ambient lighting. Test the actual installation before final placement.
• ONVIF integration: Supported, but the native Hikvision 500-station linking only works with their own indoor master panels. If you're integrating with third-party VMS, you'll rely on ONVIF—confirm your platform's video-over-intercom capabilities before design sign-off.

Best deployed on: Mid-to-large apartment complexes, office parks, or gated communities where simplifying cabling overhead justifies accepting fisheye geometry and where two-wire distributor infrastructure already exists or is being installed alongside the main system.
