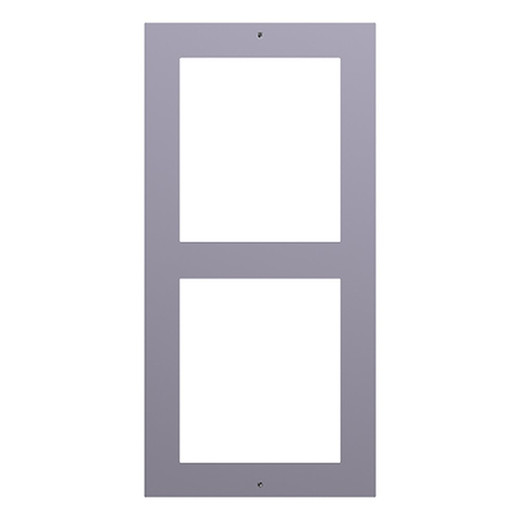

Hikvision DS-KD-ACW2 Modular Door Station Cover
Overview
The DS-KD-ACW2 is a purpose-built accessory cover designed for Hikvision modular door station installations requiring a two-module surface mount configuration. This is the frame and bezel assembly—the structural foundation that holds your video intercom module, card reader, keypad, or button accessory modules in place on a wall or pillar.
Built from aviation-grade aluminum, the DS-KD-ACW2 delivers weathering and corrosion resistance in multi-tenant and outdoor-facing installations without the fragility of plastic housings. It's a straightforward mechanical piece: no electronics, no PoE, no configuration—it's pure mechanical integration.
Key Features
- Two-Module Capacity: Holds two Hikvision modular door station units side by side, allowing you to combine video intercom with card reader, keypad, or call button in a single logical footprint. Reduces the visual clutter of mounting separate units and simplifies wiring pathways on multi-unit residential or office entry points.
- Aviation-Grade Aluminum Construction: Resists corrosion and UV degradation far better than powder-coated steel or ABS plastic, particularly in coastal, humid, or high-salt-spray environments. This translates to longer service life and fewer replacement cycles over a 5–10 year deployment.
- Surface Mount Design: Installs flush to wall or pillar surfaces without recessing into the wall cavity. Simplifies retrofits in existing buildings where drilling cavity frames is impractical or where tenants do not permit structural penetration. Standard fastener mounts accept masonry anchors, wood screws, or concrete expansion bolts depending on substrate.
- Operating Temperature Range -40°C to +55°C (-40°F to +131°F): Handles freeze-thaw cycles in cold climates and sustained heat in outdoor direct-sun installations without material brittleness or warping. Critical for regions with severe seasonal swings or data center rooftop entry points in hot climates.
- Operating Humidity 10% to 95%: Sealed aluminum frame sheds moisture and resists condensation buildup inside the cover cavity. Protects internal module connectors and PCBs from accelerated corrosion or electrical leakage, extending module lifespan in humid or salt-air environments.
- Compact Footprint (219 × 107 × 4 mm): Horizontal profile fits standard single-gang or dual-gang electrical box spacing, minimizing visual intrusion at main entries or common areas. The low 4 mm depth means negligible protrusion from the wall face—a practical advantage in tight corridor or vestibule layouts.
- Complete Installation Package: Includes cover bezel, aluminum frame, mounting fasteners, and connecting hardware. No separate sourcing of brackets or junction kits required; ship date is not delayed by missing components.
- Compatible with Hikvision Modular Ecosystem: Pairs with Hikvision video intercom modules (DS-KD-KNK), card reader modules (DS-KD-KVS), numeric keypads (DS-KD-KPV), and emergency call buttons (DS-KD-KAB). This modularity lets you tailor each installation to access control requirements without maintaining separate cover SKUs.
Integration and Compatibility
The DS-KD-ACW2 is a passive accessory—it requires no wiring, power, or software configuration. It simply provides the structural and environmental envelope for your chosen modular units. Verify compatibility by confirming that the modules you intend to install are listed in your Hikvision modular door station technical documentation; consult the access control components category or your integrator's module matrix to confirm module slot pinouts and electrical requirements.
What's in the Box
- 1× DS-KD-ACW2 aluminum cover and frame assembly
- 1× installation fastener kit (screws and wall anchors for masonry or stud mounting)
- Connecting terminal hardware for module interface
When to Choose a Different Model
If your installation calls for a single-module door station, Hikvision offers single-module variants in the same modular line—refer to your specification sheet or contact your integrator to confirm the single-cover SKU. If you require a flush-mount (recessed) installation instead of surface mount, explore Hikvision's recessed frame variants, which require cavity preparation but deliver a fully integrated aesthetic.
Frequently Asked Questions
Q: Does the DS-KD-ACW2 require power or network connectivity?
A: No. The DS-KD-ACW2 is a passive mechanical cover and frame. Power and network are supplied by the modular intercom or access control units installed within it. The cover itself provides structure and environmental protection only.
Q: What modular units can I install inside the DS-KD-ACW2?
A: Any Hikvision modular door station modules compatible with the two-module surface mount frame—typically video intercom (DS-KD-KNK), card reader (DS-KD-KVS), numeric keypad (DS-KD-KPV), and emergency call button (DS-KD-KAB) units. Consult your Hikvision modular door station product matrix or datasheet to confirm module pinout compatibility.
Q: Can I mount the DS-KD-ACW2 on concrete, stucco, or wood?
A: Yes. The included fastener kit includes anchors for masonry (concrete, stucco) and wood substrates. Verify that your wall substrate can support the weight of the assembled cover and modules (approximately 420 g bare) plus the weight of whatever modules you install.
Q: Is the DS-KD-ACW2 weatherproof for outdoor installation?
A: The aluminum frame and cover are corrosion-resistant and humidity-tolerant (10–95% operating humidity). However, outdoor placement should include a protective overhang or weather hood to minimize direct rain and UV exposure. Verify that the modular units you install carry outdoor IP ratings (typically IP65 or higher) if they will be exposed to weather.
Q: What is the weight and shipping dimension?
A: The bare cover assembly weighs 420 g (14.8 oz). With packaging, total weight is 660 g (23.3 oz). Dimensions are 219 × 107 × 4 mm (8.62" × 4.21" × 0.16") for the cover face.
Q: Does the DS-KD-ACW2 work with non-Hikvision modular units?
A: No. The DS-KD-ACW2 is purpose-designed for Hikvision modular door station modules only. Cross-brand module compatibility is not supported.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KD-ACW2 is a passive mechanical anchor, not a camera or active device—so the usual analytics and feature checklists don't apply here. What matters is material durability, mounting simplicity, and whether your modular modules actually fit. Aviation-grade aluminum in the DS-KD-ACW2 frame resists salt spray and humidity cycles that would corrode standard steel or plastics, extending your module lifespan and reducing field callbacks.
Technical Highlights:
- Aviation-Grade Aluminum Chassis: Outperforms powder-coat or ABS plastic in coastal, humid, or industrial environments—corrosion is the enemy of long-term uptime on door station installations. Aluminum resists both UV and salt-air degradation, cutting replacement frequency over a 5–10 year cycle.
- Operating Humidity Tolerance 10–95%: The sealed frame sheds condensation and blocks moisture ingress to module connectors and internal PCBs. This is not a cosmetic rating—it directly impacts module electrical stability and connector oxidation in humid climates or high-condensation entry vestibules.
- Operating Temperature Range -40°C to +55°C: Freeze-thaw cycles in cold climates and direct-sun heat in outdoor installations won't crack or warp the aluminum. Plastic covers become brittle; this one stays dimensionally stable across extreme seasonal swings.
Deployment Considerations:
- Passive component—verify your modular door station modules carry the PoE/IP ratings you need for your environment. The cover itself adds no intelligence or power overhead.
- Surface mount only—if you need recessed, flush-mount integration into a cavity frame, the DS-KD-ACW2 is not the answer. Confirm your wall prep allows surface fastening and does not require a cavity installation.
- Two-module capacity is fixed—do not force three modules into the frame. Module pinout and electrical bus alignment depend on the exact two-unit configuration. Consult your Hikvision modular door station wiring diagram before ordering.
Deploy the DS-KD-ACW2 in multi-unit residential or commercial entry installations where you need to combine video intercom with access control (card or keypad) in a single weathered aluminum envelope. It's the right choice for retrofits and outdoor-facing entries in coastal or high-humidity regions where material longevity and corrosion resistance directly impact maintenance cost.
